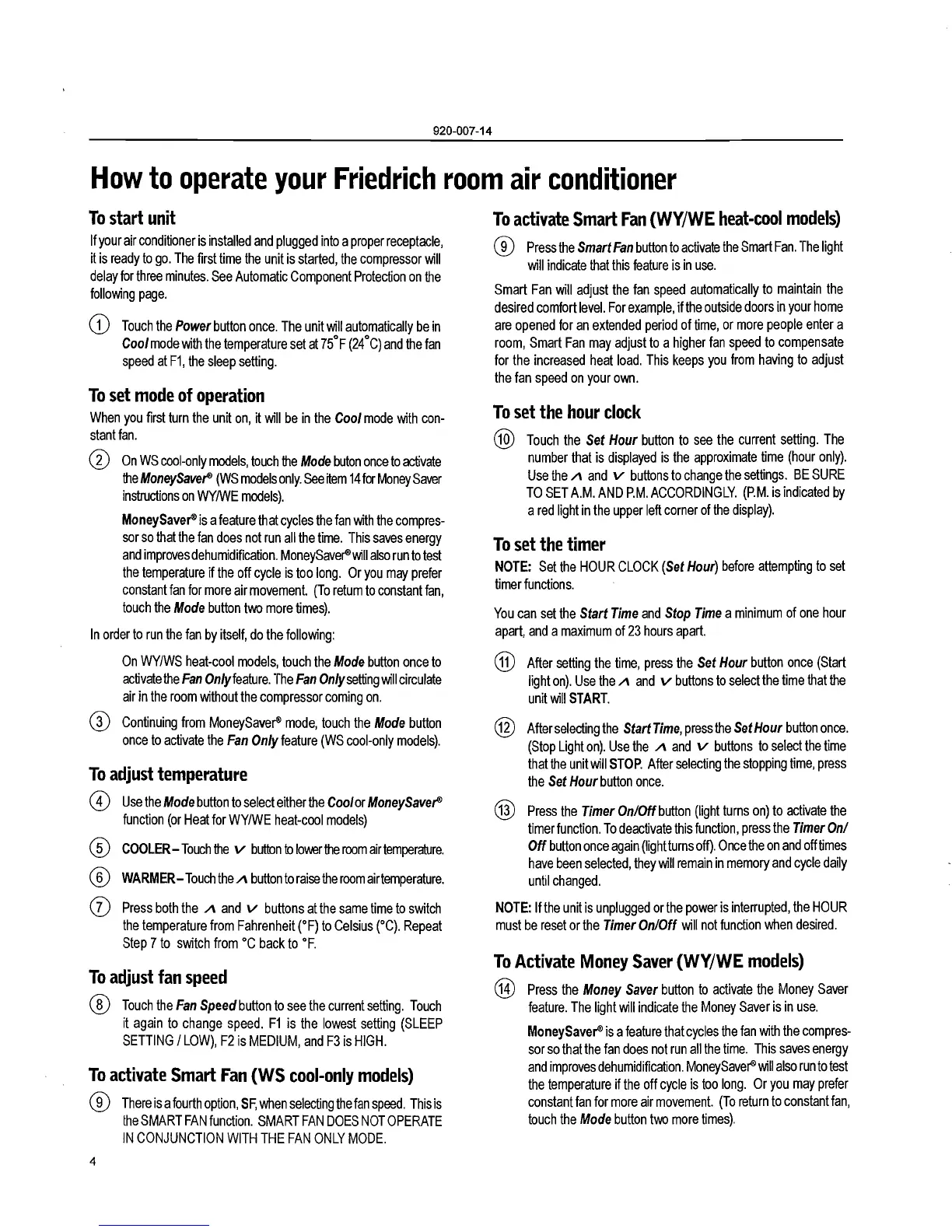

How to operate your Friedrich room air conditioner
To start unit
If your air conditioner is installed and plugged into a proper receptacle,
it is ready to go. The first time the unit is started, the compressor will
delay for three minutes. See Automatic Component Protection on the
following page.
CD Touch the Power button once. The unit will automatically be in
Cool mode with the temperature set at 75°F (24°C) and the fan
speed at F1, the sleep setting.
To set mode of operation
When you first turn the unit on, it will be in the Cool mode with con-
stant fan.
CD On WS cool-only models, touch the Mode buton once to activate
the MoneySavef"l (WS models only. See ~em 14 for Money Saver
instructions on WYfWE models).
MoneySaver® is a feature that cycles the fan with the compres-
sor so that the fan does not run all the time. This saves energy
and improves dehumidification. MoneySaver® will also run to test
the temperature if the oft cycle is too long. Or you may prefer
constant fan for more air movement. (To retum to constant fan,
touch the Mode button two more times).
In order to run the fan by itself, do the following:
On WY/WS heat-cool models, touch the Mode button once to
activate the Fan Onlyfeature. The Fan Only setting will circulate
air in the room without the compressor coming on.
G) Continuing from MoneySaver® mode, touch the Mode button
once to activate the Fan Only feature (WS cool-only models).
To adjust temperature
CD Use the Mode button to select either the Cool or MoneySavef"l
function (or Heat for WY/WE heat-cool models)
® COOLER- Touch the v button to lower the room air temperature.
® WARMER- Touch theA button to raise the room air temperature.
o Press both the A and v buttons at the same time to switch
the temperature from Fahrenheit (OF) to Celsius (0C). Repeat
Step 7 to switch from °C back to OF.
To adjust fan speed
® Touch the Fan Speed button to see the current setting. Touch
it again to change speed. F1 is the lowest setting (SLEEP
SETTING / LOW), F2 is MEDIUM, and F3 is HIGH.
To activate Smart Fan (WS cool-only models)
® There is a fourth option, SF, when selecting the fan speed. This is
the SMART FAN function. SMART FAN DOES NOT OPERATE
IN CONJUNCTION WITH THE FAN ONLY MODE.
To activate Smart Fan (WY/WE heat-cool models)
® Press the Smart Fan button to activate the Smart Fan. The light
will indicate that this feature is in use.
Smart Fan will adjust the fan speed automatically to maintain the
desired comfort level. For example, if the outside doors in your home
are opened for an extended period of time, or more people enter a
room, Smart Fan may adjust to a higher fan speed to compensate
for the increased heat load. This keeps you from having to adjust
the fan speed on your own.
To set the hour clock
@) Touch the Set Hour button to see the current setting. The
number that is displayed is the approximate time (hour only).
Use the A and v buttons to change the settings. BE SURE
TO SET A.M. AND P.M. ACCORDINGLY. (P.M. is indicated by
a red light in the upper left corner of the display).
To set the timer
NOTE: Set the HOUR CLOCK (Set Hour) before attempting to set
timer functions.
You can set the Start Time and Stop Time a minimum of one hour
apart, and a maximum of 23 hours apart.
® After setting the time, press the Set Hour button once (Start
light on). Use the A and v buttons to select the time that the
unit will START.
® After selecting the Start Time, press the Set Hour button once.
(Stop Light on). Use the A and v buttons to select the time
that the unit will STOP. After selecting the stopping time, press
the Set Hour button once.
@ Press the Timer OnlOffbutton (light turns on) to activate the
timer function. To deactivate this function, press the Timer Onl
Off button once again (light turns off). Once the on and ofttimes
have been selected, they will remain in memory and cycle daily
until changed.
NOTE: If the unit is unplugged or the power is interrupted, the HOUR
must be reset or the Timer OnlOff will not function when desired.
To Activate Money Saver (WY/WE models)
® Press the Money Saver button to activate the Money Saver
feature. The light will indicate the Money Saver is in use.
MoneySaver® is a feature that cycles the fan with the compres-
sor so that the fan does not run all the time. This saves energy
and improves dehumidification. MoneySave~ will also run to test
the temperature if the off cycle is too long. Or you may prefer
constant fan for more air movement. (To return to constant fan,
touch the Mode button two more times).
