Front panel and external connectors
13.1.7 Installing the On/Off button and HDD activity LED

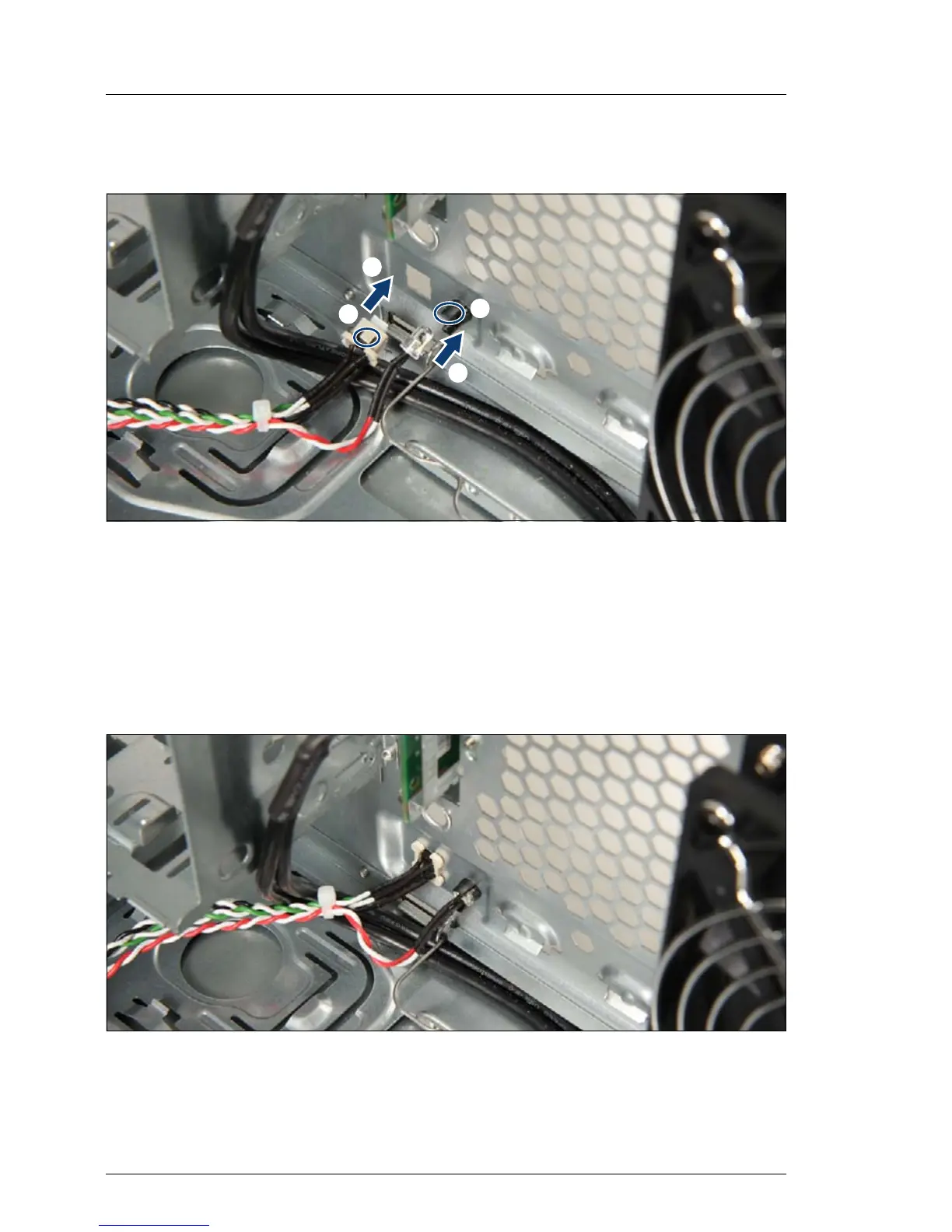

Figure 115: Installing the On/Off button and HDD activity LED
Ê Insert the On/Off button in the orientation shown until it snaps in place (1).
I Take care of the orientation of the On/Off button. If it is installed
differently, it will not work properly.
Ê Insert the HDD activity LED in the orientation shown until it snaps in place
(2).
Figure 116: On/Off button and LED installed
/
/
0
0
