Hard disk drives
7.1 Mounting order for 3.5-inch HDDs
– Hard disk drives with different capacities are installed from highest to lowest
capacity.
– Hard disk drives with different rotation speeds are installed from highest to
lowest speed.
– Maximum configuration: 4x 3.5-inch HDDs

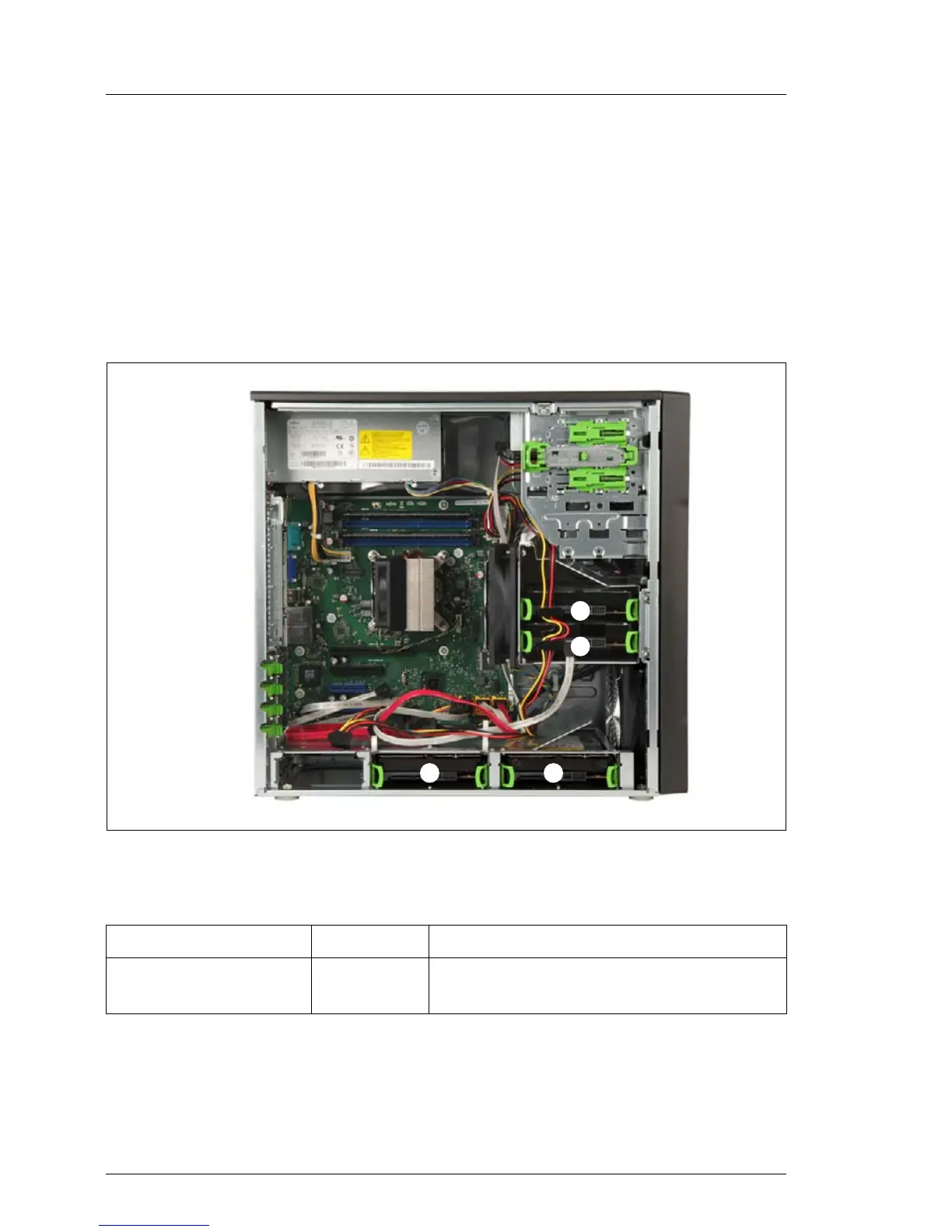

Figure 36: 3.5-inch HDD mounting order
SATA connectivity
Controller Channel Connection
onboard SATA
controller
1Drives 1-4
/0
1
2
