8. AIS OPERATION
8-4
8.5 How to Sort Targets
You can sort the AIS targets received from the AIS transponder by range from your
ship, by sector, by CPA or TCPA.
1. Press the MENU/ESC key to open the menu.
2. Use the Cursorpad ( or ) to select [AIS] and press the ENTER key.
3. Use the Cursorpad ( or ) to select [Sort By] and press the ENTER key.

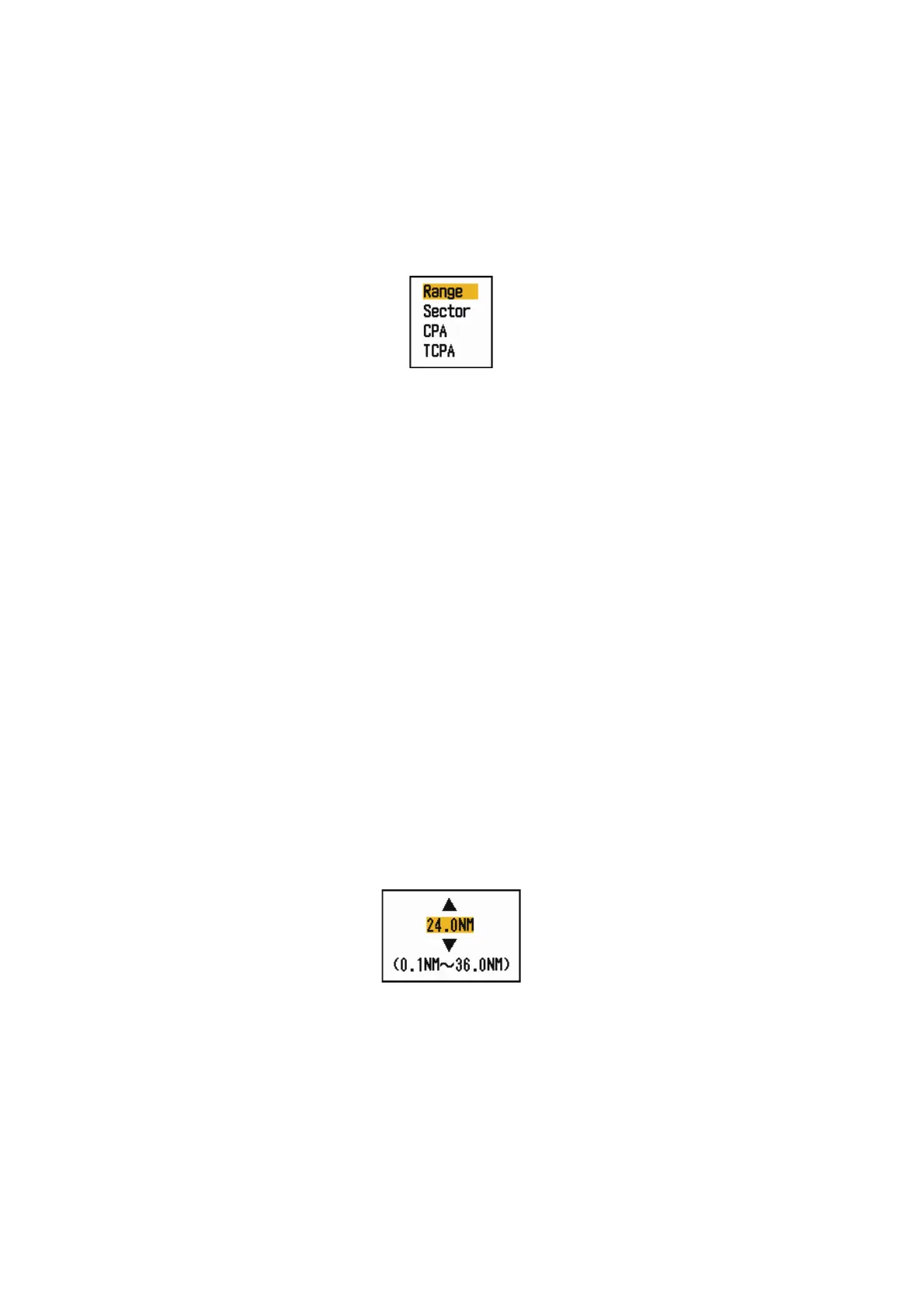

Sort By options
4. Use the Cursorpad ( or ) to select sorting method and press the ENTER key.
[Range]: Sort targets within the display range set (see section 4.7), from nearest
to furthest.
[Sector]: Sort targets within the display sector set (see section 4.8) and within 24
nm, from nearest to furthest.
[CPA]: Sort targets within 24 nm by CPA, from closest to furthest.
[TCPA]: Sort targets within 24 nm by TCPA, from earliest time to latest time.
5. Press the MENU/ESC key to close the menu.
8.6 Display Range
You can set the AIS system to show only those AIS targets within the range you set.
The setting range is 0.1-36 nm for MODEL 1835, 0.1-48 nm for MODEL 1935, 0.1-64
nm for MODEL 1945. Actual range depends on the AIS Transponder. If the target sort-
ing method is selected to [Range], the target data within the range set here is trans-
mitted to this radar.
1. Press the MENU/ESC key to open the menu.
2. Use the Cursorpad ( or ) to select [AIS] and press the ENTER key.
3. Use the Cursorpad ( or ) to select [Range] and press the ENTER key.
AIS-Range setting window (for MODEL 1835)
4. Use the Cursorpad ( or ) to set the display range and press the ENTER key.
5. Press the MENU/ESC key to close the menu.
Note: The unit of measurement for range is NM.
