6. HOW TO INTERPRET THE RADAR DISPLAY
6-8
6.4 RACON
A RACON is a radar beacon which emits radar-receivable signals in the radar frequen-
cy spectrum (X- or S-band). There are several signal formats; in general, the RACON
signal appears on the radar screen as a rectangular echo originating at a point just
beyond the position of the radar beacon. It has a Morse coded pattern. Note that the
position on the radar display is not accurate.

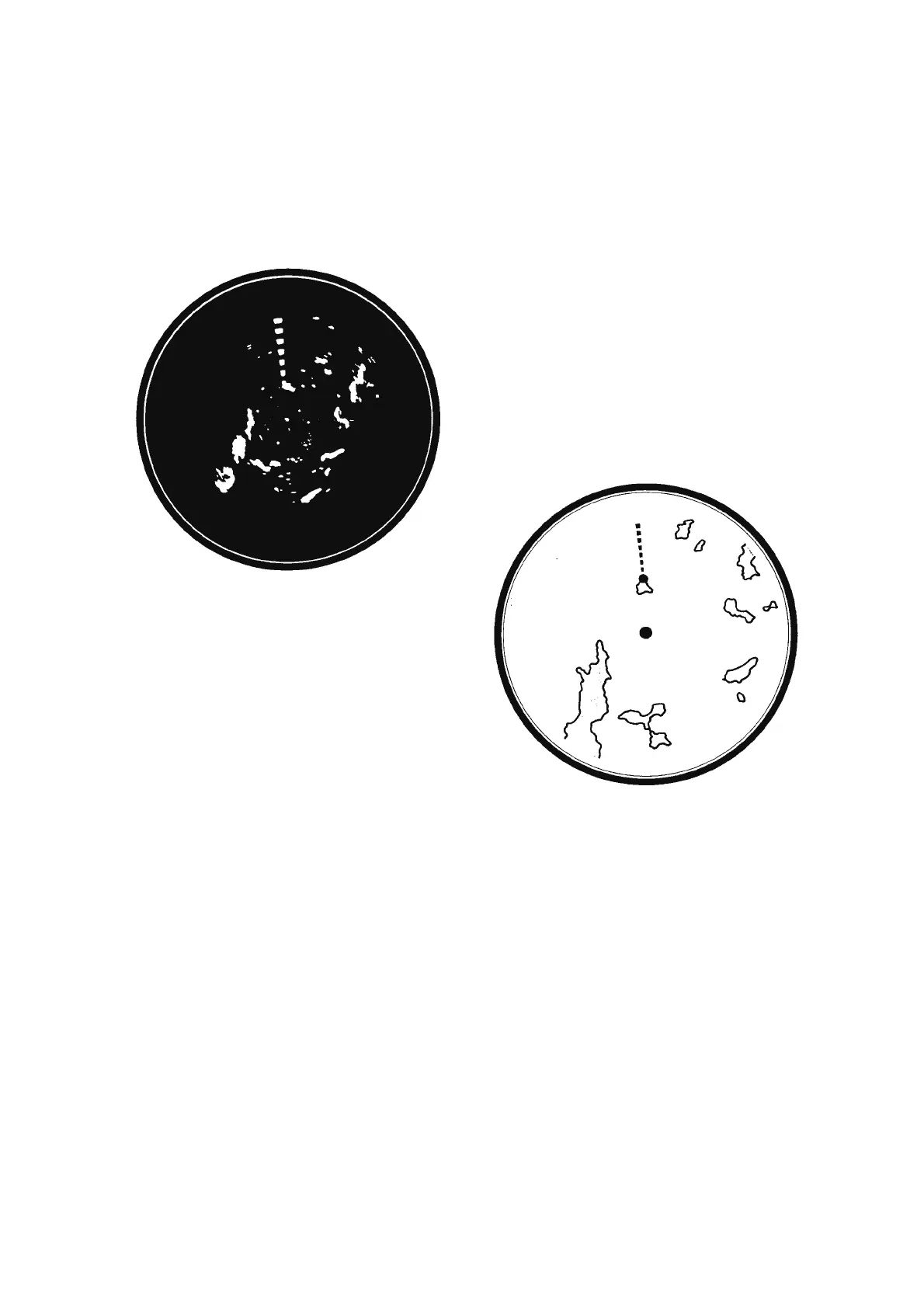

RACON
Echoes on the radar screen
Echo description
Your ship position
RACON signal
RACON station
