6. HOW TO INTERPRET THE RADAR DISPLAY
6-6
6.3 SART (Search and Rescue Transponder)
6.3.1 SART description
When any X-band radar reaches within a range of approximately 8 nm, a Search and
Rescue Transponder (SART) sends a response to the radar signal. The transmitter
signal of response is 12-sweeps signal between 9,500 MHz to 9,200 MHz. The time
of slow sweep signal is 7.5 s and the time of fast sweep signal is 0.4 s. When the

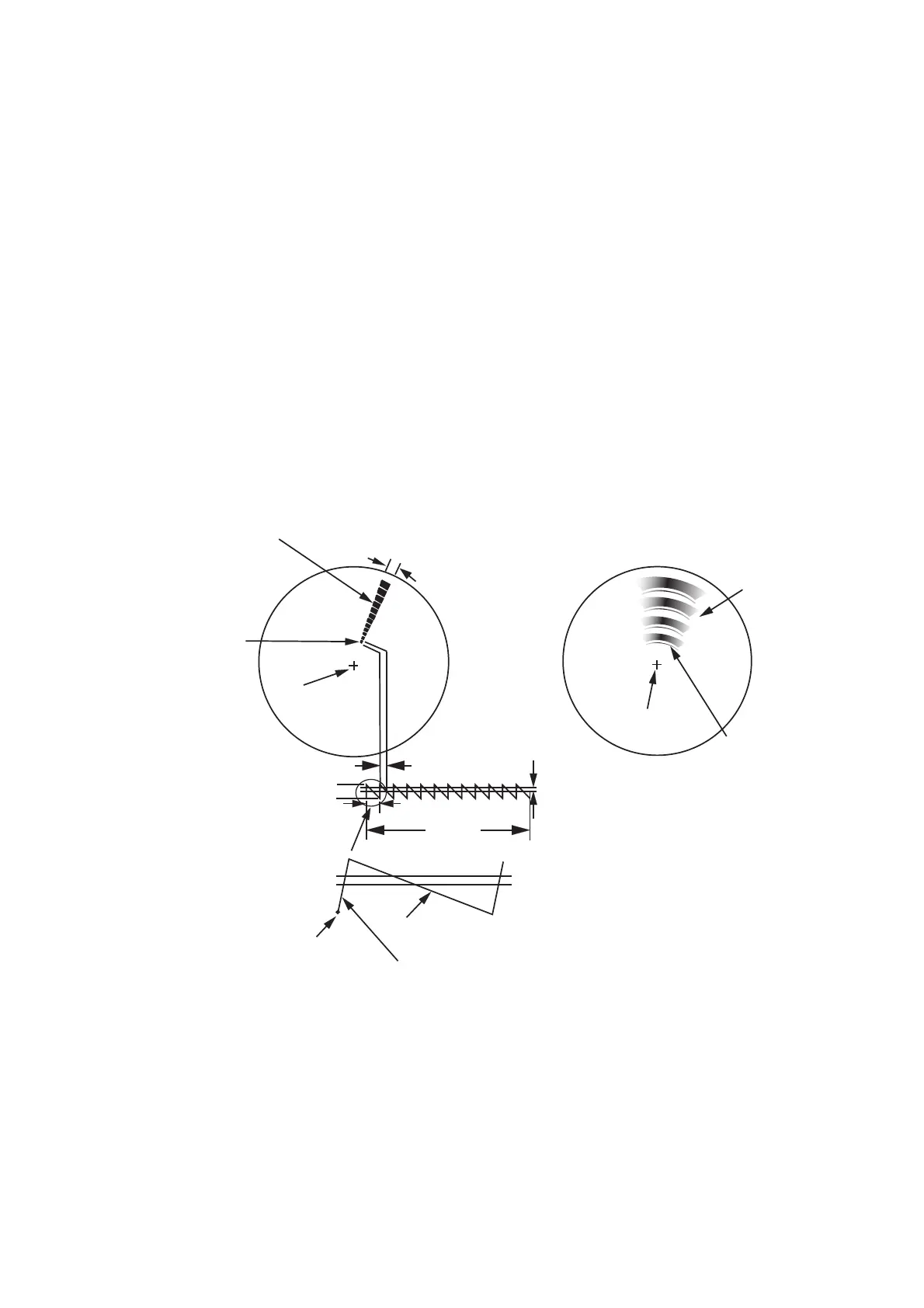

radar receives this SART signal, a line of 12 dots appears. When the position of SART
is distant, the radar display shows only slow sweep signals like the illustration of
screen A.
When the radar reaches the SART within approximately 1 nm, the radar display can
also show the 12 responses of fast sweep signals like the illustration of screen B. The
position of the SART is the closest position of the radar echoes.
SART echo
9500 MHz
9200 MHz
Radar antenna
beamwidth
Screen A: When SART is distant
Screen B: When SART is close
Echo from SART
Position of
SART
Your ship
position
Your ship
position
SART mark
length
Radar receiver
bandwidth
Sweep time
7.5 µs
95 µs
Sweep start
High speed sweep signal
Low speed sweep signal
24 NM
1.5 NM
Position of
SART
Echo from
SART
Lines of 12 dots are displayed in
concentric arcs.
