Furuno 1815 User Manual

5. OPERATION
5-19
5.16.2 EBL reference
"R" (relative) follows the EBL indication if the bearing is relative to the heading of your
ship. "T" (true) follows the EBL indication if the bearing is in reference to the north. You
can select relative or true in the head-up and true view modes. The bearing indication
is true in all other modes. True bearing requires a heading sensor.
1. Press the MENU/ESC key to open the menu.
2. Use the Cursorpad ( or ) to select [Others] and press the ENTER key.
3. Use the Cursorpad ( or ) to select [EBL Reference] and press the ENTER key.

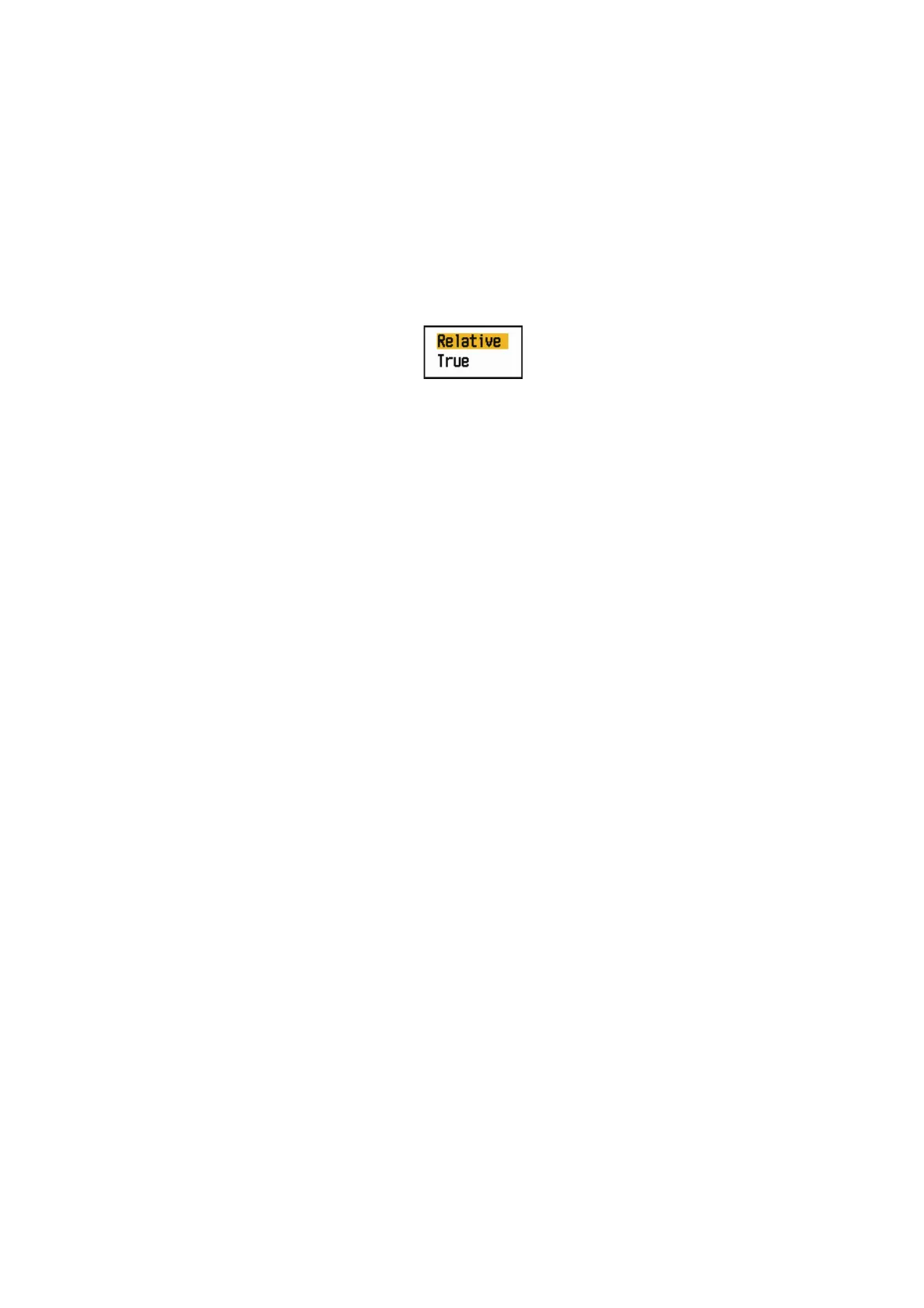

4. Use the Cursorpad ( or ) to select [Relative] or [True] then press the ENTER
key.
5. Press the MENU/ESC key to close the menu.

Furuno 1815 Specifications

General

Brand	Furuno
Model	1815
Category	Marine Radar
Language	English
