5. OPERATION
5-39
1. Press the MENU/ESC key to open the menu.
2. Use the Cursorpad ( or ) to select [Alarm] and press the ENTER key.
3. Use the Cursorpad ( or ) to select [Watchman] and press the ENTER key.

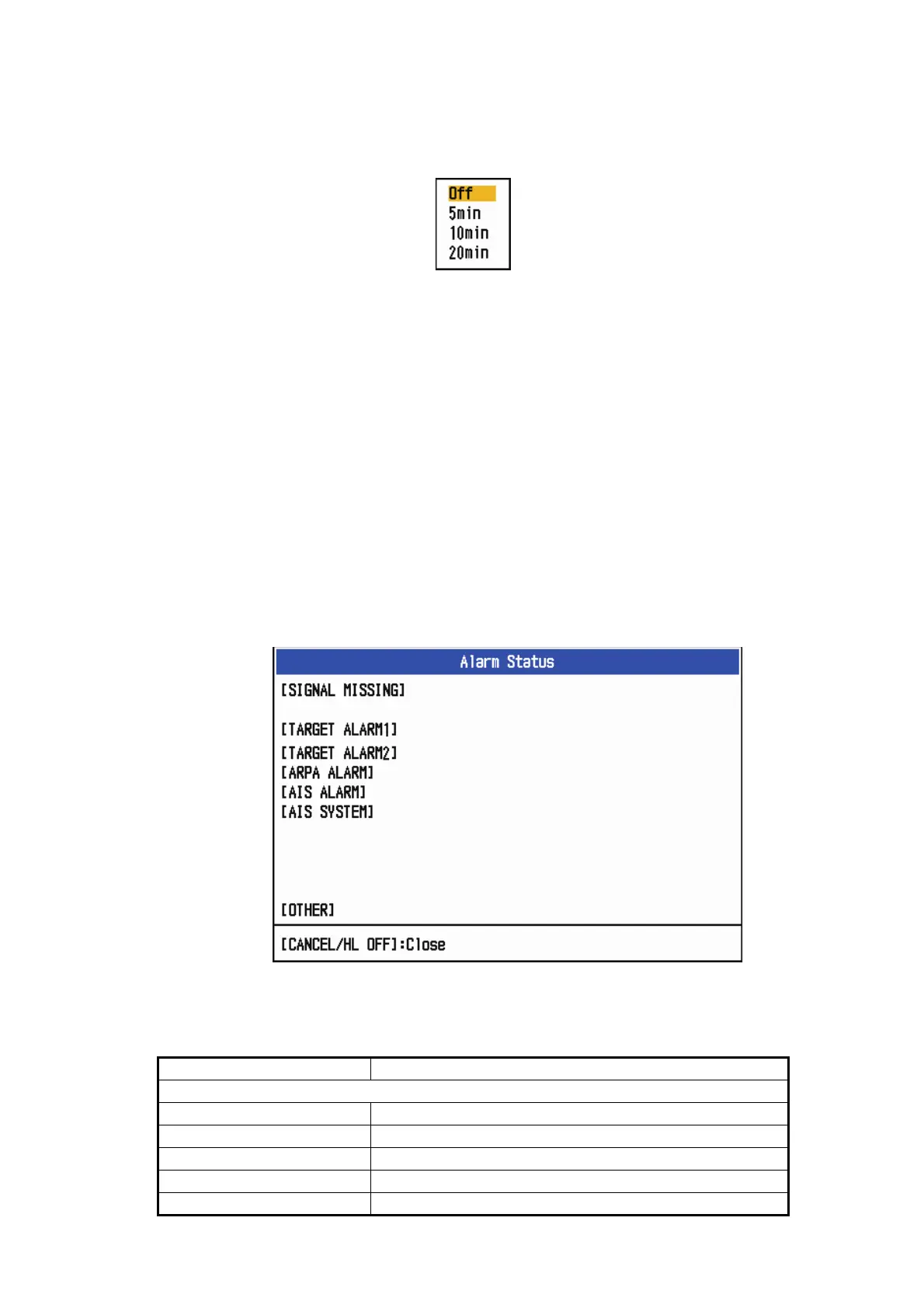

Watchman options
4. Use the Cursorpad ( or ) to select [Off] or the time ([5min], [10min] or [20min])
then press the ENTER key.
5. Press the MENU/ESC key to close the menu.
To turn off watchman, select [Off] at step 4.
5.29 Alarm Message
The alarm status window shows all currently violated alarms.
Note: The alarm status window is not automatically displayed when an alarm occurs.
1. Press the MENU/ESC key to open the menu.
2. Use the Cursorpad ( or ) to select [Alarm] and press the ENTER key.
3. Use the Cursorpad ( or ) to select [Alarm Status] and press the ENTER key.
Alarm Status display
4. Press the MENU/ESC key to close the alarm status display.
5. Press he MENU/ESC key to close the menu.
Alarm category Meaning
SIGNAL MISSING*
TRIGGER Trigger signal lost (only for remote display)
HEADING Heading signal lost
BEARING Bearing signal lost
GYRO AD-10 format gyro signal lost
VIDEO Video signal lost
TRIGGER HEADING BEARING GYRO
VIDEO POSITION NMEA_HDG
IN OUT
IN OUT
COLLISION LOST PROXIMITY
COLLISION PROXIMITY
TX ANT CH1 CH2 CH70 FAIL MKD
EPFS L/L SOG COG HDG ROT
OVER_TEMP
