15.2.4 How to Install the Speaker (Optional)

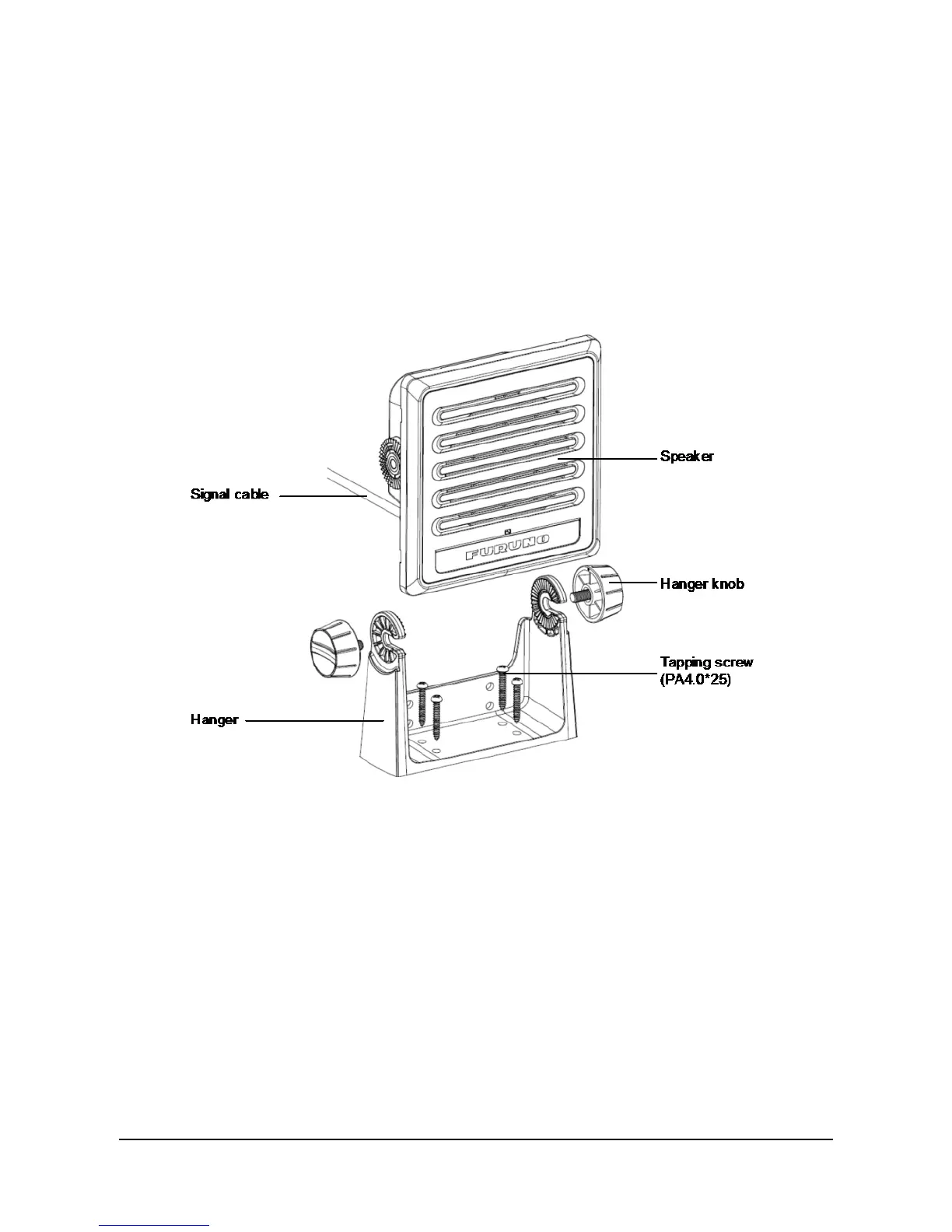

For desktop mounting
Step 1 Put the hanger in a location where it is easy to install the SP-4800.
Step 2 Fix the hanger with four screws.
Step 3 Set the speaker to the bracket.
Step 4 Tighten the knob bolts on both sides of the hanger.
Step 5 Connect the signal cable.
For flush mounting
Step 1 Determine the position of installation holes according to the marking
template and drill the hole.
Step 2 Pry off the frame from the front panel.
Step 3 Paste the installation sealing gasket on the back of the front panel.
Step 4 Place the speaker in the hole and fix it with four screws.
Step 5 Connect the speaker to the radio using the color-coded signal cable.
Make sure that every signal cable is firmly connected.
Step 6 Mount the frame.
