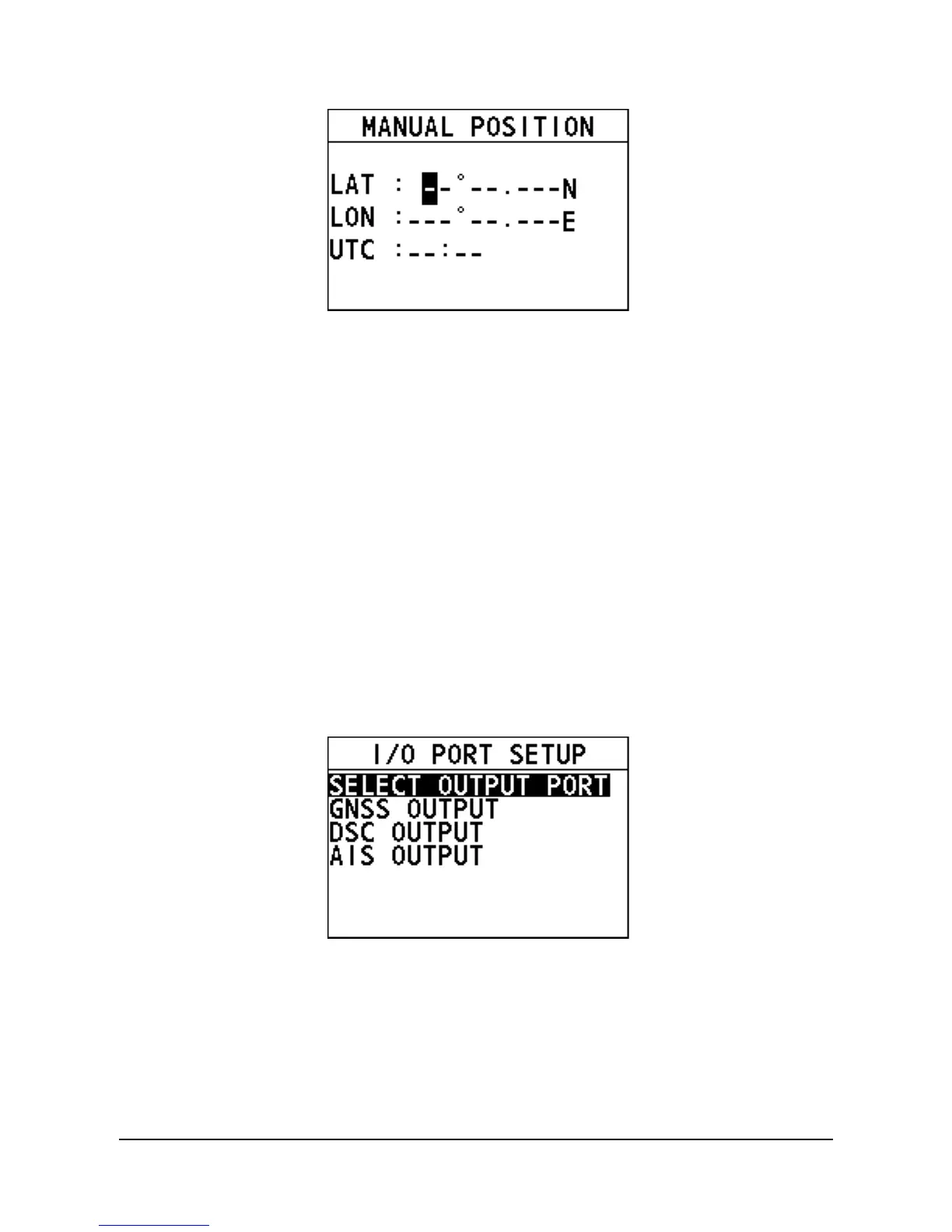

Step 2 Rotate and press the Menu/DSC control to input your position.
Step 3 After you input all information, press the Menu/DSC control to save the
setting and return to the previous interface.
10.5 I/O Port Setup
This section allows you to set whether to output GNSS, DSC and AIS data and
allows you to select the port for outputting these data.
There are two baud rates available for NMEA0183. When "AIS OUTPUT" is set to
"ON", the baud rate is 38400. When "AIS OUTPUT" is set to "OFF", the baud rate is
4800.
10.5.1 Entering the "I/O PORT SETUP" Interface
Step 1 Press the Menu/DSC control until the "MAIN MENU" screen appears.
Step 2 Go to "GENERAL SETUP > I/O PORT SETUP".
The following interface appears on the screen.
10.5.2 Selecting Output Port
This feature allows you to select the port for outputting GNSS, DSC and AIS data.
Step 1 In the "I/O PORT SETUP" interface, select "SELECT OUTPUT PORT".
The following interface appears on the screen.
