2. MENU
2-8
11. Press S or T key to select [Wind] and press the ENT key.

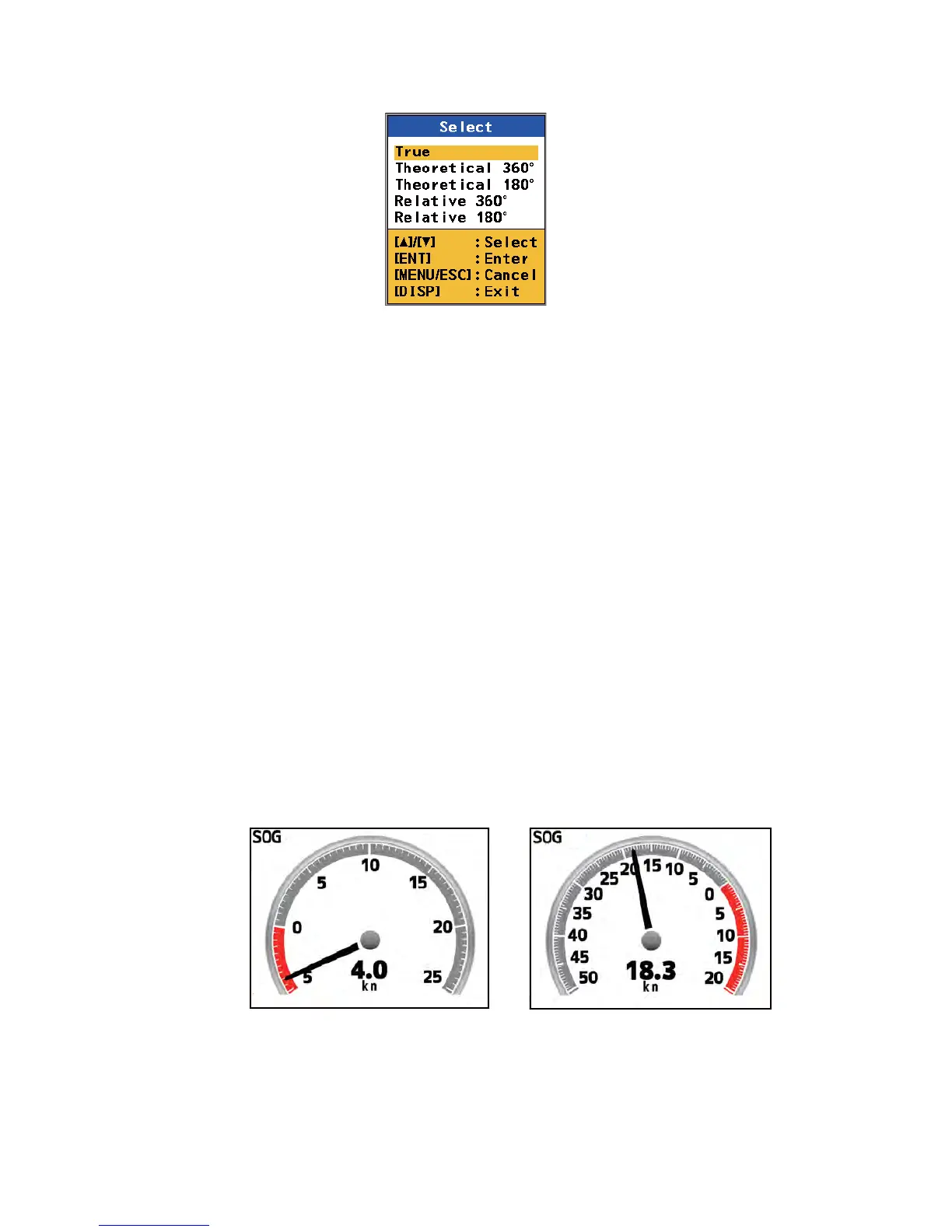

Wind options
12. Press S or T key to select [True], [Theoretical 360° (or 180°)] or [Relative 360°
(or 180°)] then press the ENT key.
[True]: The wind angle measured with true North as the reference angle and the
wind speed as if the ship is stationary. "T" is displayed on the screen.
[Theoretical 360°/180°]: Theoretical or calculated wind angle. The wind angle
relative to the ship’s bow and the wind speed as if the ship is stationary. The wind
graphic scale for [Theoretical 360°] indicates 0° to 360°, for [Theoretical 180°] in-
dicates 0° to 180° for port and starboard. "T" is displayed on the screen.
[Relative 360°/180°]: Relative or apparent wind angle. The wind angle relative to
the ship’s bow and the wind speed relative to the moving ship. The wind graphic
scale for [Relative 360°] indicates 0° to 360°, for [Relative 180°] indicates 0° to
180° for port and starboard. "R" is displayed on the screen.
Note 1: The same abbreviation "T" is used for both [True] and [Theoretical 360°/
180°].
Note 2: The indication of the wind angle (port or starboard) is displayed at the bot-
tom of the screen when you select [Theoretical 180°] or [Relative 180°].
13. Press the DISP key to close the menu.
2.4 How to Set the Speed Graphic Range
You can customize the astern and ahead speed scales for the speed graphic.
Examples of the speed graphic
Astern SPD Scale: 5 kn
Ahead SPD Scale: 25 kn
Symbol Location*: Left (The pointer
rotates clockwise as ship’s speed
increases.)
Astern SPD Scale: 20 kn
Ahead SPD Scale: 50 kn
Symbol Location*: Right (The pointer
rotates counterclockwise as ship’s
speed increases.)
*: See section 2.12.
