2. MENU
2-10
2.5 Depth Graph
You can customize the scale range, period for the horizontal axis and graph appear-
ance for the depth graph.

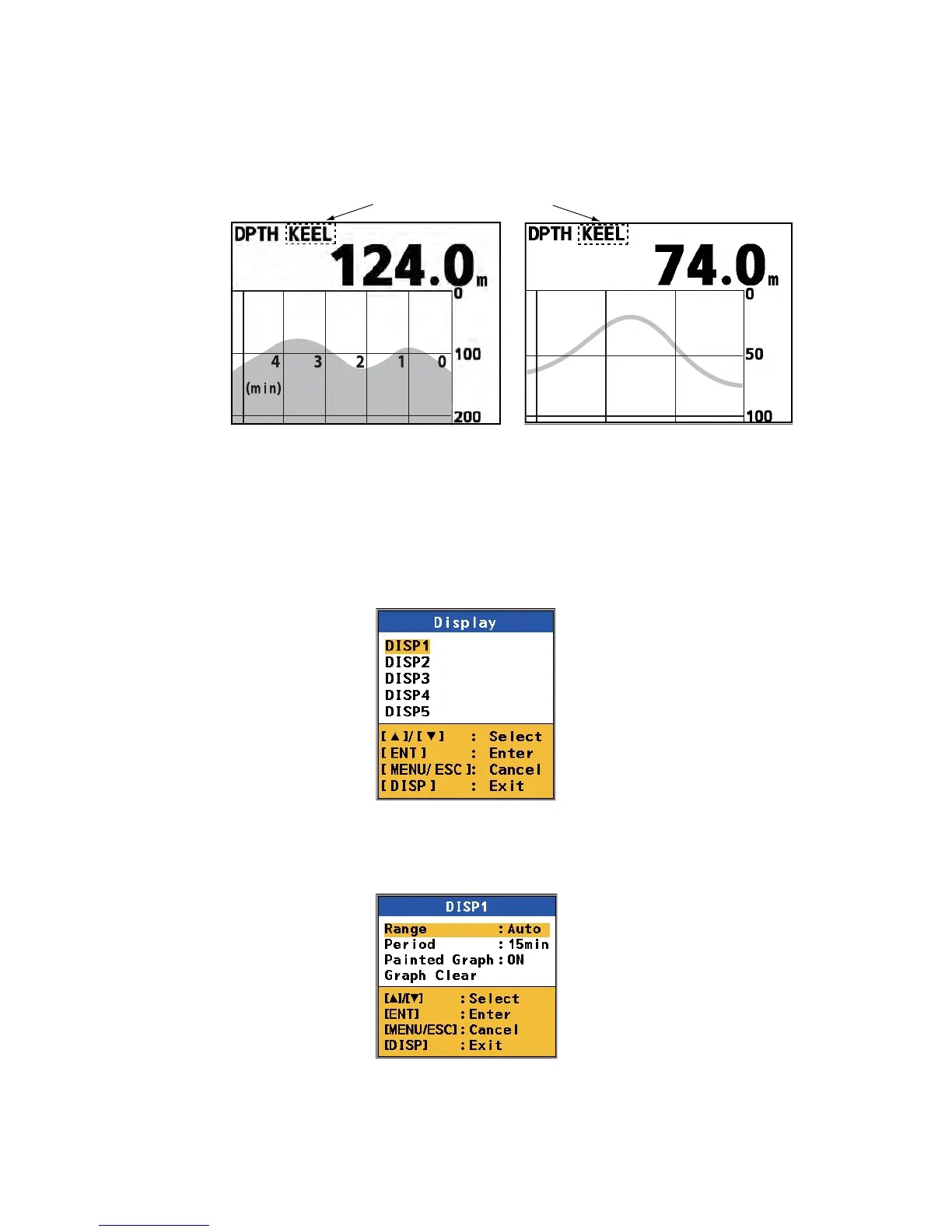

Examples of Depth Graph
1. Press the MENU/ESC key to open the menu.
2. Press S or T key to select [Scale Set Up] and press the ENT key.
3. Press S or T key to select [Depth Graph] and press the ENT key.
Display options
4. Press S or T key to select [DISP1 (2, 3, 4 or 5)], which shows the depth graph,
and press the ENT key.
Depth Graph options
Range: 200 m
Period: 5 min
Painted Graph: ON
Range: 100 m
Period: 15 min
Painted Graph: OFF
(m i n)
10 5
0
Depth reference (See section 4.6.)
To Next Page
