2. MENU
2-14
8. Press S or T key to select the period for the horizontal axis and press the ENT
key.
9. Press S or T key to select [Painted Graph] and press the ENT key.

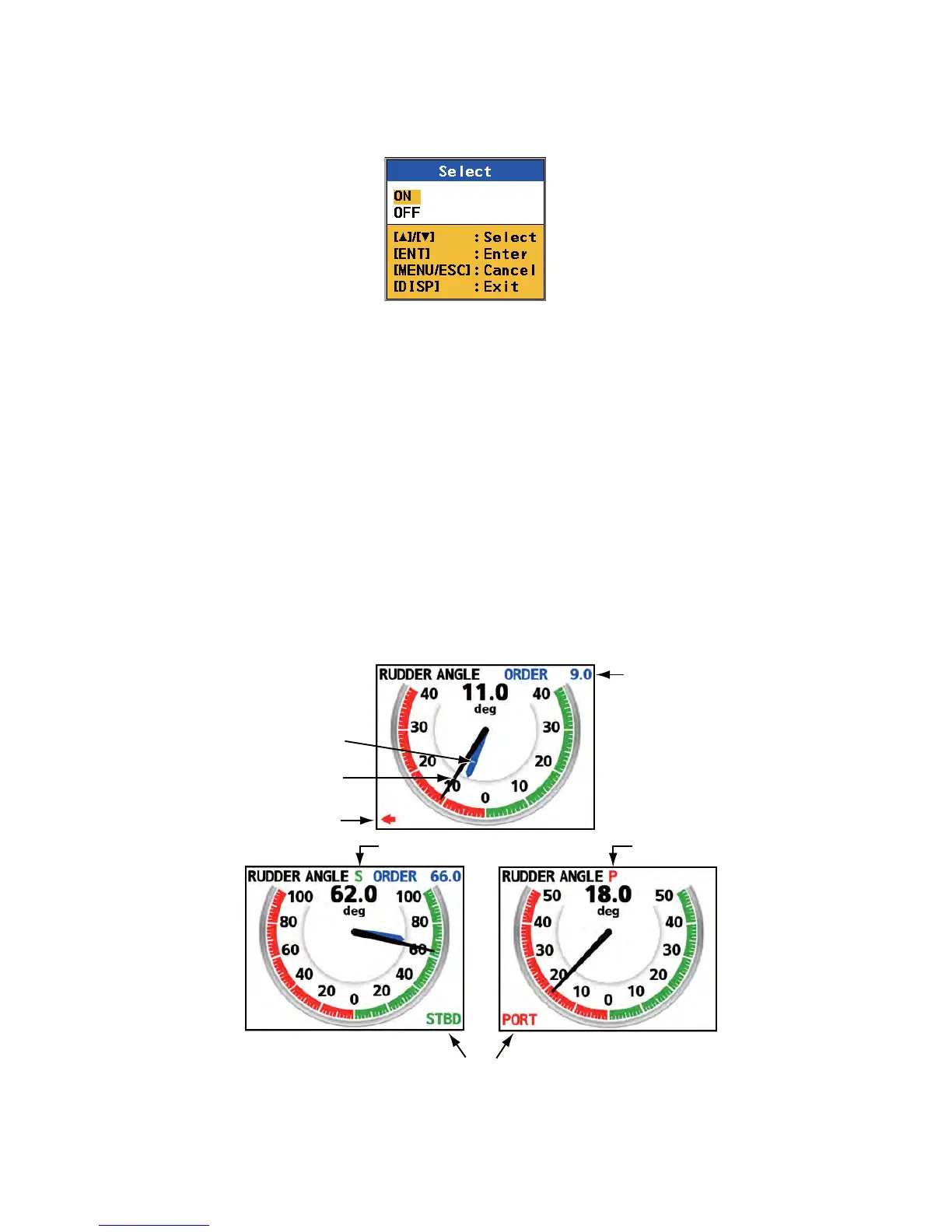

Painted Graph options
10. Press S or T key to select [ON] or [OFF] then press the ENT key.
[ON]: Filled
[OFF]: Line only
11. Press the DISP key to close the menu.
To clear the graph, select [Graph Clear] (see above step 5) → [Yes] then press the
ENT key.
2.7 Rudder Graphic
2.7.1 How to set the range for rudder graphic and position for rudder
You can customize the rudder angle range and rudder position for the rudder graphic.
The rudder order symbol can be shown or hidden.
Examples of Rudder Graphic
Graphic Range: 40 deg
Position: Single
Rudder Order Symbol: ON
Direction Symbol*: Arrows
Graphic Range: 50 deg
Position: Port
Rudder Order Symbol: OFF
Direction Symbol*: Text
Graphic Range: 100 deg
Position: Starboard
Rudder Order Symbol: ON
Direction Symbol*: Text
Turning
direction
P: Port
S: Starboard
Rudder order indication
Turning
direction
*: See section 2.11 for [Direction Symbol].
Short pointer:
Rudder order
Long pointer:
Rudder angle
