2. MENU
2-18
2.9 How to Show/Hide the Digital Indication
You can show/hide the digital indication on the graphic screen for speed, ROT, rudder,
engine, shaft and propeller pitch.

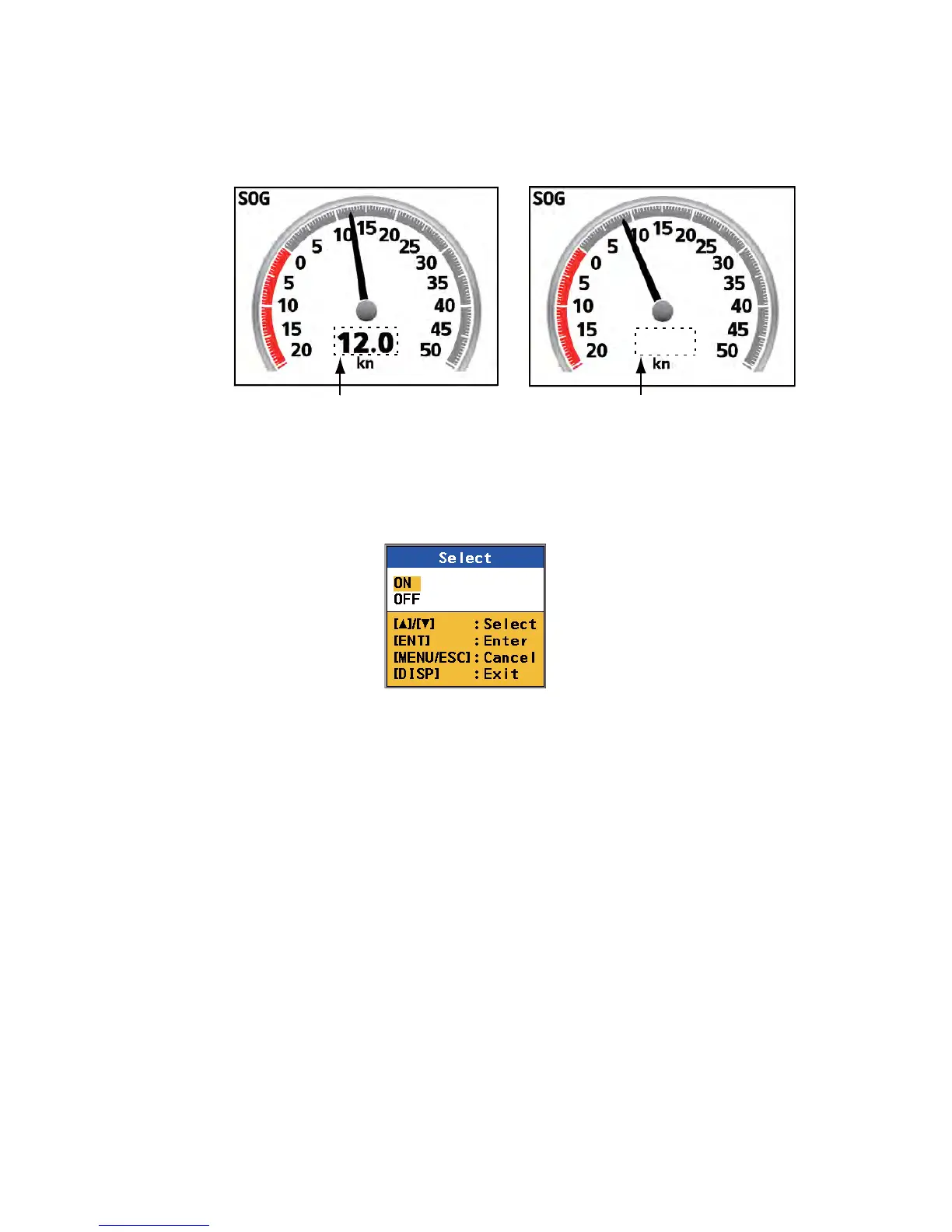

Digital indication ON/OFF
1. Press the MENU/ESC key to open the menu.
2. Press S or T key to select [Scale Set Up] and press the ENT key.
3. Press S or T key to select [Digital on Graphic] and press the ENT key.
Digital on Graphic options
4. Press S or T key to select [ON] or [OFF] then press the ENT key.
5. Press the DISP key to close the menu.
2.10 Units of Measurement
You can preset the units of measurement for ship speed, distance, depth, wind speed
and water temperature. You can change these units with the UNIT key of the RD-501
(see section 2.16).
1. Press the MENU/ESC key to open the menu.
2. Press S or T key to select [Scale Set Up] and press the ENT key.
Digital on Graphic: ON
Digital on Graphic: OFF
To Next Page
