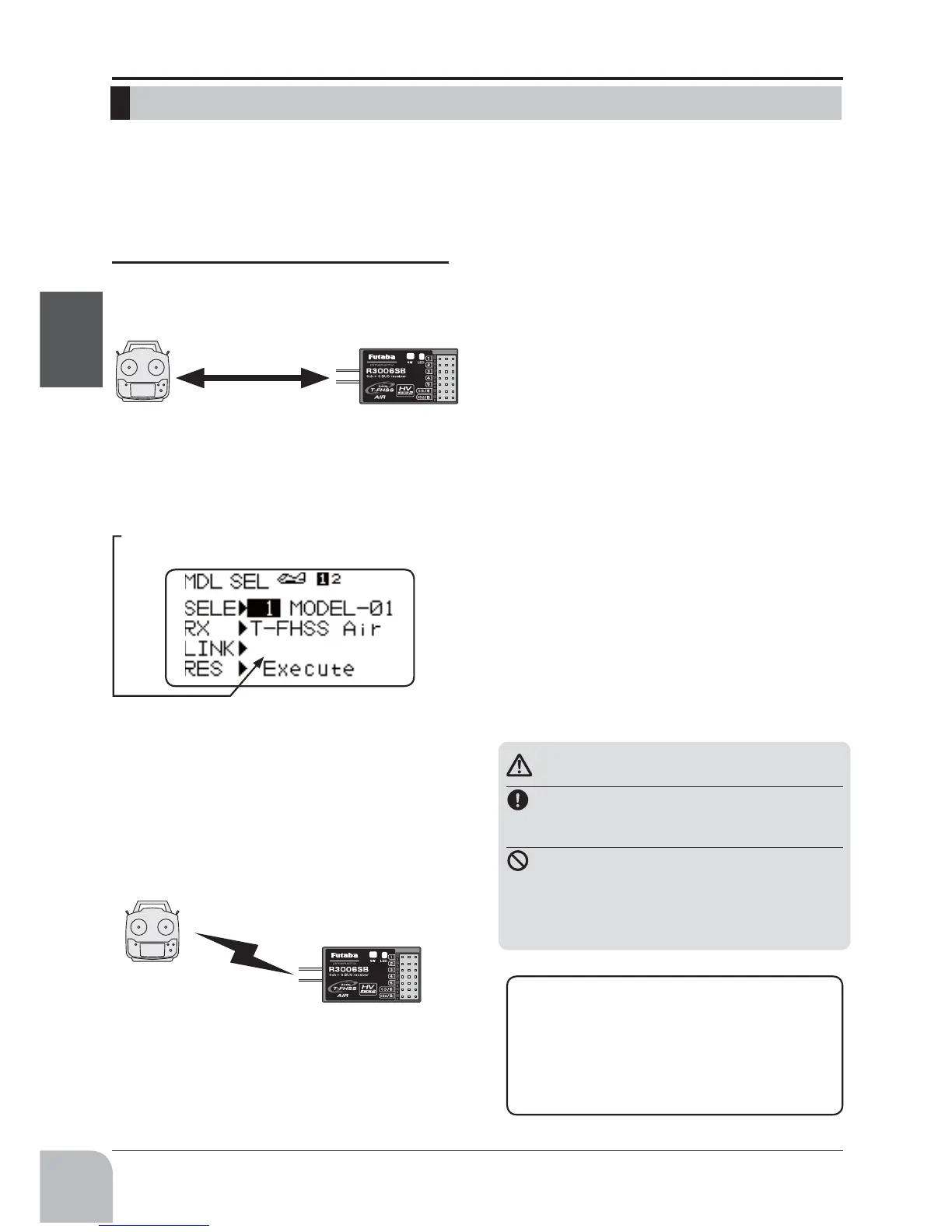

/LQNSURFHGXUH
1. Place the transmitter and the receiver
close to each other within 20 inches(half
meter).
2. Turn on the transmitter.
3. Select [MDL-SEL] and access the setup
screen shown below by pressing the Jog
key .
4. Use the jog key to select (NO LINK) or the
ID number next to LINK in the [MDL-SEL]
menu.
5. Hold down the jog key to enter the link
mode.
6. A chime from the transmitter notifies the
operator that the transmitter has entered
the link mode.
“Beep beep beep”
(Enters the link mode for 20 seconds)
7. Immediately turn on the receiver power.
The receiver will enter the linking state
(LED blinks red) about 3 seconds after the
receiver power is turned on.
Lessthan20inches
In"Link"Mode
ReceiverON
8. If the receiver ID is displayed in the
transmitter and the LED changed from red
blinking to a steady green light, linking is
complete. (The receiver linking wait state
ends in about 3 seconds.)
9. Check system operation. If the transmitter
and receiver are not linked, try linking
again.
,IWKHUHDUHPDQ\7)+66$LUV\VWHPVWXUQHGRQLQFORVH
SUR[LPLW\\RXUUHFHLYHUPLJKWKDYHGLI¿FXOW\HVWDEOLVKLQJ
a link to your transmitter. This is a rare occurrence.
+RZHYHUVKRXOGDQRWKHU7)+66$LUWUDQVPLWWHUUHFHLYHU
EHOLQNLQJDWWKHVDPHWLPH\RXUUHFHLYHUFRXOGOLQNWR
the wrong transmitter. This is very dangerous if you do
QRWQRWLFHWKLVVLWXDWLRQ,QRUGHUWRDYRLGWKHSUREOHPZH
strongly recommend you to double check whether your
receiver is really under control by your transmitter.
:KHQWKHOLQNHGWUDQVPLWWHUSRZHULVWXUQHGRQ
communications begins.
:KHQXVLQJUHFHLYHUVSHUIRUPWKHOLQNLQJRSHUDWLRQWKH
VDPHDVWKHVWUHFHLYHU+RZHYHUZKHQUHFHLYHUVDUH
XVHGWKHWHOHPHWU\V\VWHPFDQQRWEHXVHG
*Link is required when a new model is made from a model
selection.
WARNING
After the linking is done, please cycle receiver
power and check that the receiver to be linked
is really under the control of the transmitter.
Don't perform the linking procedure with mo-
tor's main wire connected or with the engine
operating as it may result in serious injury.
;;;;;;;;;
/LQNLVUHTXLUHGZKHQDQHZ
PRGHOLVPDGHIURPDPRGHO
VHOHFWLRQ
:KHQWHOHPHWU\FDQWEHXVHGWU\
DUHOLQNRQFHDJDLQ
