190-00709-00 Rev. A
Garmin G1000 Pilot’s Guide for the Socata TBM 850
3-11
ENGINE & AIRFRAME SYSTEMS
FUEL SYSTEM
The Fuel Synoptics Page displays the status of the fuel tanks and feed system. Fuel quantity is depicted
graphically; the color changes to yellow if the fuel quantity drops below the threshold level.

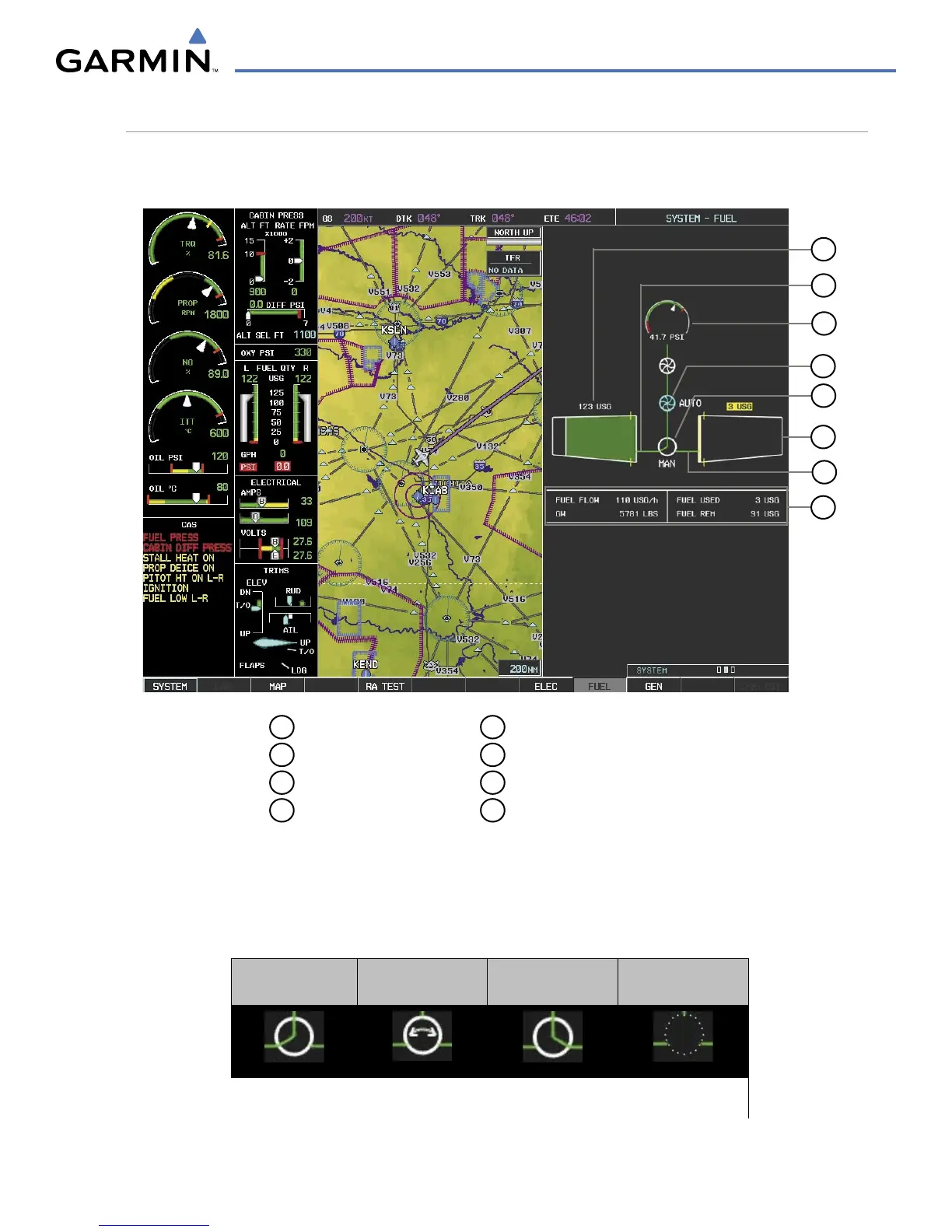

Figure 3-17 Fuel Synoptics Page
5
4
8
7
1
2
3
6
1
Left Fuel Tank
2
Left Fuel Line
3
Fuel Pressure
4
Auxiliary Boost Pump
5
Fuel Selector
6
Right Fuel Tank
7
Right Fuel Line
8
Fuel Flow Data
Status of the fuel selector is indicated between the fuel tank symbols. The mode, automatic (AUTO), manual
(MAN), or off (no indication; CAS message ‘FUEL OFF’ generated) is shown beneath the fuel selector symbol.
Left Fuel Tank
Selected
Switching Fuel
Tank Selection
Right Fuel Tank
Selected
Unknown Fuel
Tank Selection
Table 3-2 Fuel Selector Status
