Garmin G1000 Pilot’s Guide for the Socata TBM 850
190-00709-00 Rev. A 8-7
ADDITIONAL FEATURES
8.2 CHARTVIEW
ChartView resembles the paper version of Jeppesen terminal procedures charts. The charts are displayed in full
color with high-resolution. The MFD depiction shows the aircraft position on the moving map in the plan view
of approach charts and on airport diagrams. Airport Hot Spots are outlined in magenta.
The ChartView database subscription is available from Jeppesen, Inc. Available data includes:
• Arrivals (STAR)
• Departure Procedures (DP)
• Approaches
• Airport Diagrams
• NOTAMs
CHARTVIEW SOFTKEYS
ChartView functions are displayed on three levels of softkeys. While on the Navigation Map Page, Nearest
Airports Page, or Flight Plan Page, selecting the
SHW CHRT
Softkey displays the available terminal chart and
advances to the chart selection level of softkeys: CHRT OPT, CHRT, INFO, DP, STAR, APR, WX, NOTAM,
and GO
BACK. The chart selection softkeys shown below appear on the Airport Information Page.
Selecting the GO
BACK Softkey reverts to the top level softkeys and previous page.
Selecting the CHRT OPT Softkey advances to the next level of softkeys:
ALL, HEADER, PLAN, PROFILE,
MINIMUMS, FIT
WDTH, FULL
SCN, and BACK.
While viewing the CHRT OPT Softkeys, after 45 seconds of softkey inactivity, the system reverts to the chart
selection softkeys.

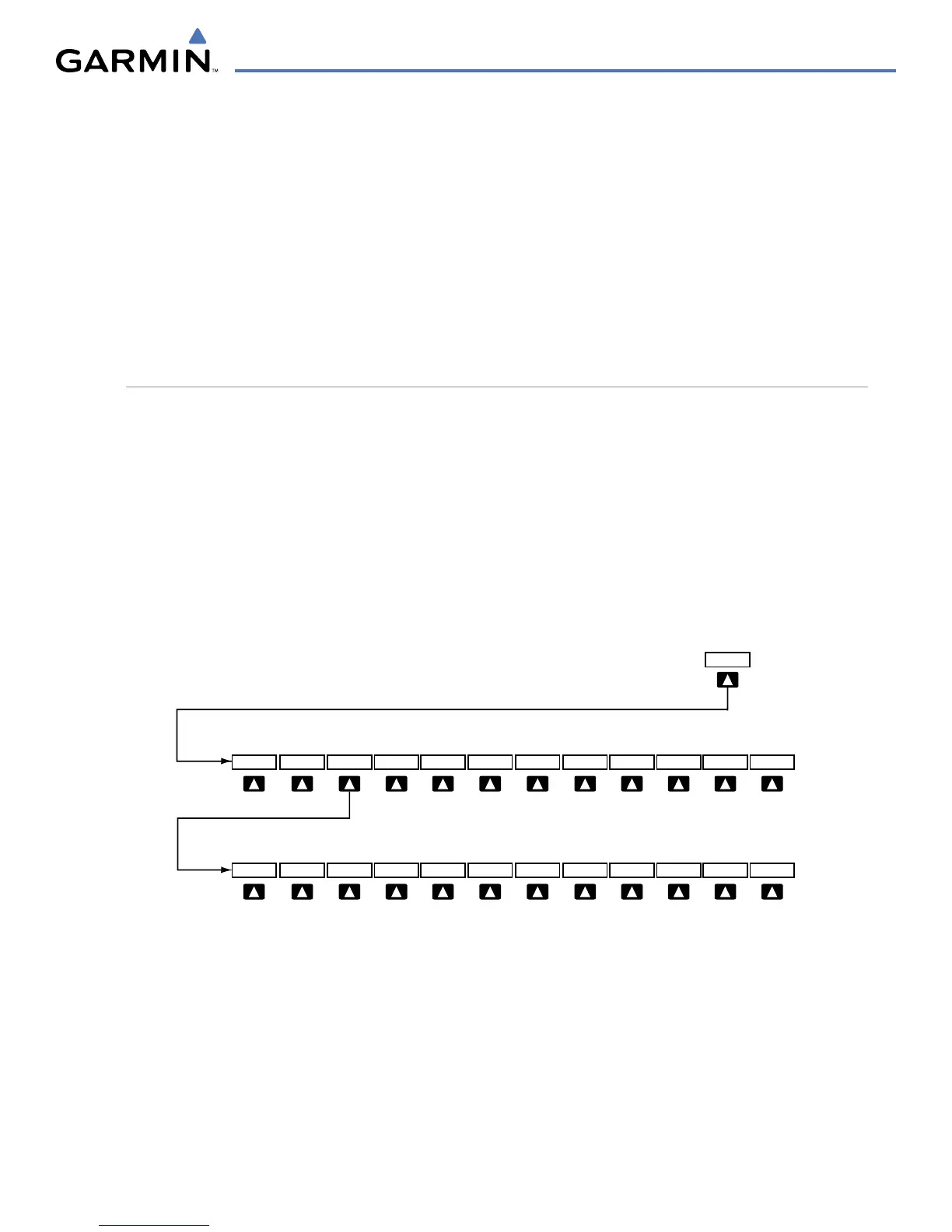

Figure 8-7 ChartView SHW CHRT, Chart Selection, and Chart Option Softkeys
Selecting the GO BACK Softkey returns
to the top-level softkeys and previous page.
Selecting the BACK Softkey returns
to the Chart Selection Softkeys.
MINIMUMS
CHRT OPT
CHRT
INFO
DP
STAR
APR
WX
NOT
AM
GO BACK
SHW CHR
T
ALL
HEADER
PLAN
PROFILE
FIT WDTH
FULL SCN BACK
To Next Page
