190-00709-00 Rev. A
Garmin G1000 Pilot’s Guide for the Socata TBM 850
2-15
FLIGHT INSTRUMENTS
The Arc HSI is a 140˚ expanded section of the compass rose. The Arc HSI contains a Course Pointer,
To/From Indicator, a sliding deviation indicator (the To/From and deviation indicators are combined), and a
deviation scale. Upon station passage, the To/From Indicator flips and points to the tail of the aircraft, just like
a conventional To/From flag. Depending on the navigation source, the CDI on the Arc HSI can appear in two
different ways: an arrowhead (GPS, VOR, OBS) or a diamond (LOC).
Lateral
Deviation
Scale
Navigation
Source
Course Deviation
and To/From
Indicator

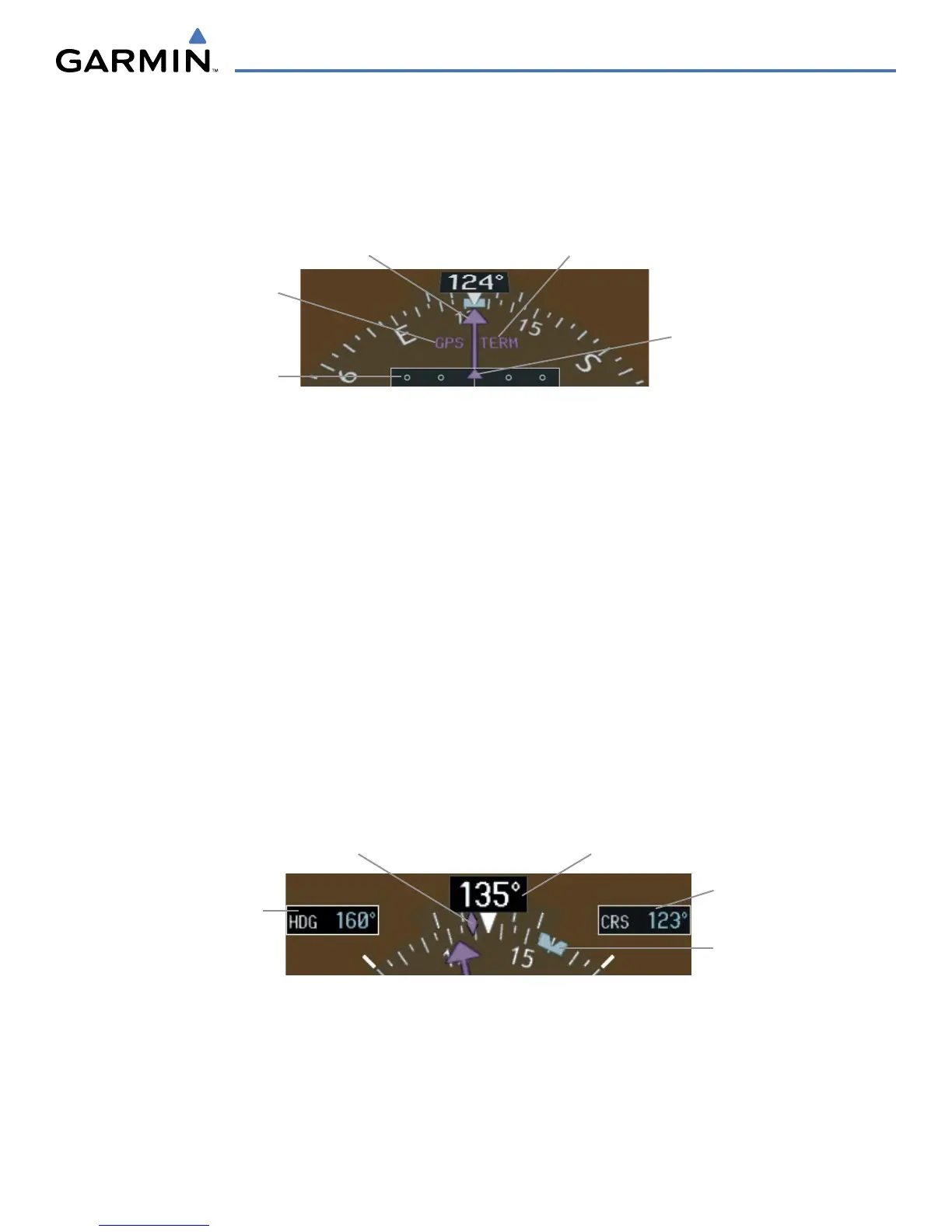

Figure 2-24 Arc HSI
Course Pointer
Flight Phase Annunciation
The Selected Heading is shown to the upper left of the HSI for 3 seconds after being adjusted The light blue
bug on the compass rose corresponds to the Selected Heading. While the HSI is displayed as an arc, if the
Selected Heading Bug is adjusted off the shown portion of the compass rose, the digital reading displayed.
Adjusting the Selected Heading:
Turn the
HDG
Knob to set the Selected Heading.
Press the HDG Knob to synchronize the bug to the current heading.
The Selected Course is shown to the upper right of the HSI for 3 seconds after being adjusted. While the
HSI is displayed as an arc, the Selected Course is displayed whenever the Course Pointer is not within the 140˚
currently shown.
Adjusting the Selected Course:
Turn the
CRS
Knob to set the Selected Course.
Press the CRS Knob to re-center the CDI and return the course pointer to the bearing of the active waypoint or
navigation station (see OBS Mode for adjusting a GPS course).
Selected
Heading
Bug
Selected
Course
Selected
Heading
Figure 2-25 Heading and Course Indications
Current Heading
Current Track Bug
