Garmin G1000 Pilot’s Guide for the Socata TBM 850
190-00709-00 Rev. A1-2
SYSTEM OVERVIEW

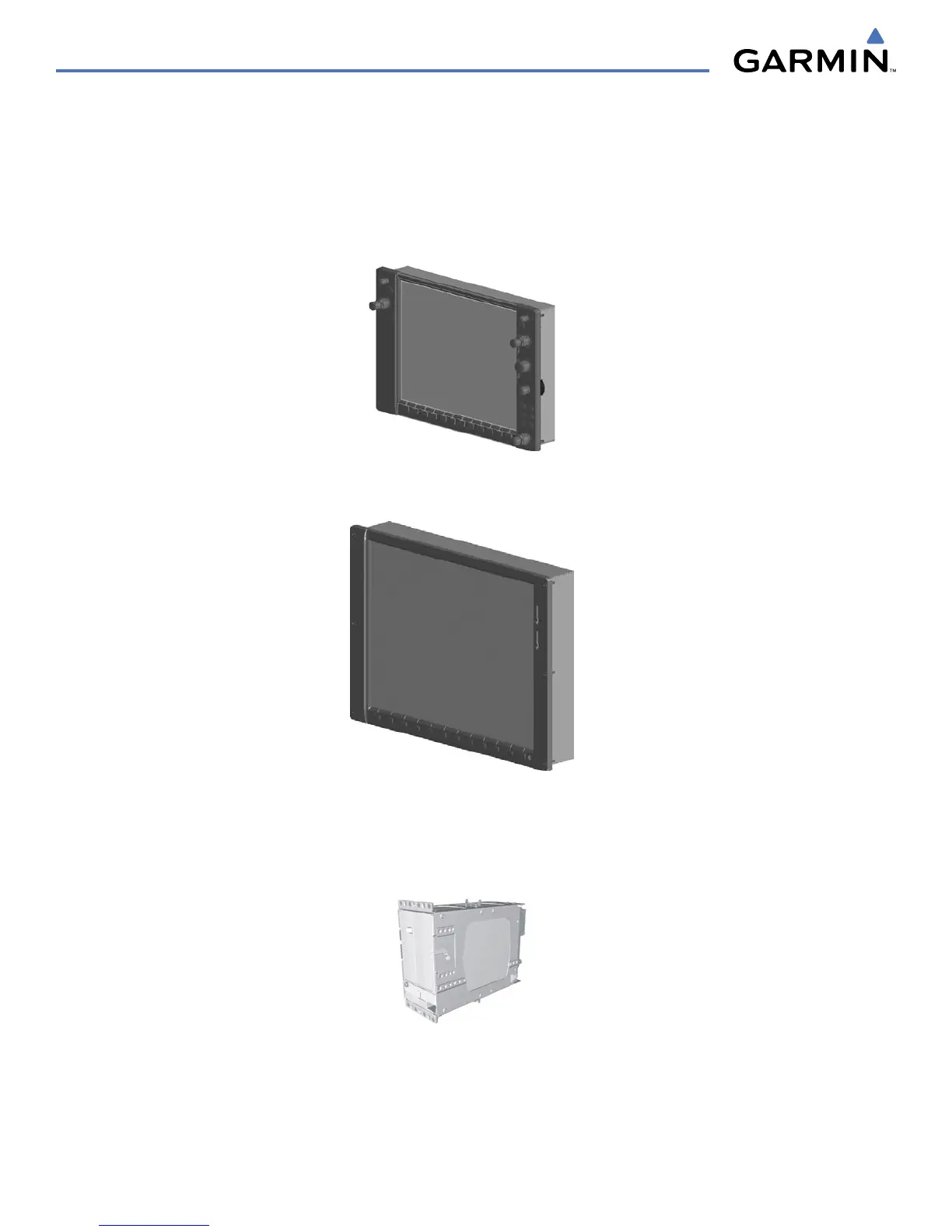

1.2 LINE REPLACEABLE UNITS (LRU)
•
GDU 1040A
– Each unit is configured as a PFD that features a 10.4-inch LCD with 1024 x 768 resolution.
The unit installed on the left/pilot side is designated as PFD1, and the one installed on the right/copilot side
is designated as PFD2. These units communicate with each other, the MFD, and with the on-side GIA 63W
Integrated Avionics Unit through a High-Speed Data Bus (HSDB) connection.
•
GDU 1500
– Features a 15-inch LCD with 1024 x 768 resolution and is configured as an MFD. This unit is
linked to both PFDs via HSDB connection.
•
GIA 63W
– Functions as the main communication hub, linking all LRUs with the on-side PFD. Each GIA 63W
contains a GPS WAAS receiver, VHF COM/NAV/GS receivers, a flight director (FD) and system integration
microprocessors. Each GIA 63W is paired with the on-side PFD via HSDB connection. The GIA 63Ws are not
paired together and do not communicate with each other directly.
