Garmin G1000 Pilot’s Guide for the Socata TBM 850
190-00709-00 Rev. A
3-8
ENGINE & AIRFRAME SYSTEMS
3.2 SYNOPTICS
The Synoptics pages show current conditions of certain aircraft functionality on aviation system diagrams,
reducing workload by allowing the flight crew to rapidly analyze the situation. Aircraft systems graphically
depicted in the synoptic diagrams include:
• Electrical system
• Fuel system
• Anti-ice system
• Doors
Once the
SYSTEM Softkey is selected, the Synoptics pages can be accessed using softkeys or the small FMS
Knob. To return to the previously displayed page when a Synoptics Page has been displayed, press the SYSTEM
Softkey or CLR Key, or turn the large FMS Knob.
SYSTEM
SYSTEM
CAS
MAP
ELEC
CHKLIST
FUEL
GEN
RA TEST

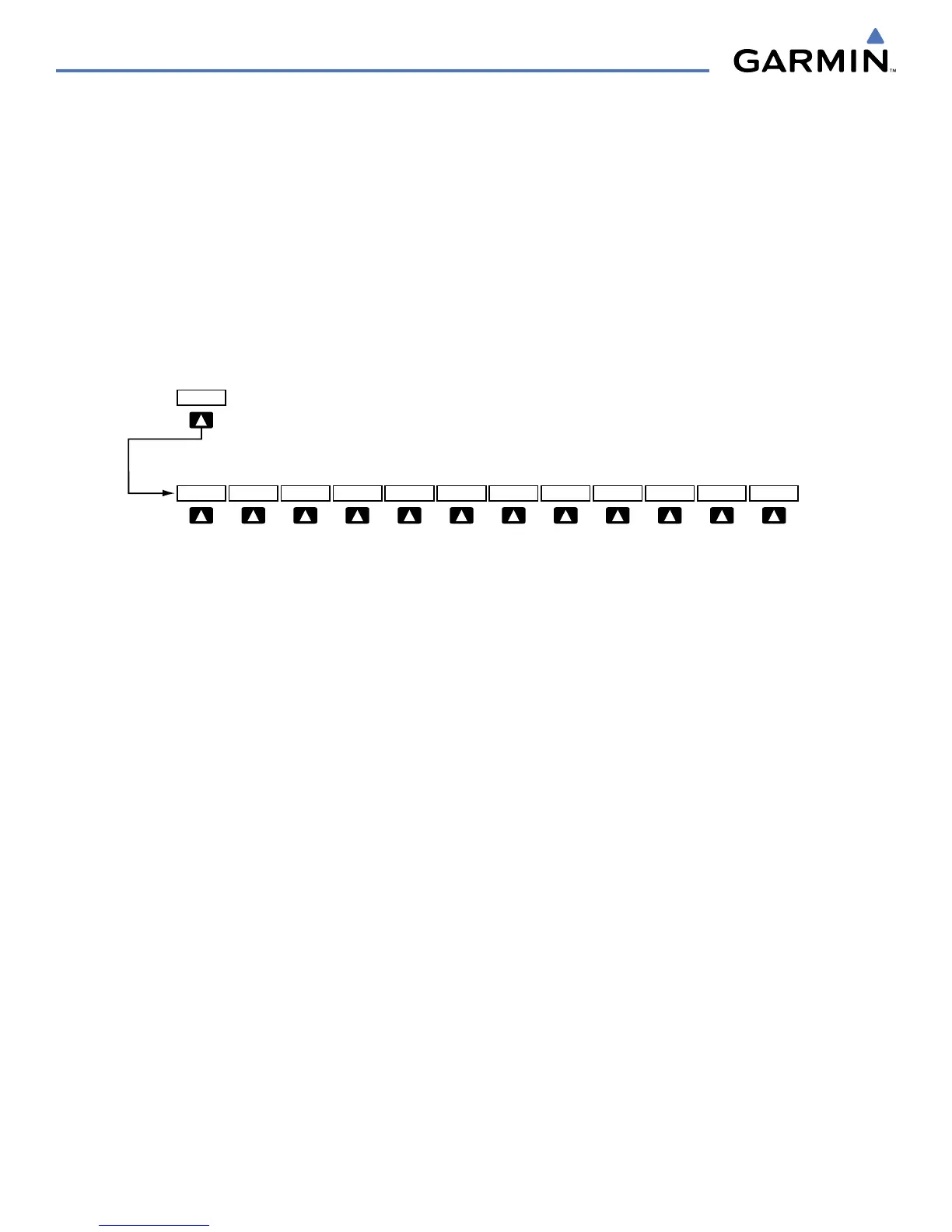

Figure 3-14 Synoptic Pages Softkeys
• SYSTEM
Accesses the Synoptics page softkeys
• ELEC
Displays the Electrical Synoptics Page
• FUEL
Displays the Fuel Synoptics Page
• GEN
Displays the General Synoptics Page for the anti-ice system and doors
