Garmin G1000 Pilot’s Guide for the Socata TBM 850
3-3
ENGINE & AIRFRAME SYSTEMS
3.1 ENGINE INDICATION SYSTEM (EIS)

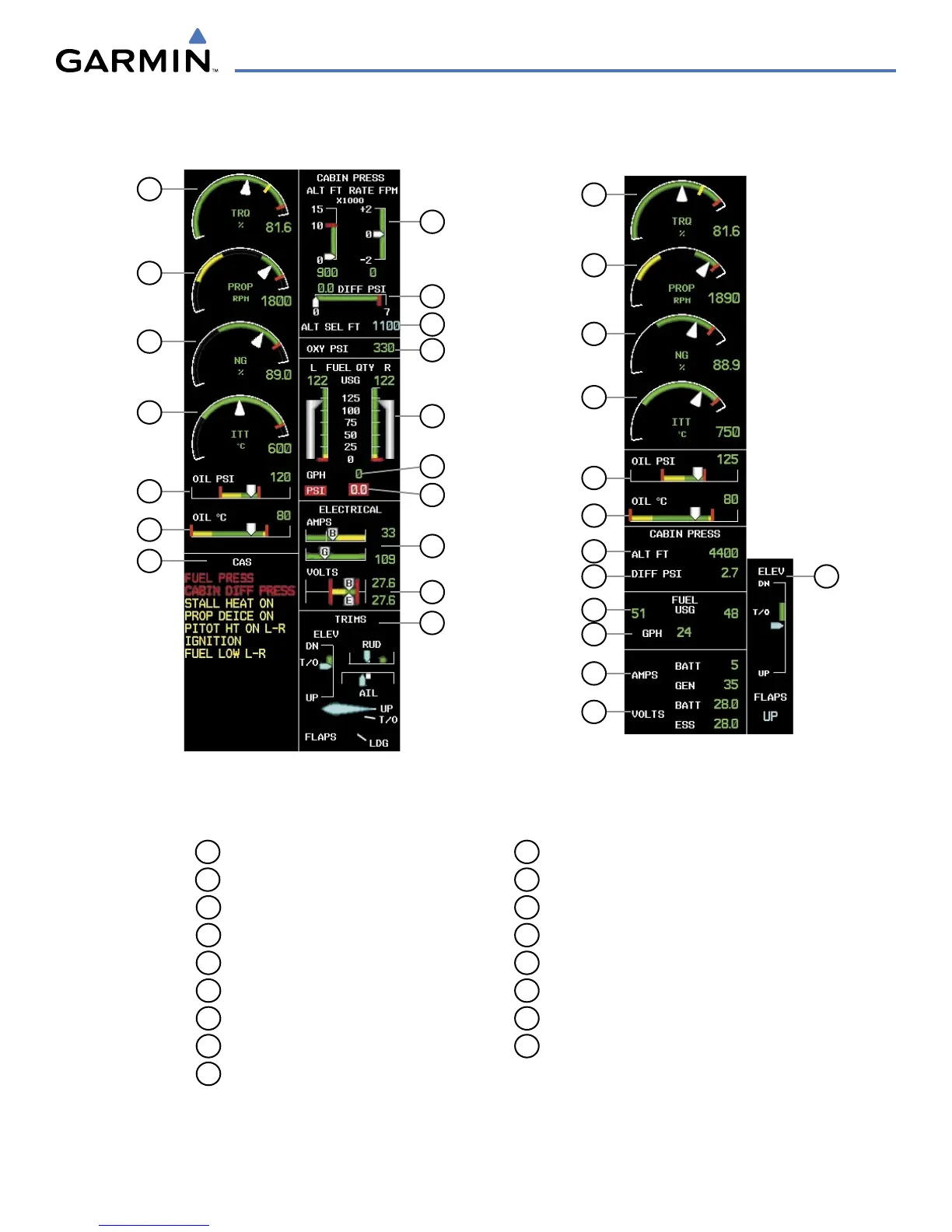

Figure 3-4 EIS Display (Reversionary Mode)
17
1
5
6
4
3
2
9
8
12
13
15
16
1
Torque
2
Propeller Speed
3
Generator Speed
4
Interturbine Temperature
5
Oil Pressure
6
Oil Temperature
7
CAS Display
8
Cabin Pressure Altitude and Change Rate
9
Differential Pressure
10
Selected Cabin Altitude
11
Oxygen Pressure
12
Fuel Quantity
13
Fuel Flow
14
Fuel Pressure
15
Battery and Generator Currents
16
Battery and Essential Bus Voltages
17
Elevator, Aileron, and Rudder Trim and Flap
Position
Figure 3-3 EIS Display (Normal Mode)
4
3
2
1
8
9
10
6
5
7
11
12
13
14
15
16
17
