Garmin G1000 Pilot’s Guide for the Socata TBM 850
190-00709-00 Rev. A 8-31
ADDITIONAL FEATURES
TERMINAL PROCEDURES CHARTS
Selecting Terminal Procedures Charts:
While viewing the Navigation Map Page, Nearest Airport Page, or Flight Plan Page, select the SHW CHRT
Softkey.
Or:
1) Press the MENU Key to display the PAGE MENU.
2) Turn the large FMS Knob to scroll through the OPTIONS Menu to Show Chart.
3) Press the ENT Key to display the chart.

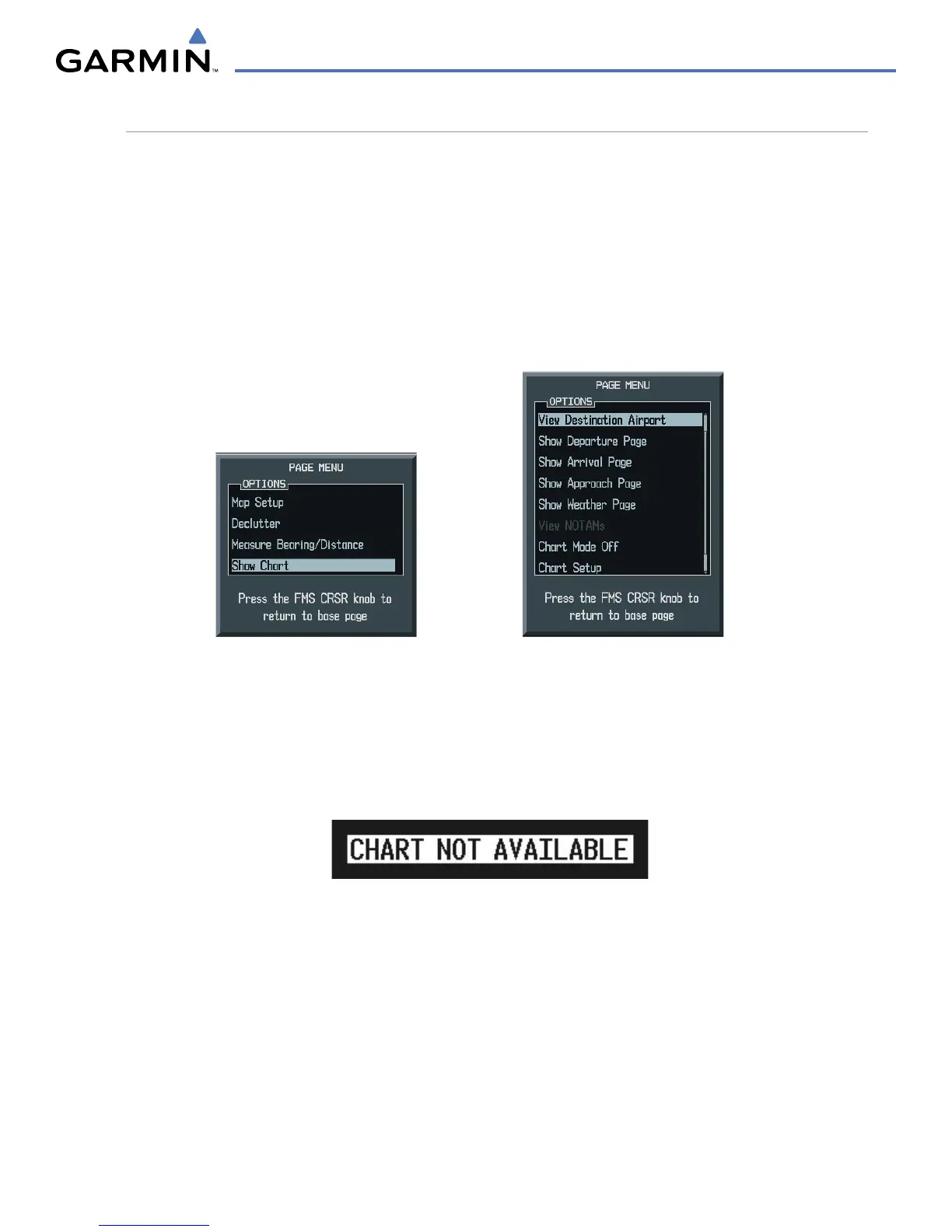

Navigation Map Page OPTIONS Menu Waypoint Airport Information Page OPTIONS Menu
Figure 8-36 Option Menus
When no terminal procedure chart is available, the banner CHART NOT AVAILABLE appears on the screen.
The CHART NOT AVAILABLE banner does not refer to the FliteCharts subscription, but rather the availability
of a particular airport chart selection or procedure for a selected airport.
Figure 8-37 Chart Not Available Banner
