ENGINE & AIRFRAME SYSTEMS
ELECTRICAL SYSTEM

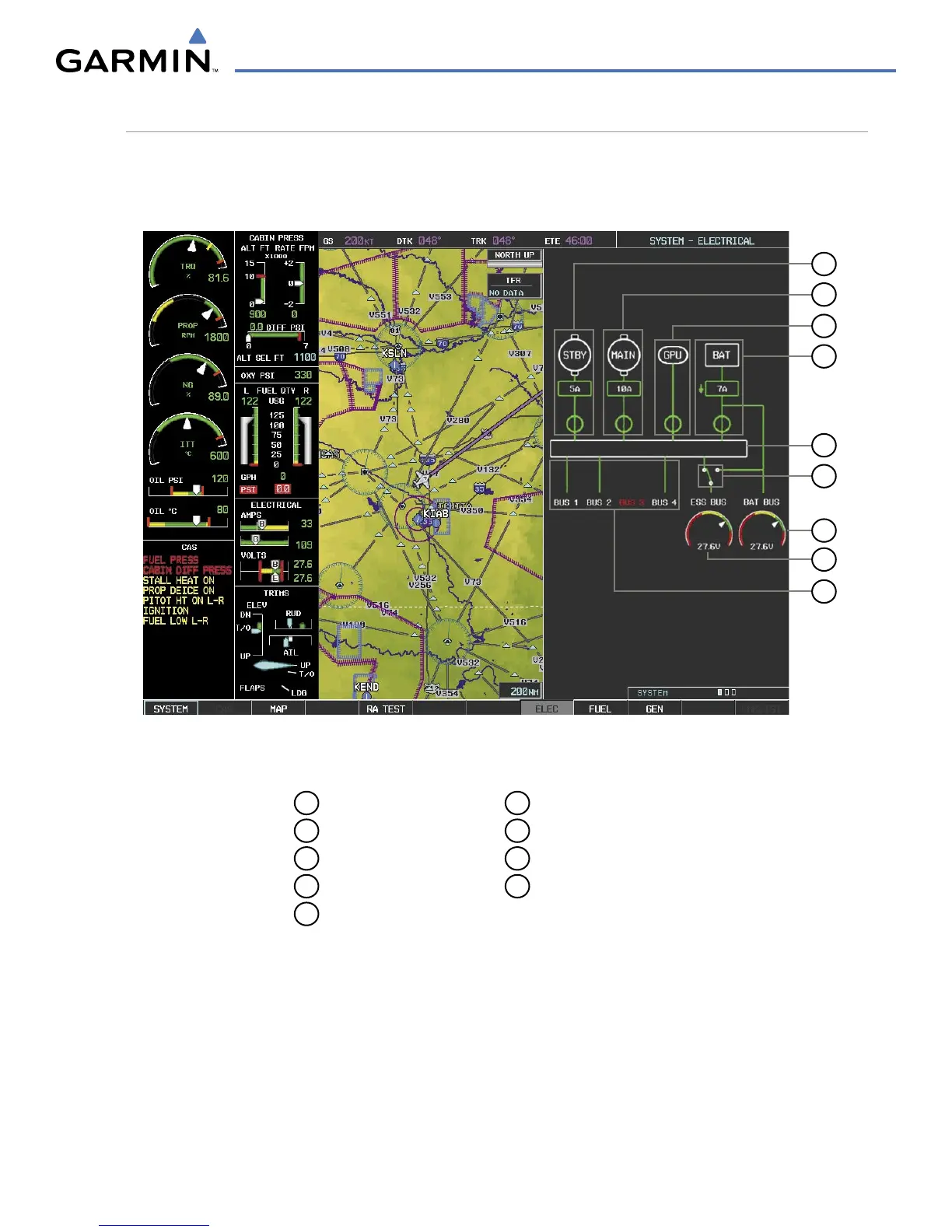

The Electrical Synoptics Page uses a diagram of the aircraft’s electrical system to display the system status. The
generators, ground power supply (GPU), batteries, and buses are shown in green to denote normal operation.
Color of the units change depending on the condition.
Figure 3-15 Electrical Synoptics Page
3
2
9
8
6
4
1
7
5
1
Standby Generator
2
Main Generator
3
Ground Power Unit Door
4
Battery
5
Main Bus
6
Emergency Switch
7
Battery Bus
8
Essential Bus
9
Power Buses
