3.6.4.4 Softkey Setup Page
The Softkey Setup page (Figure 3-7) allows the installer to configure the operation of Softkey 1 (top) and
Softkey 2 (bottom), per the options listed in Table 3-6. Note that both softkeys cannot select the same
function (except Disabled).
Refer to Section 3.6.4
to select the Softkey Setup Page. Use the LARGE Knob to scroll through the listed
functions, then use the SMALL Knob to adjust the setting of the function. After the setting has been
changed, turn the LARGE Knob to move the cursor to another function.

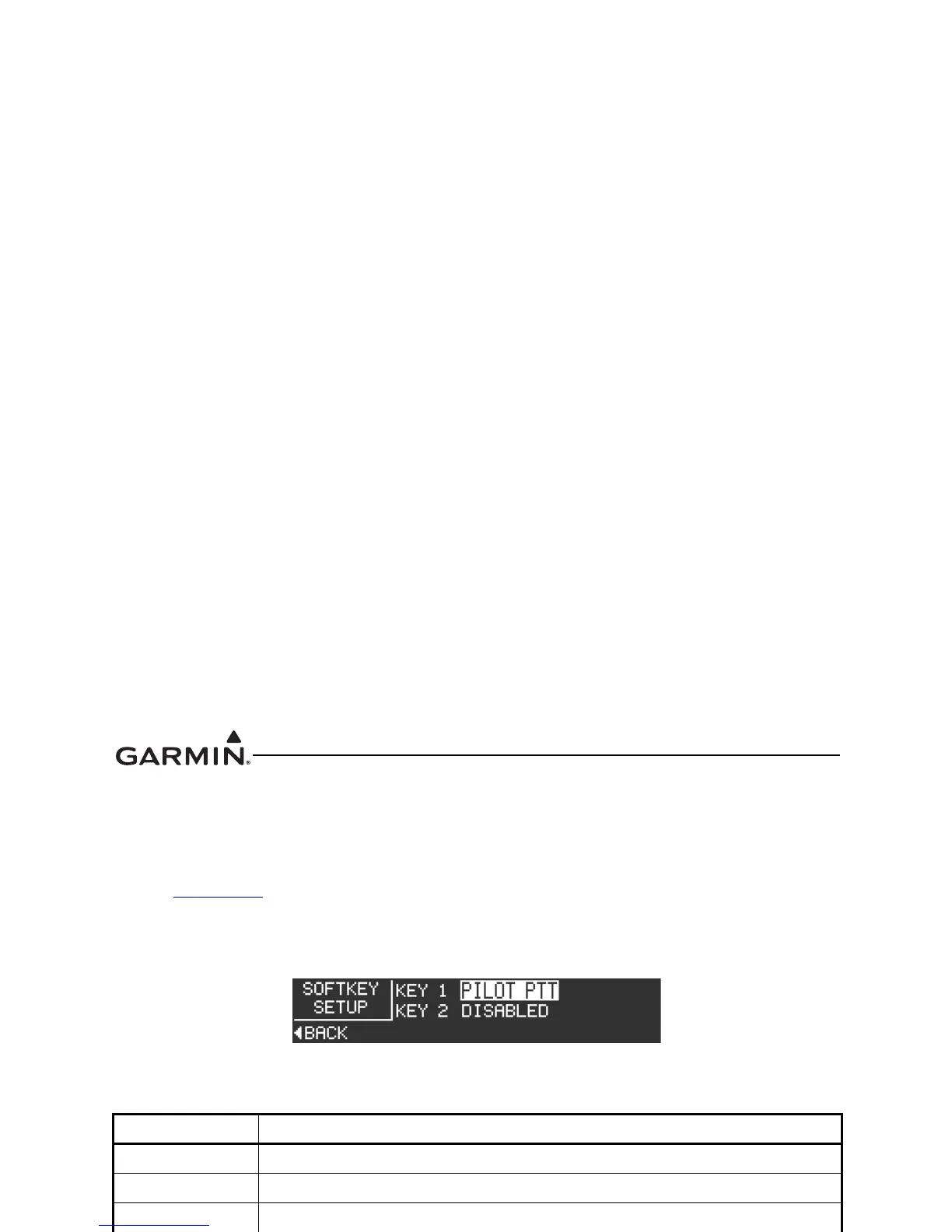

Figure 3-7 Softkey Setup Page
Table 3-6 Softkey Setup Page Selections
Selection Description
DISABLED Disables softkey.
PILOT PTT Radio transmits pilot MIC audio when key pressed.
PILOT
ISOLATION*
Isolates pilot from copilot and music.
MUSIC ON/OFF* Turns music input on/off.
USER LIST Moves directly to user frequency list menu.
TUNE
EMERGENCY
Sets active frequency to emergency frequency, 121.500.
*Indicates that function is not available when the intercom is set to off

Garmin GTR 200 Specifications

General

Modulation	AM
Operating Temperature	-20°C to +55°C
Channel Spacing	8.33 kHz / 25 kHz
Transmit Power	10 W
Operating Voltage	14/28 VDC systems
Frequency Range	118.000 - 136.975 MHz
