190-01553-00 GTR 200 Installation Manual
Rev. B Page 4-1
4 CONNECTOR PINOUT INFORMATION
4.1 Pin Function List
4.1.1 J2001 Connector

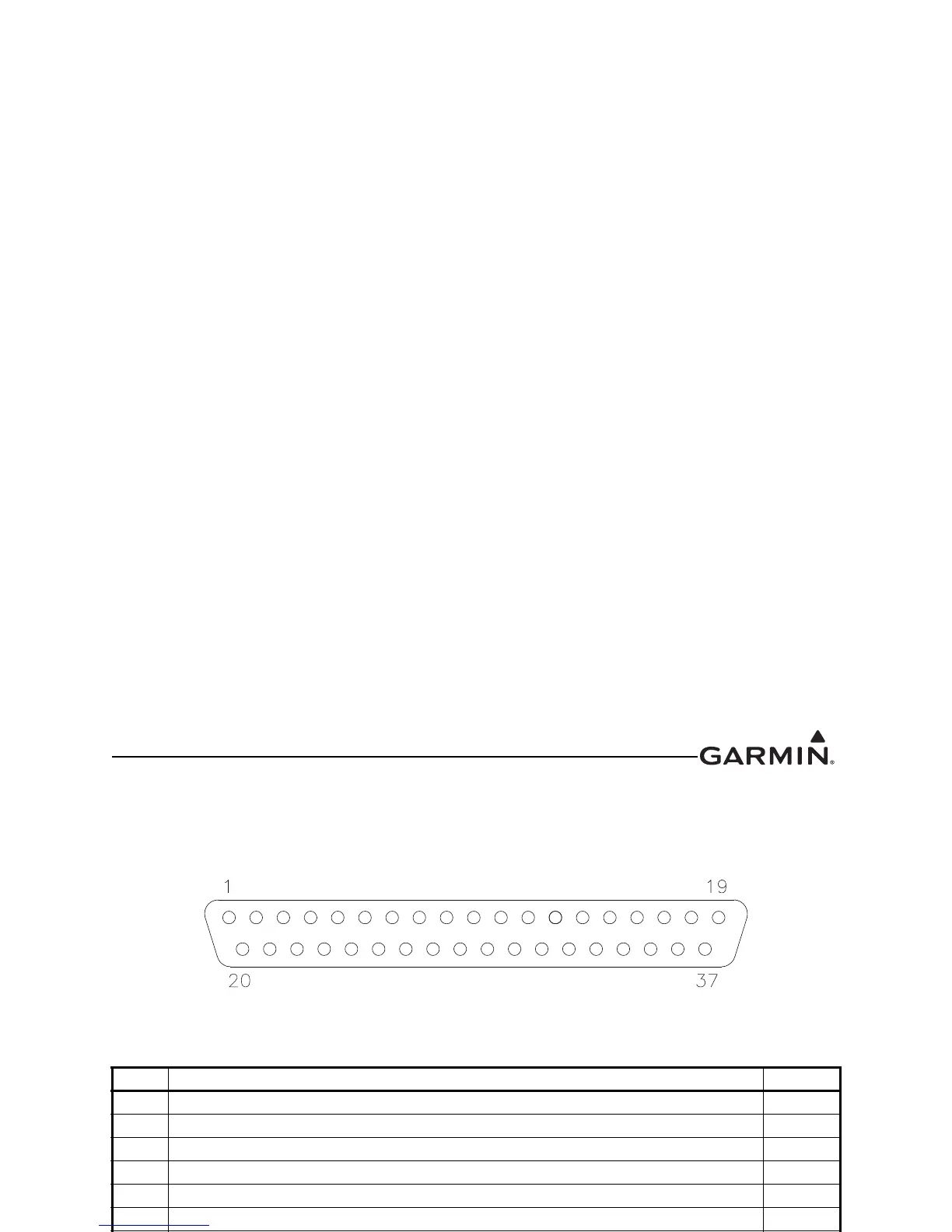

Figure 4-1 J2001 Looking at rear of unit
Table 4-1 J2001 Connector
Pin Pin Name I/O
1 AIRCRAFT POWER In
2 DISC 1* In
3 LIGHTING BUS IN In
4 TX INTERLOCK OUT Out
5 TX INTERLOCK IN* In
6 RESERVED --
7 RESERVED --
8 RESERVED --
9 AUX MONO IN 2 In
10 RECEIVER AUDIO OUT HI Out
11 COPILOT HS RIGHT Out
12 COPILOT HS LEFT Out
13 PILOT HS RIGHT Out
14 PILOT HS LEFT Out
15 COPILOT PTT* In
16 COPILOT MIC IN In
17 PILOT MIC IN In
18 MUSIC IN RIGHT In
19 MUSIC IN LEFT In
20 AIRCRAFT GROUND --
21 SPARE --
22 DISC 2* In
23 RS232 OUT Out
24 RS232 IN In
25 RESERVED --
26 RESERVED --
27 RESERVED --
28 AUX 2 LO --
*Indicates Active Low

Garmin GTR 200 Specifications

General

Modulation	AM
Operating Temperature	-20°C to +55°C
Channel Spacing	8.33 kHz / 25 kHz
Transmit Power	10 W
Operating Voltage	14/28 VDC systems
Frequency Range	118.000 - 136.975 MHz
