CHAPTER 4: INTERFACES ENERVISTA SOFTWARE INTERFACE
D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 4-9
4

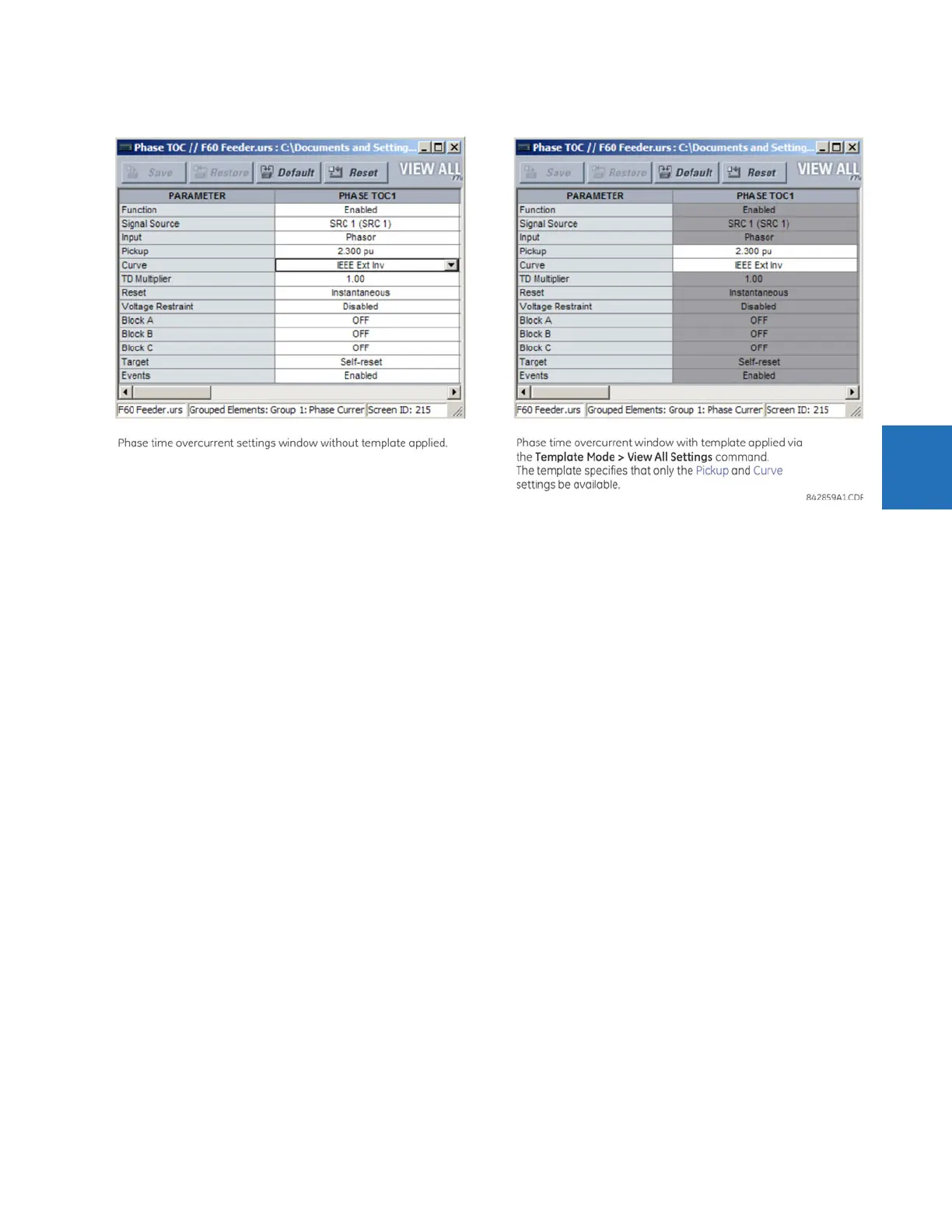

Figure 4-8: Applying templates using the View All Settings command
4.1.7.5 Remove the settings template
Once a settings template is removed, it cannot be reapplied and a new settings template needs to be defined before use.
1. Right-click the device in the Online or Offline Window area and select the Template Mode > Remove Template option.
2. Enter the template password if prompted and click OK to continue.
3. Confirm that you want to remove the template by clicking Yes.
The EnerVista software removes all template information and all settings are available.
4.1.8 Secure and lock FlexLogic equations
The UR allows users to secure some or all FlexLogic equations, preventing unauthorized viewing or modification of critical
FlexLogic applications. This is accomplished using the settings template feature to lock individual entries within FlexLogic
equations.
Secured FlexLogic equations remain secure when files are sent to and retrieved from any UR-series device.
Locking can be tied to the serial number too.
4.1.8.1 Lock FlexLogic equations
To lock individual entries of a FlexLogic equation:
1. Right-click the settings file or online device and select the Template Mode > Create Template item to enable the
settings template feature.
2. If prompted, enter the template password.
3. Select the FlexLogic > FlexLogic Equation Editor settings menu item.
By default, all FlexLogic entries are specified as viewable and display against a yellow background. The icon on the
upper right of the window also indicates that EnerVista UR Setup is in EDIT mode.
4. Specify the entries to lock by clicking them.
The locked entries display a grey background as shown in the example.
