5-286 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
CONTROL ELEMENTS CHAPTER 5: SETTINGS
5

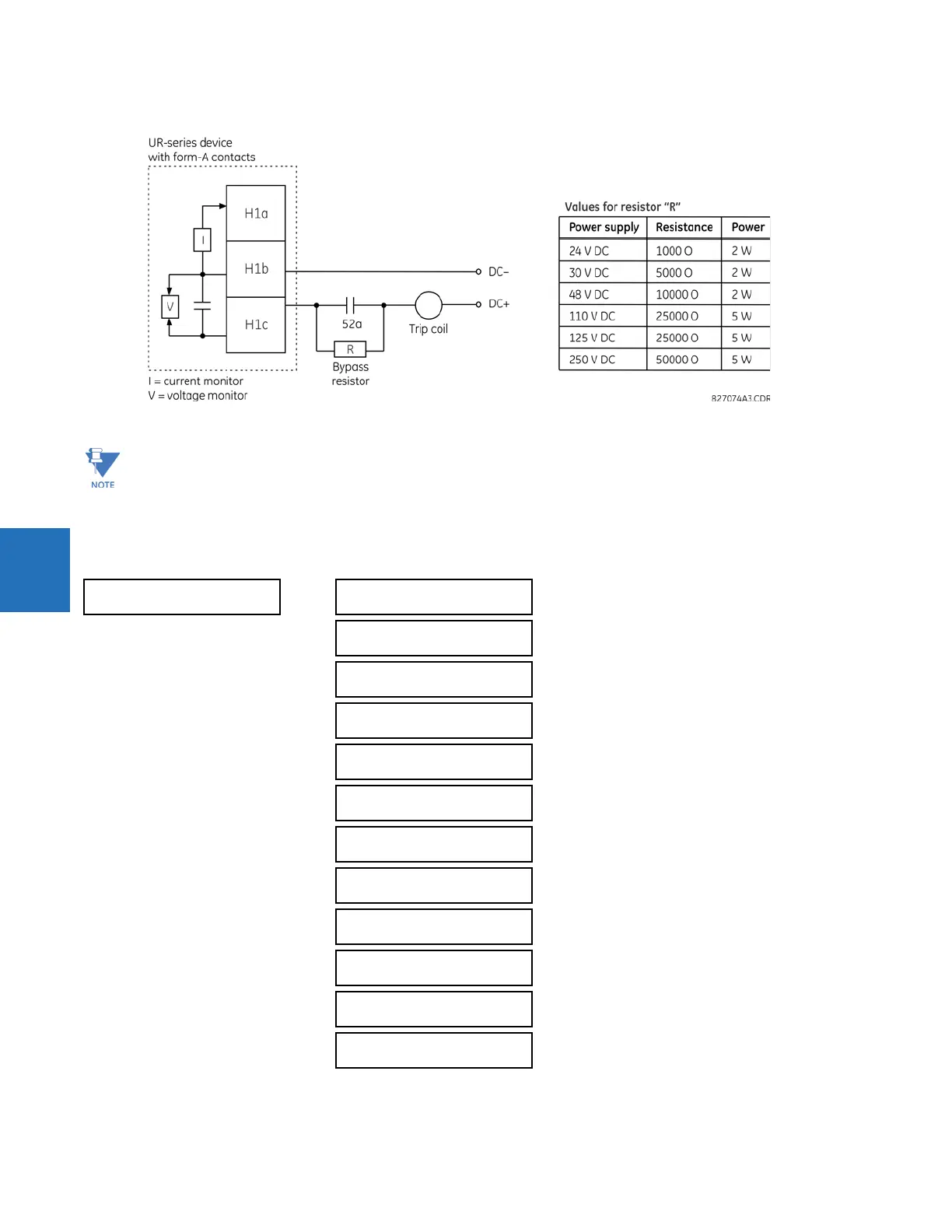

Figure 5-164: Trip circuit example 2
5.8.10 Digital counters
SETTINGS  CONTROL ELEMENTS  DIGITAL COUNTERS  COUNTER 1(8)
The wiring connection for two examples above is applicable to both form-A contacts with voltage monitoring and
solid-state contact with voltage monitoring.
 COUNTER 1


COUNTER 1
FUNCTION: Disabled
Range: Disabled, Enabled

COUNTER 1 NAME:
Counter 1
Range: up to 12 alphanumeric characters

COUNTER 1 UNITS: Range: up to six alphanumeric characters

COUNTER 1 PRESET:
0
Range: –2,147,483,648 to +2,147,483,647

COUNTER 1 COMPARE:
0
Range: –2,147,483,648 to +2,147,483,647

COUNTER 1 UP:
Off
Range: FlexLogic operand

COUNTER 1 DOWN:
Off
Range: FlexLogic operand

COUNTER 1 BLOCK:
Off
Range: FlexLogic operand

CNT1 SET TO PRESET:
Off
Range: FlexLogic operand

COUNTER 1 RESET:
Off
Range: FlexLogic operand

COUNT1 FREEZE/RESET:
Off
Range: FlexLogic operand

COUNT1 FREEZE/COUNT:
Off
Range: FlexLogic operand
