3-14 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
WIRING CHAPTER 3: INSTALLATION
3
3.3 Wiring
3.3.1 Typical wiring

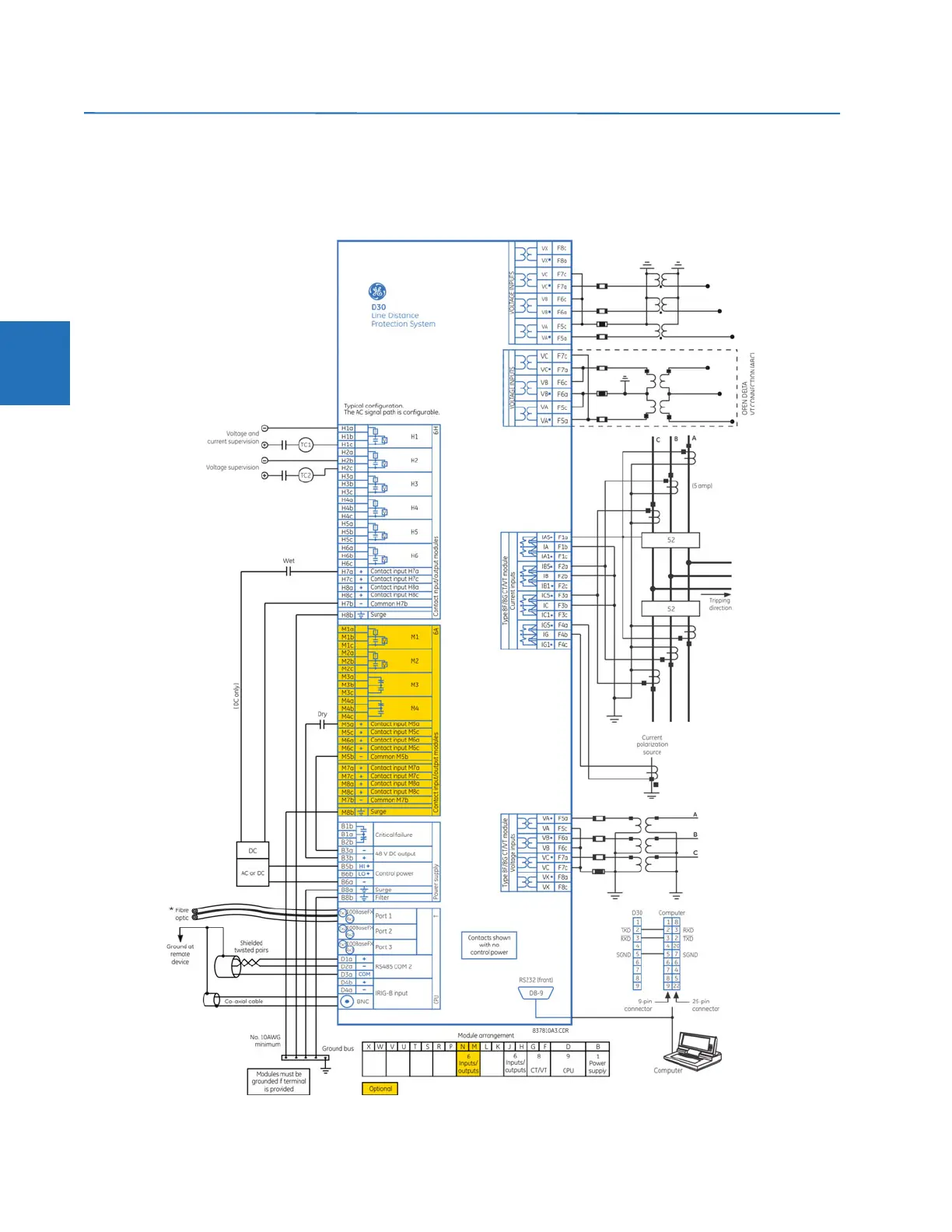

Figure 3-14: Typical wiring diagram (T module shown for CPU)
