CHAPTER 4: INTERFACES FRONT PANEL INTERFACE
D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 4-57
4
4.2.8 View actual values
4.2.8.1 Graphical front panel
In addition to data viewable in the Actual Values menu on the front panel, phasor diagrams and metered data can be
displayed. The metered data can be arranged as a table.
The update rate of metered values is 500 ms.
A phasor page for each configured AC Source and up to five user-configurable metering pages can be displayed. The
phasor pages are not configurable. Each phasor page shows a phasor plot and numerical values of all currents, voltages,
and symmetrical components of a single AC source.
The Annunciator and Metering pages can be configured to display data. Each has a user-configured number of rows and
columns. Each cell can include either configurable static text or the value of a selected FlexLogic operand, FlexAnalog
operand, or actual value.
To display a metering page, press the Home pushbutton, then the Metering Tab pushbutton. The first metering page
opens, with phasor pages listed before tabular pages. The Tab pushbuttons display any other metering page, as do the Up,
Down, Left and Right pushbuttons. The current page is highlighted with a blue Tab pushbutton.
Each phasor page has a name, which consists of the value of the SOURCE NAME # setting appended with " Phasors."
Phasor pages that have no configured CTs or VTs do not have a Tab pushbutton, and phasor pages that have no
configured cells cannot be displayed.

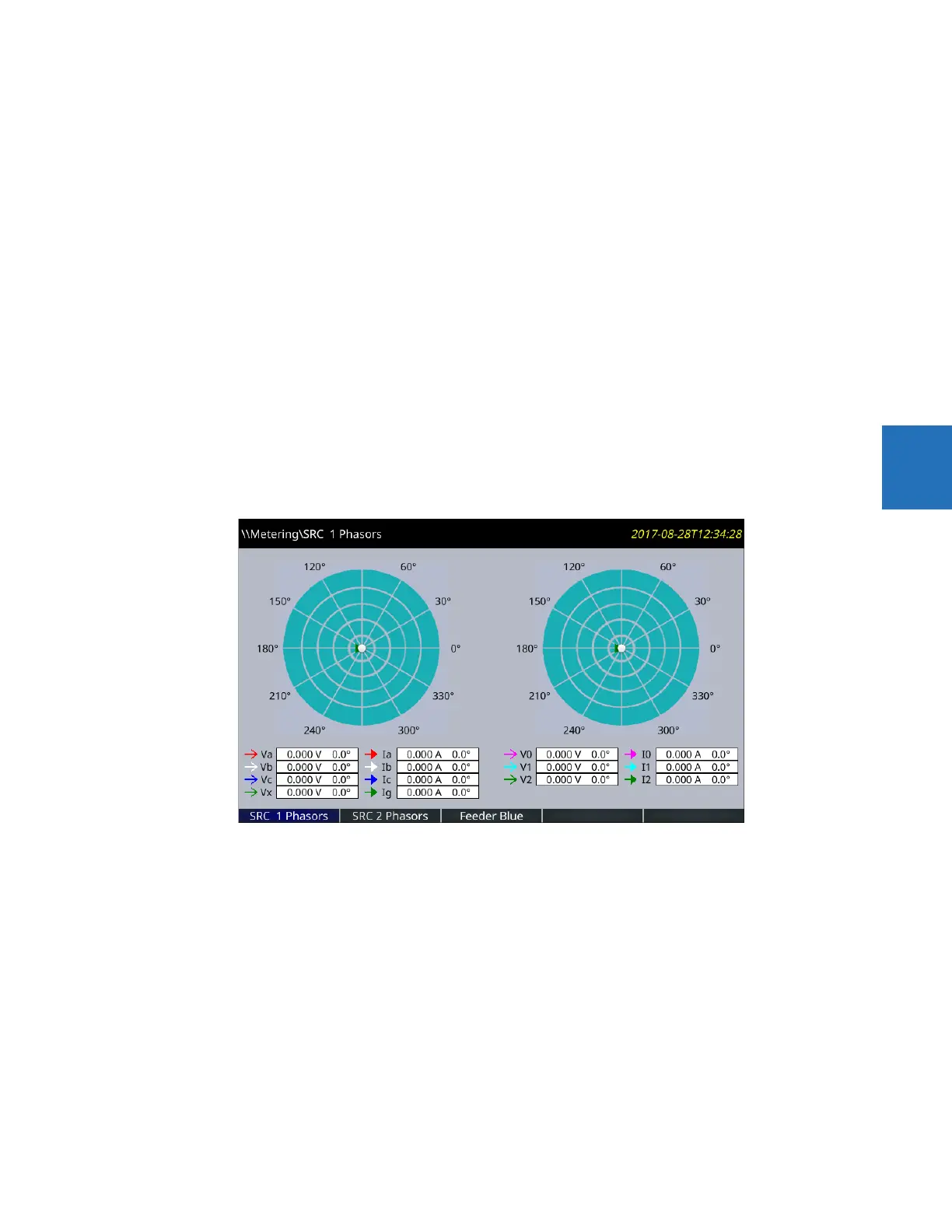

Figure 4-62: Phasor display
The configurable name displays in the header and Tab pushbutton label. Factory default names are Page 1, Page 2, and so
on.
