CHAPTER 5: SETTINGS GROUPED ELEMENTS
D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 5-191
5
LINE PICKUP EVENTS — This setting enables and disables the logging of line pickup events in the sequence of events
recorder.

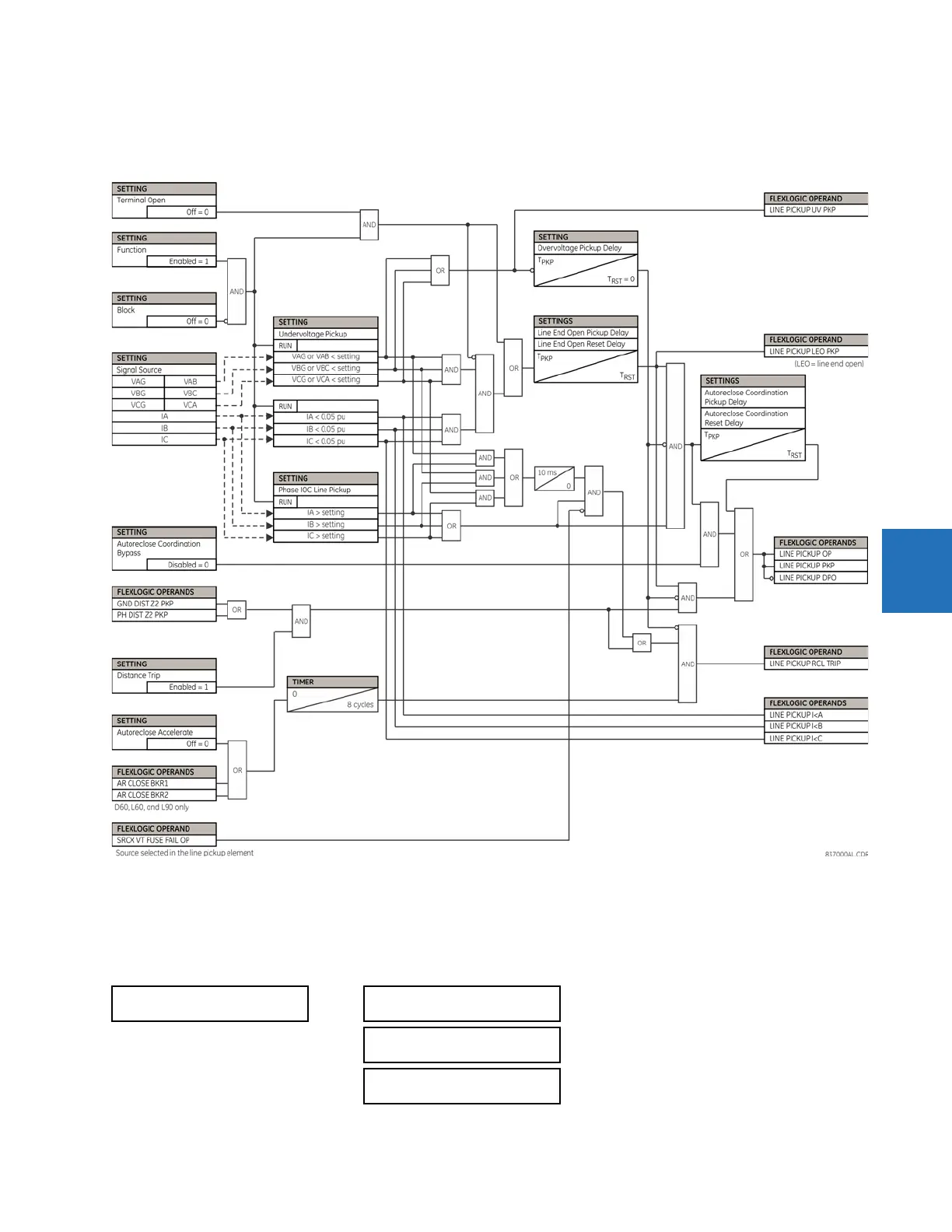

Figure 5-97: Line pickup logic
5.7.4 Distance
5.7.4.1 Menu
SETTINGS GROUPED ELEMENTS SETTING GROUP 1(6) DISTANCE
DISTANCE
DISTANCE
SOURCE: SRC 1
Range: SRC 1, SRC 2
MEMORY
DURATION: 10 cycles
Range: 5 to 25 cycles in steps of 1
FORCE SELF-POLAR:
Off
Range: FlexLogic operand
To Next Page
