6-4 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
STATUS CHAPTER 6: ACTUAL VALUES
6
6.2.2 Graphical front panel
Annunciator alarms can be acknowledged and reset in this section.
To view alarms for the graphical front panel in EnerVista:
1. Access Actual Values > Graphical Panel > Annunciator Panel. Alarms are listed, allowing remote acknowledgement/
reset.
2. Click the Acknowledge or Reset button for an alarm.

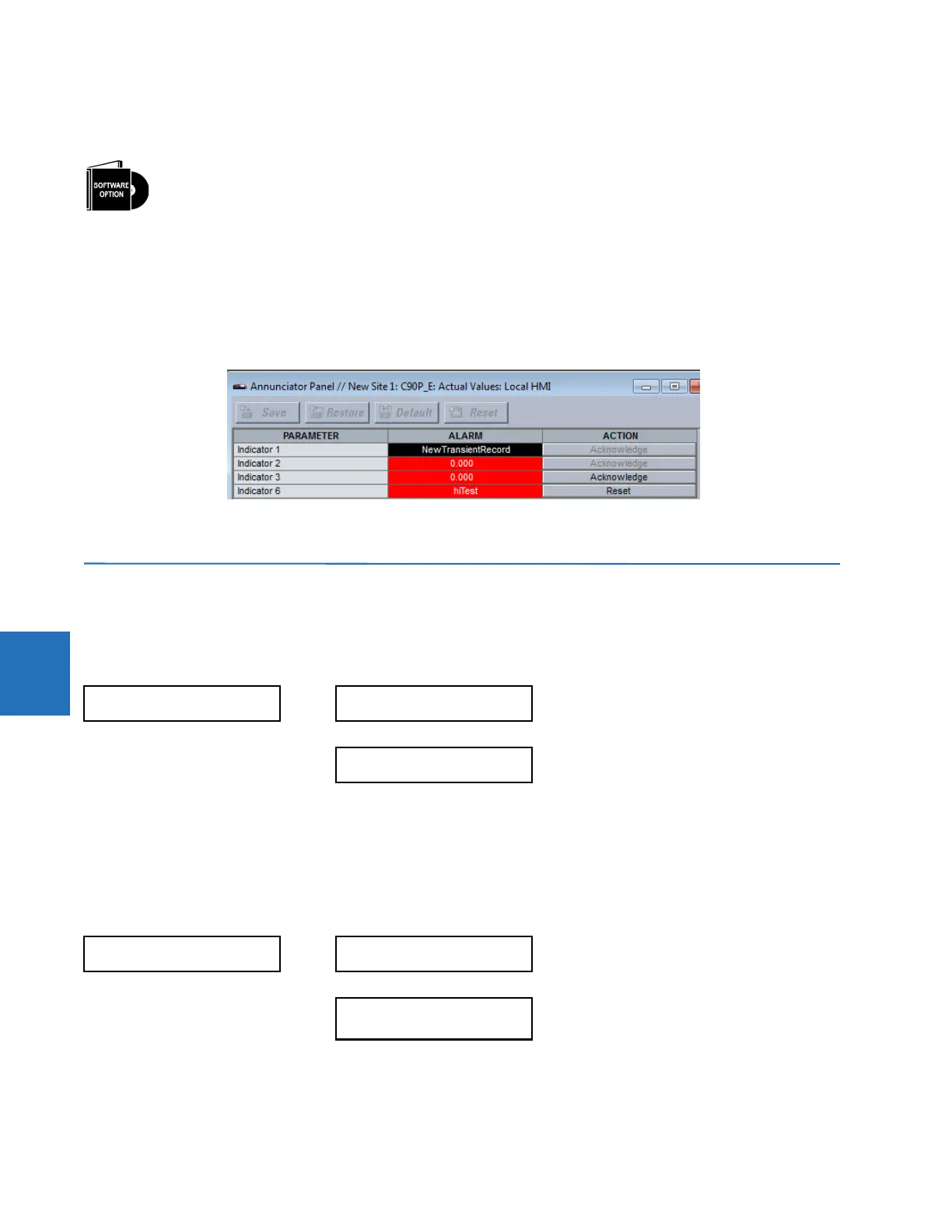

Figure 6-2: Annunciator alarms displayed in the software)
6.3 Status
6.3.1 Contact inputs
ACTUAL VALUES  STATUS  CONTACT INPUTS
The present status of the contact inputs is shown here. The first line of a message display indicates the ID of the contact
input. For example, ‘Cont Ip 1’ refers to the contact input in terms of the default name-array index. The second line of the
display indicates the logic state of the contact input.
6.3.2 Virtual inputs
ACTUAL VALUES  STATUS  VIRTUAL INPUTS
The present status of the 64 virtual inputs is shown here. The first line of a message display indicates the ID of the virtual
input. For example, ‘Virt Ip 1’ refers to the virtual input in terms of the default name. The second line of the display indicates
the logic state of the virtual input.
The graphical front panel is a hardware option.
 CONTACT INPUTS


Cont Ip 1
Off
Range: On, Off


Cont Ip xx
Off
Range: On, Off
 VIRTUAL INPUTS


Virt Ip 1
Off
Range: On, Off


Virt Ip 64
Off
Range: On, Off
