GE D30 User Manual

CHAPTER 5: SETTINGS GROUPED ELEMENTS
D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 5-239
5

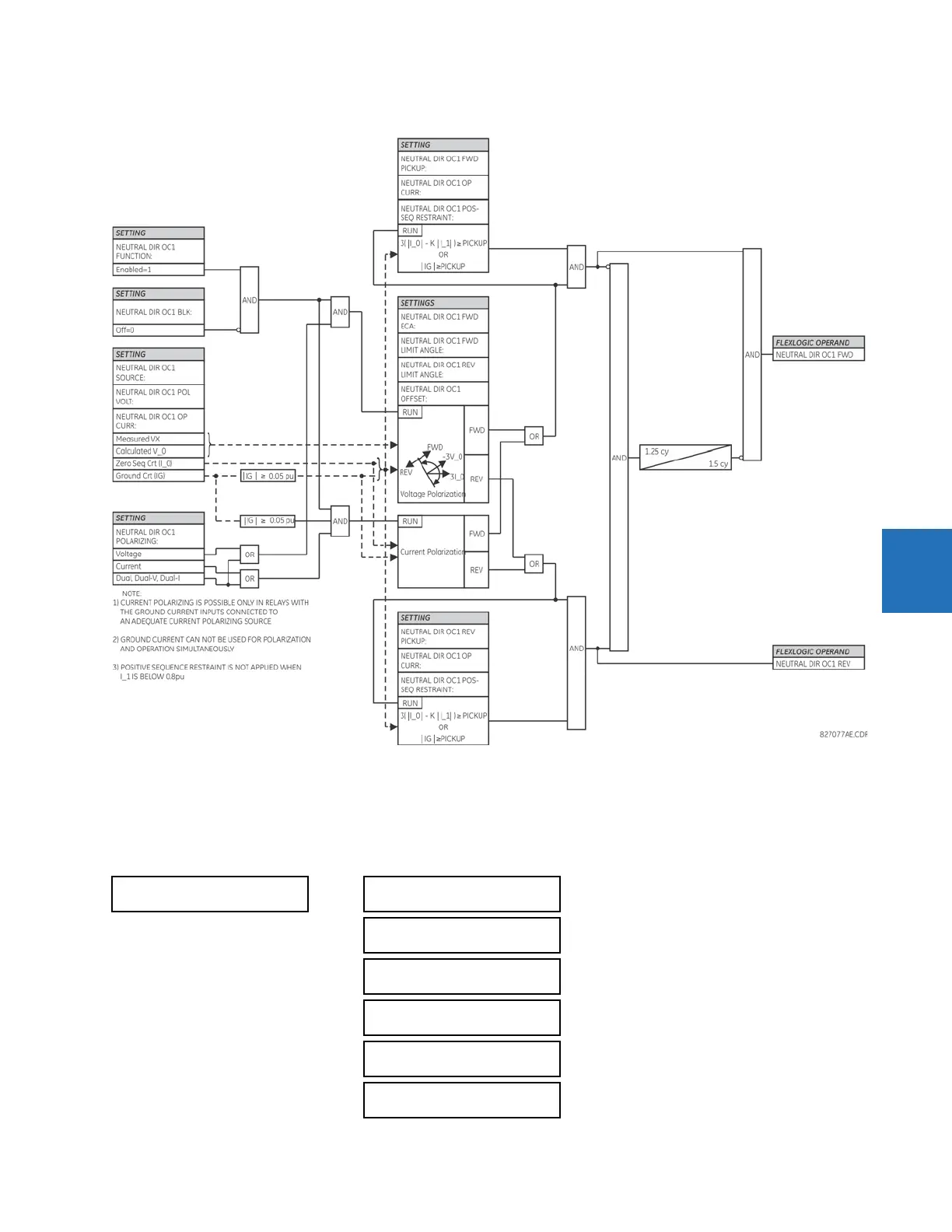

Figure 5-132: Neutral directional overcurrent logic
5.7.9 Wattmetric ground fault
5.7.9.1 Wattmetric zero-sequence directional (ANSI 32N, IEC PSDE)
SETTINGS  GROUPED ELEMENTS  SETTING GROUP 1(6)  WATTMETRIC...  WATTMETRIC GROUND FAULT 1(2)
 WATTMETRIC
 GROUND FAULT 1

WATTMETRIC GND FLT 1
FUNCTION: Disabled
Range: Disabled, Enabled

WATTMETRIC GND FLT 1
SOURCE: SRC 1
Range: SRC 1, SRC 2

WATTMETRIC GND FLT 1
VOLT: Calculated VN
Range: Calculated VN, Measured VX

WATTMETRIC GND FLT 1
OV PKP: 0.20 pu
Range: 0.02 to 3.00 pu in steps of 0.01

WATTMETRIC GND FLT 1
CURR: Calculated IN
Range: Calculated IN, Measured IG

WATTMETRIC GND FLT 1
OC PKP: 0.060 pu
Range: 0.002 to 30.000 pu in steps of 0.001
