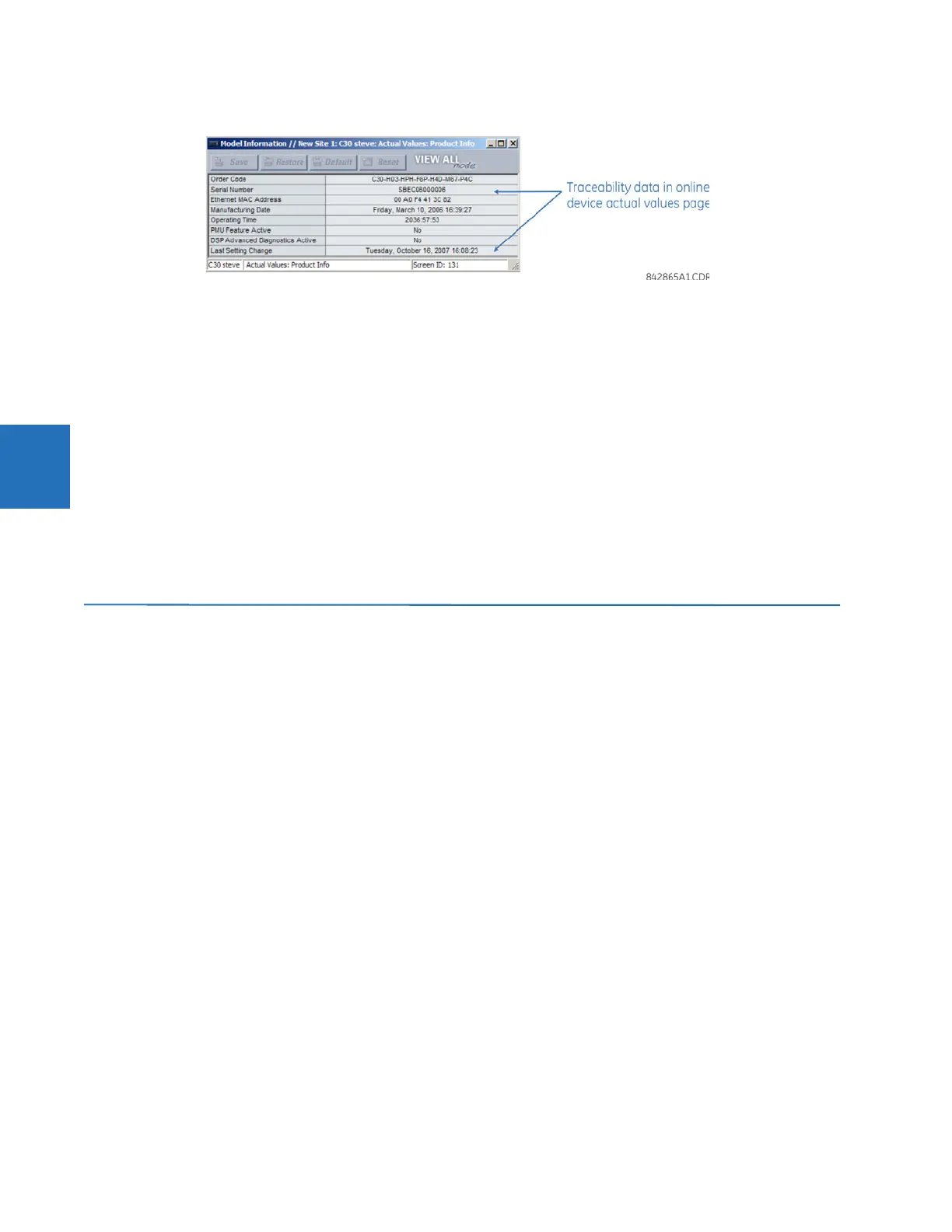

Figure 4-16: Traceability data in Actual Values window
This information is also available from the front panel display through the following actual values:
ACTUAL VALUES  PRODUCT INFO  MODEL INFORMATION  SERIAL NUMBER
ACTUAL VALUES  PRODUCT INFO  MODEL INFORMATION  LAST SETTING CHANGE
4.1.9.3 Additional traceability rules
The following additional rules apply for the traceability feature:
• If the user changes any settings within the settings file in the offline window, then the traceability information is
removed from the settings file
• If the user creates a new settings file, then no traceability information is included in the settings file
• If the user converts an existing settings file to another revision, then any existing traceability information is removed
from the settings file
• If the user duplicates an existing settings file, then any traceability information is transferred to the duplicate settings
file
4.2 Front panel interface
This section explains use of the enhanced, standard, and graphical front panels.
4.2.1 Front panel
4.2.1.1 Enhanced front panel
The enhanced front panel consists of LED panels, an RS232 port, keypad, LCD display, control pushbuttons, and optional
user-programmable pushbuttons.
The front panel is hinged to allow access to removable modules inside the chassis.
