4-16 L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL
FRONT PANEL INTERFACE CHAPTER 4: INTERFACES
4

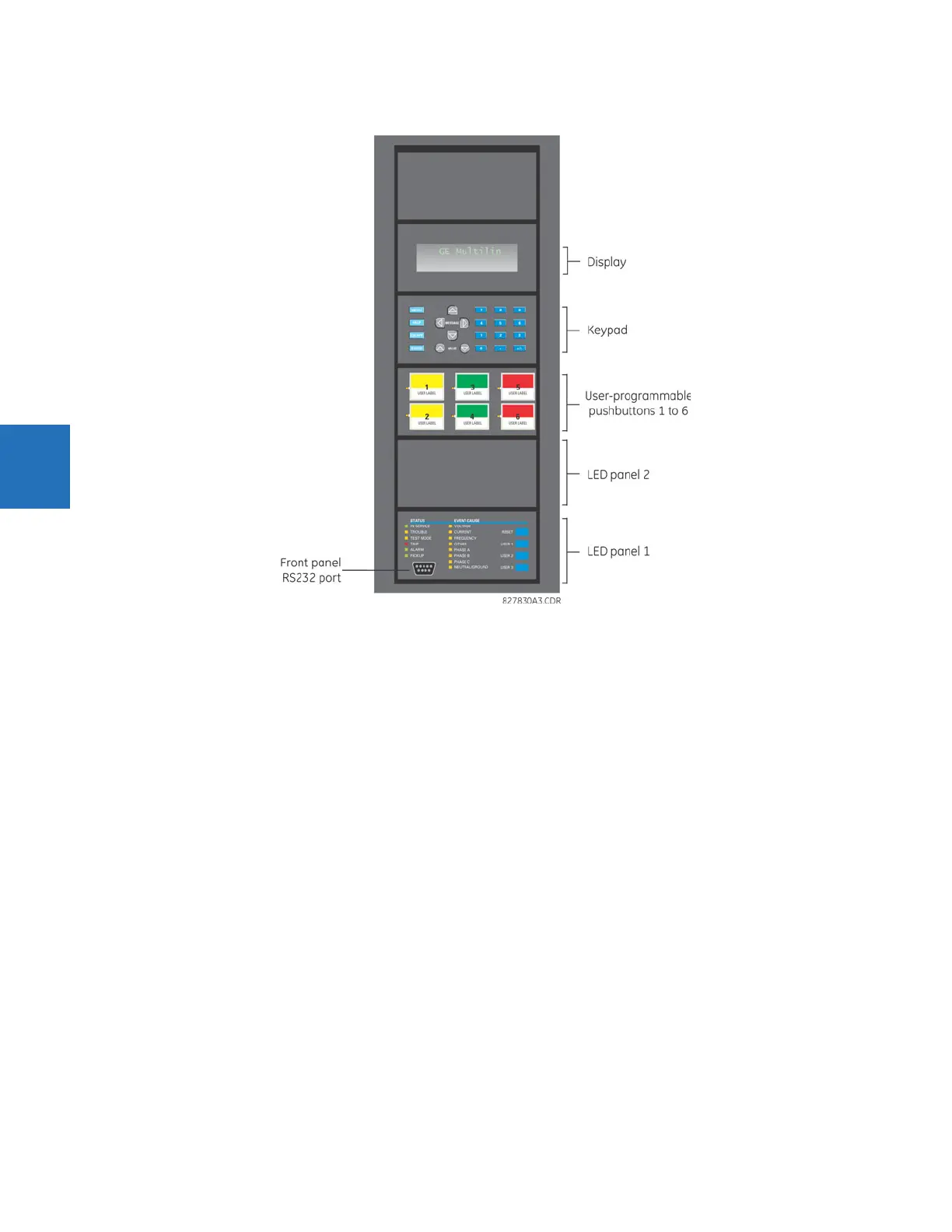

Figure 4-19: Standard vertical front panel
4.2.1.3 Graphical front panel
The graphical front panel consists of a USB port, LED panel, color screen display, user-programmable pushbuttons, and
navigation keys. The screen is used to read data, such as metering actual values, alarms, self-test messages, and event
records, and for viewing single-line diagrams. Settings can be changed on the front panel except for the graphical front
panel itself and for IEC 61850. The USB port connects to a computer with the EnerVista software and can be used to
upgrade the relay and to transfer files and settings. The USB port is the square type B.
User-programmable pushbuttons 9 to 16 can be programmed among the 10 pushbuttons on the left and right sides of the
display.
