Chapter 7: Digital Detector
5495975-1EN Rev.9 7-9
© 2013-2017 General Electric Company. All rights reserved.

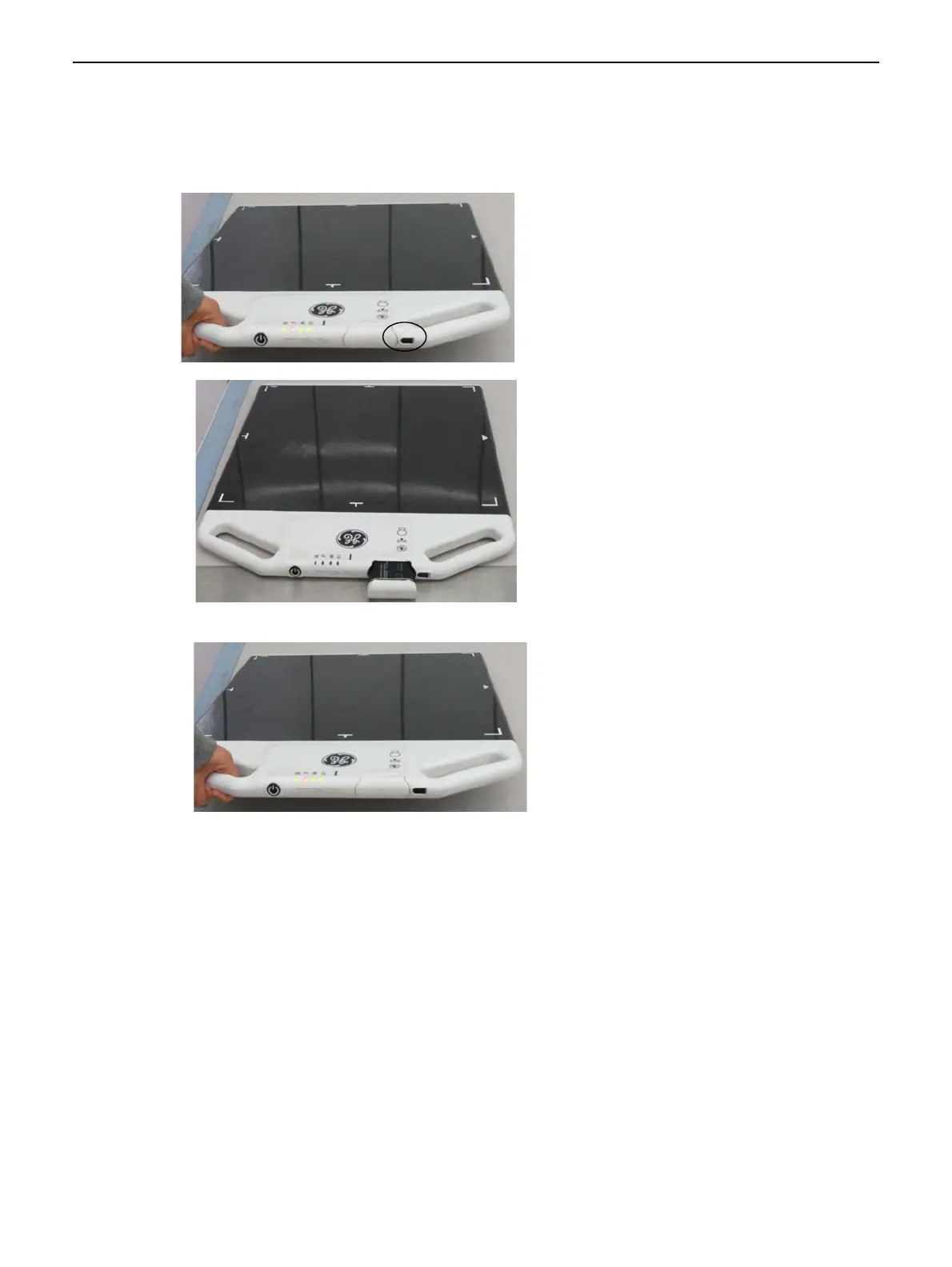

Replace the battery
Figure 7-10 Replace the battery
Battery Charging
Charging of the detector battery should occur when the battery indicator is less than 10% or additional
battery charge is necessary for patient imaging.
Note: The battery will also charge while inserted in the detector tray and the tray is completely closed.
Desktop Battery Charger
The desktop battery charger will hold up to two batteries. The first battery inserted will be charged first.
Charging is indicated by a flashing green LED light. The second battery will begin to charge when the first
one is completed.
1. Slide switch to the right.
2. Remove the battery.
3. Insert a charged battery.
