Chapter 7: Digital Detector
5495975-1EN
Rev.9
7-17
© 2013-2017 Gen
eral Electric
Company. All rights reserved.
The various states of the Ind
icat

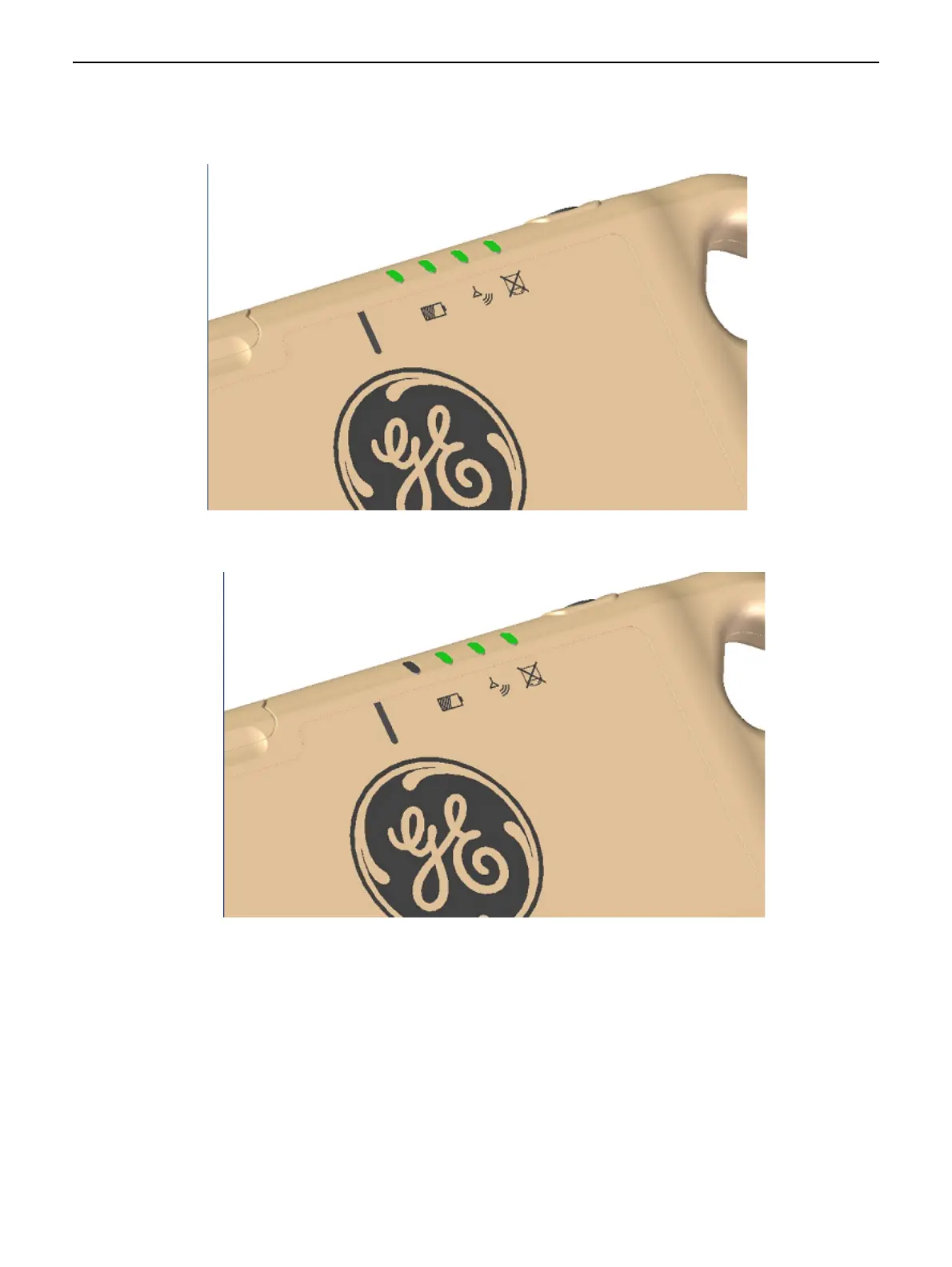

or LED’s are shown in the illustrations below
.
Figure 7-20
Batt
er
y no less than 50% remaining; Wireless link connecte
d; Detect
or ready
Figure 7-21
Batt
ery remaining between 25% and 49% ; Wi
reless
l
ink connect
ed; Dete
ctor ready
128
130
