Brightness Lightens or darkens the selected image.
 Move the slider right for a lighter image.
 Move the slider left for a darker image.
Invert Reverses light and dark areas of the selected image.
Windowing Applies windowing to the selected image.
Available options are:
 Normal - image as acquired
 Hard - adjusts the image towards black and white
 Soft - adjusts the image towards gray
Vertical Flip Flips the selected image 180 degrees on the horizontal axis; that
is, switches top for bottom.
Horizontal Flip Flips the selected image 180 degrees on the vertical axis; that is,
switches left for right.
Rotate Left Rotates the selected image counter-clockwise in 90 degree
increments.
Rotate Right Rotates the selected image clockwise in 90 degree increments.
Free Rotation Rotates the selected image both clockwise and counter-
clockwise. The range is -180° to 180°.
 Click the end buttons to rotate the image in 0.1 degree incre-
ments.
 Click and drag the slider to spin the image.
 Move the slider right to rotate the image clockwise.
 Move the slider left to rotate the image counter-clockwise.

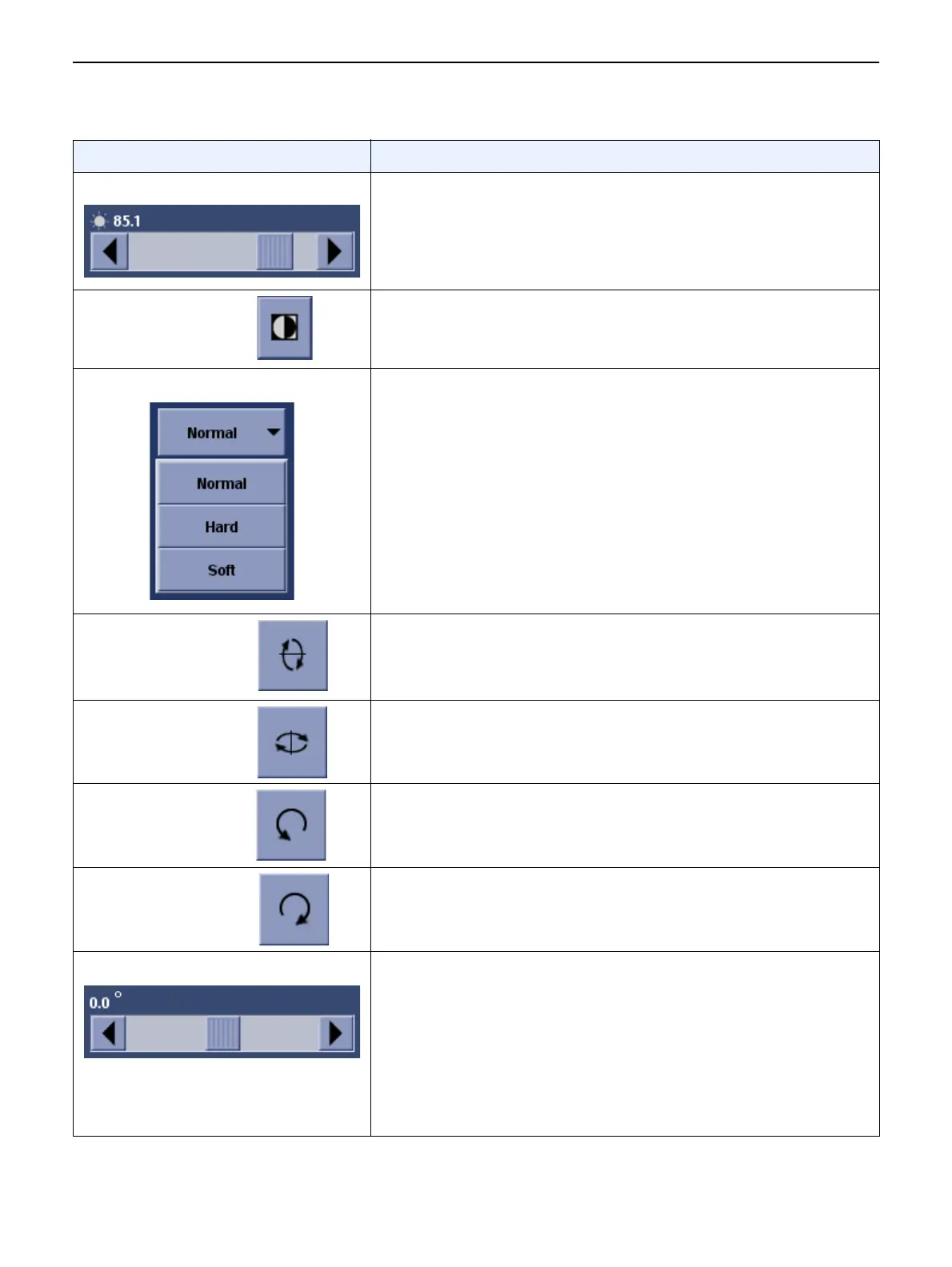

Table 11-3 Image Display Tools descriptions
