1. Phased Array Operation—Keypad, Menus, and Displays
Page 12 PHASOR XS Operating Manual
1.5 Display Screen Features (Phased
Array)
The instrument’s display screen is designed to be easy
to interpret. In
Figure 1-4 you’ll find an example of a
display configuration. This specific display includes an
active A-Scan and Sector Scan combination, the FILES
menu bar, and FILENAME submenu. Refer to this figure
for an explanation of those screen features you’ll most
often encounter. Pressing and holding
allows you to
modify the displayed view to include A-Scans, Sector or
Linear Scans, or a combination of these.
Definition of Display Icons
There are several graphical features (icons) which appear
in the display screen’s for various reasons.

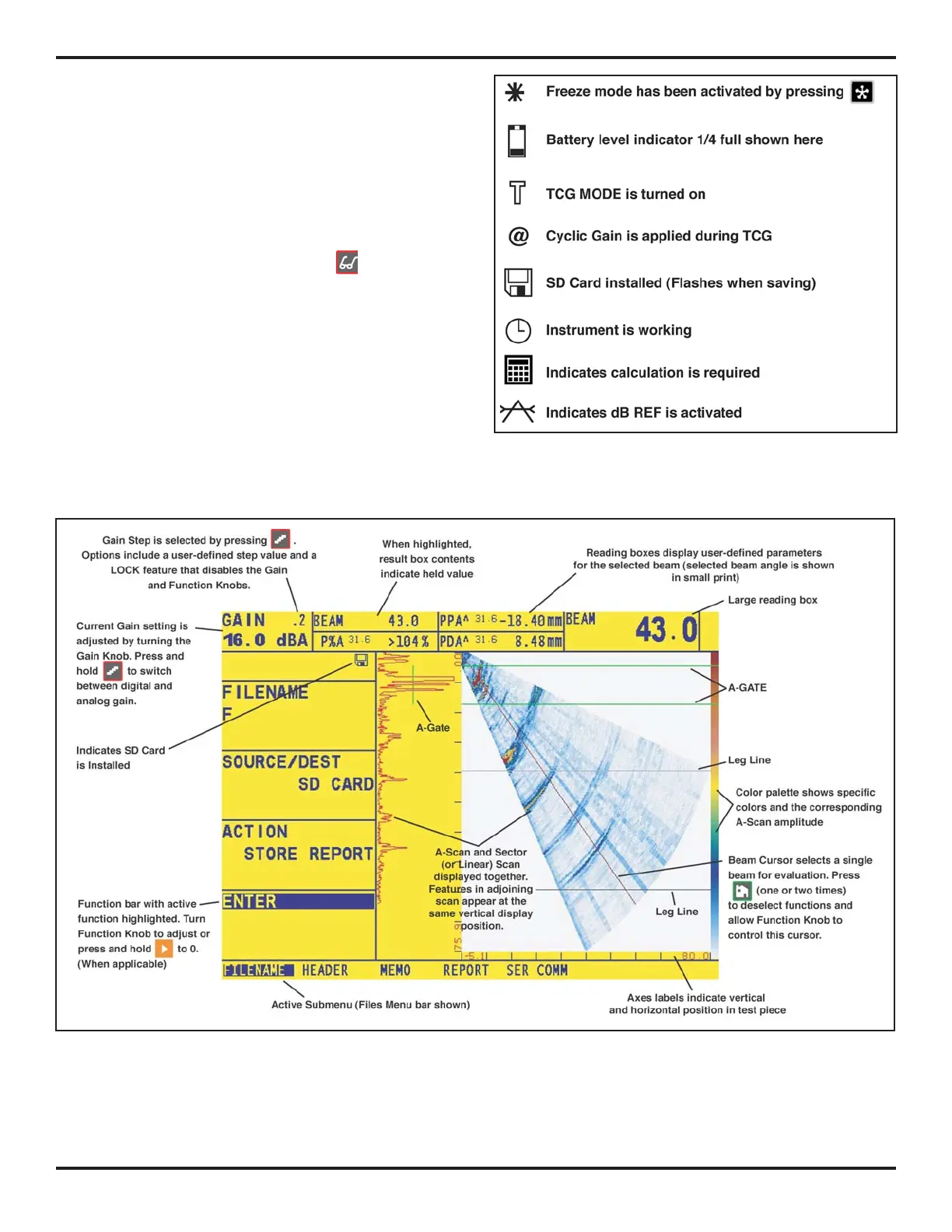

Figure 1-5
includes several of these icons along with an explanation
of their significance.
FIGURE 1-5—These icons appear on the display at
various times.
FIGURE 1-4—Combined A-Scan and Sector Scan views are shown here. Note that alternative views (showing either A
or Sector or Linear Scans) are available when operating in Phased Array mode.
