Chapter 3 - Setup Instructions
3-45
8.)
Select
Add a network, wireless or Bluetoo
t
h printer
.
9.)
Select your printer an
d click on
Next
.
10.)
You have successfully added the printer.Click
Next
.

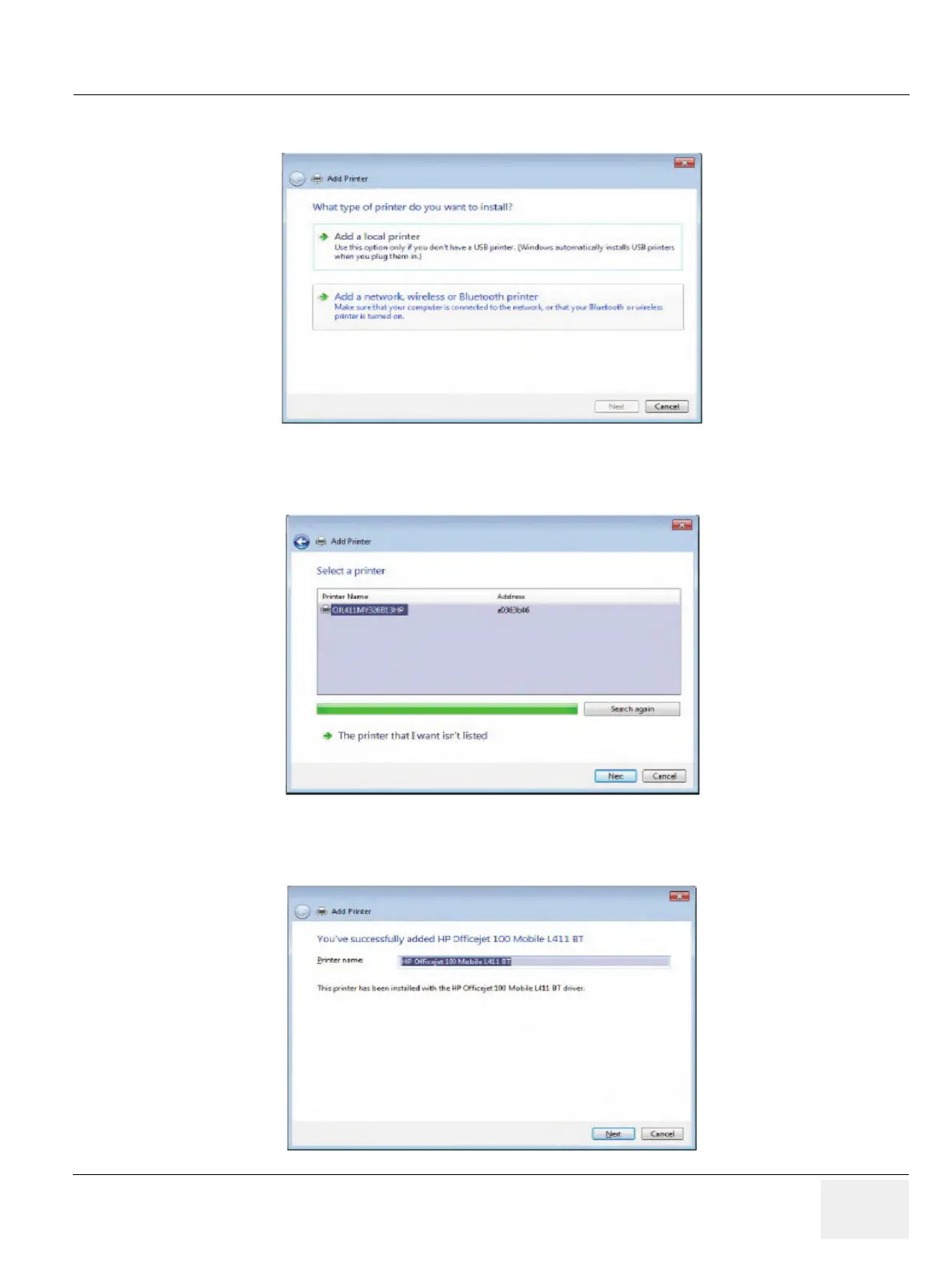

Figure 3-42 add Blueto
oth printer
Figure 3-43 select printer
Figure 3-44 successf
ully added printer
112
114
