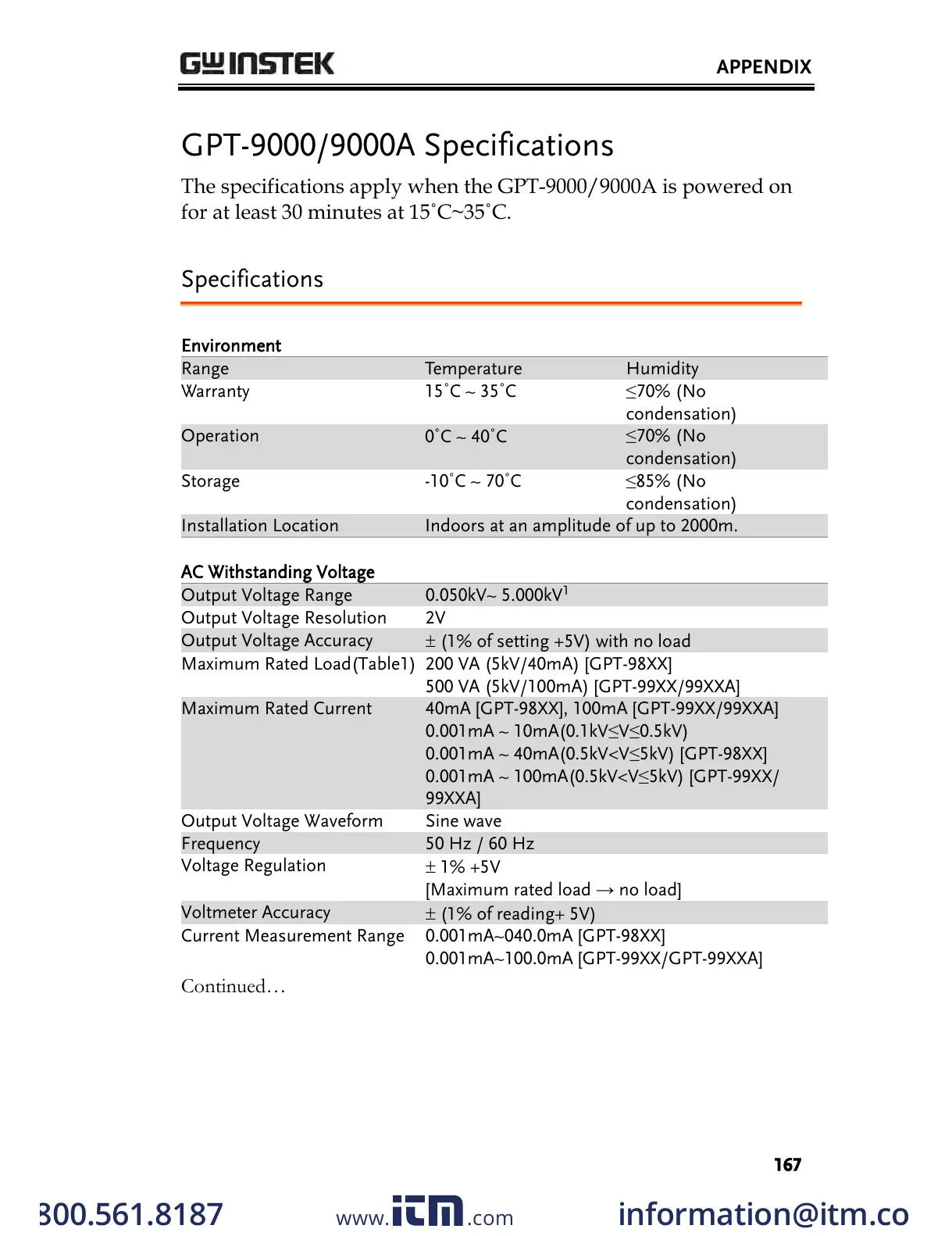

GPT-9000/9000A Specifications
The specifications apply when the GPT-9000/9000A is powered on
for at least 30 minutes at 15˚C~35˚C.
Specifications
Environment
Range
Temperature
Humidity
Warranty
15˚C ~ 35˚C
≤70% (No
condensation)
Operation
0˚C ~ 40˚C
≤70% (No
condensation)
Storage
-10˚C ~ 70˚C
≤85% (No
condensation)
Installation Location
Indoors at an amplitude of up to 2000m.
AC Withstanding Voltage
Output Voltage Range
0.050kV~ 5.000kV
1
Output Voltage Resolution
2V
Output Voltage Accuracy
 (1% of setting +5V) with no load
Maximum Rated Load(Table1)
200 VA (5kV/40mA) [GPT-98XX]
500 VA (5kV/100mA) [GPT-99XX/99XXA]
Maximum Rated Current
40mA [GPT-98XX], 100mA [GPT-99XX/99XXA]
0.001mA ~ 10mA(0.1kV≤V≤0.5kV)
0.001mA ~ 40mA(0.5kV<V≤5kV) [GPT-98XX]
0.001mA ~ 100mA(0.5kV<V≤5kV) [GPT-99XX/
99XXA]
Output Voltage Waveform
Sine wave
Frequency
50 Hz / 60 Hz
Voltage Regulation
 1% +5V
[Maximum rated load → no load]
Voltmeter Accuracy
 (1% of reading+ 5V)
Current Measurement Range
0.001mA~040.0mA [GPT-98XX]
0.001mA~100.0mA [GPT-99XX/GPT-99XXA]
Continued…
