OPERATION
41

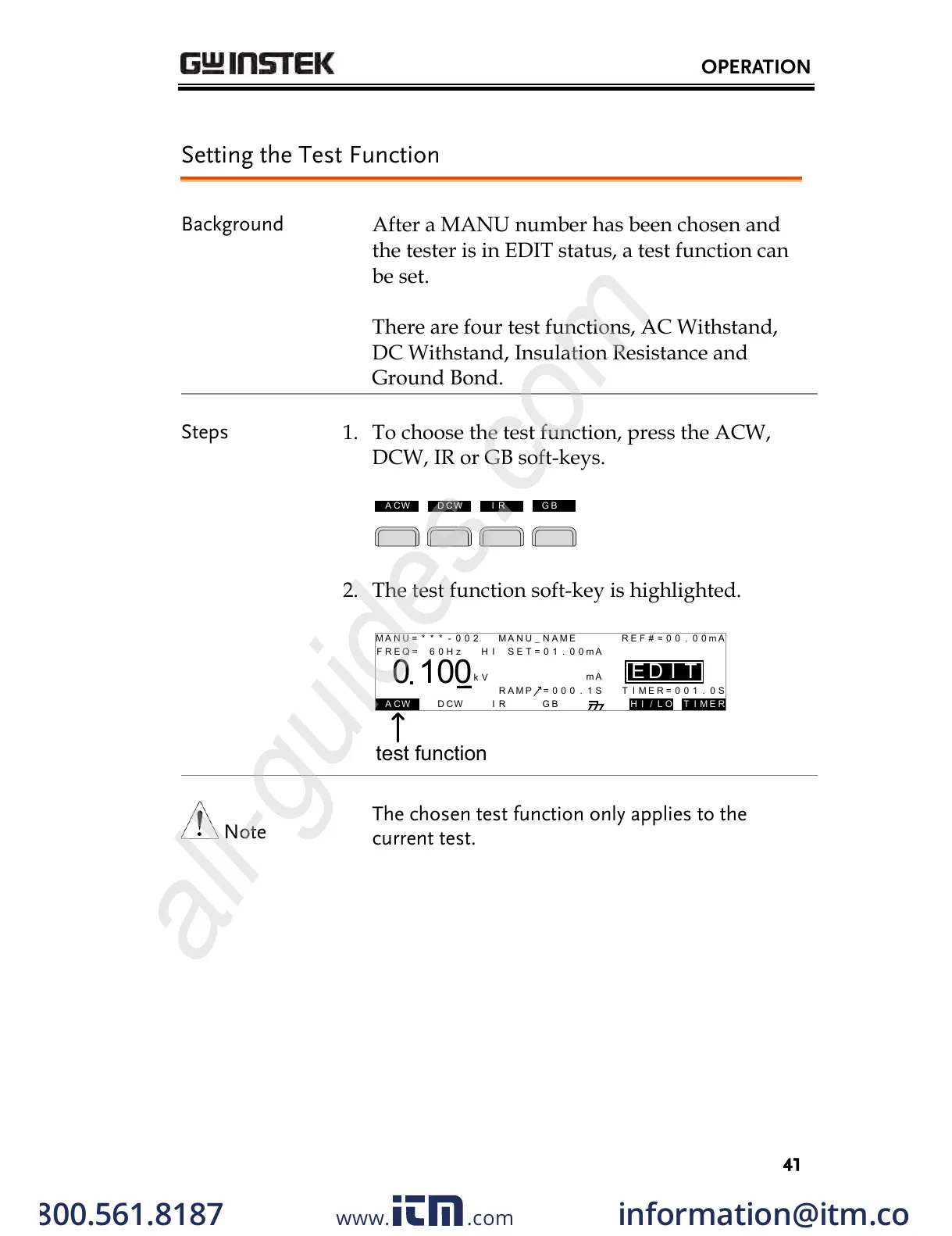

Setting the Test Function
After a MANU number has been chosen and
the tester is in EDIT status, a test function can
be set.
There are four test functions, AC Withstand,
DC Withstand, Insulation Resistance and
Ground Bond.
1. To choose the test function, press the ACW,
DCW, IR or GB soft-keys.
2. The test function soft-key is highlighted.
I R G B A C W D CW I / LH O I M ET R
E
F R E Q = 0 H z 6
0
100
k V
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
T
2M A N U = * * * - 0 0
test function
m A
The chosen test function only applies to the
current test.
