GW Instek GPT-9000 series User Manual

GPT-9000/9000A Series User Manual
64

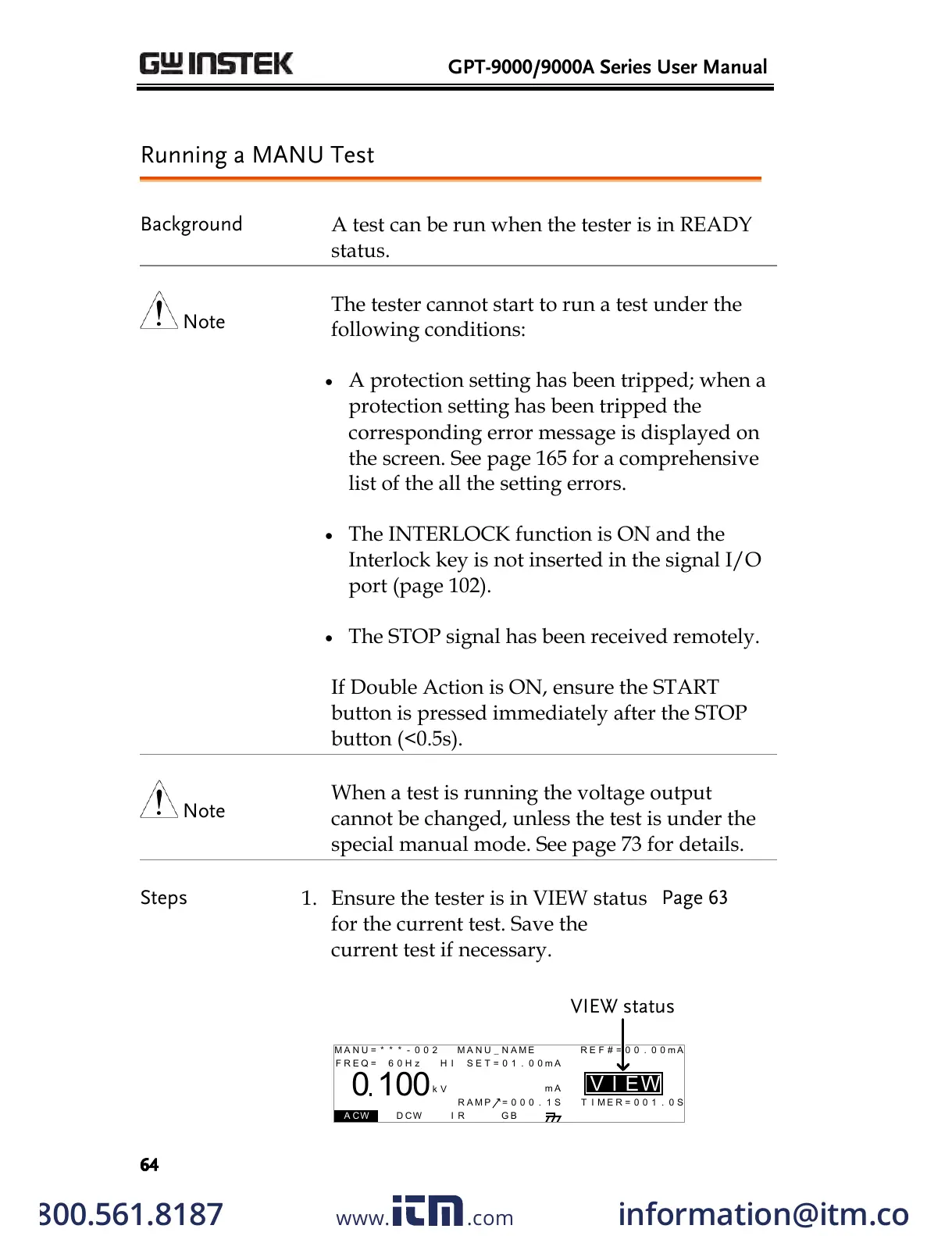

Running a MANU Test
Background
A test can be run when the tester is in READY
status.
Note
The tester cannot start to run a test under the
following conditions:
 A protection setting has been tripped; when a
protection setting has been tripped the
corresponding error message is displayed on
the screen. See page 165 for a comprehensive
list of the all the setting errors.
 The INTERLOCK function is ON and the
Interlock key is not inserted in the signal I/O
port (page 102).
 The STOP signal has been received remotely.
If Double Action is ON, ensure the START
button is pressed immediately after the STOP
button (<0.5s).
Note
When a test is running the voltage output
cannot be changed, unless the test is under the
special manual mode. See page 73 for details.
Steps
1. Ensure the tester is in VIEW status
for the current test. Save the
current test if necessary.
Page 63
I R G B
m A
A CW D CW
E
F R E Q = 0 H z 6
0 100
k V
EIV
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
W
VIEW status
MM A UN N A_2M A N U = * * * - 0 0
