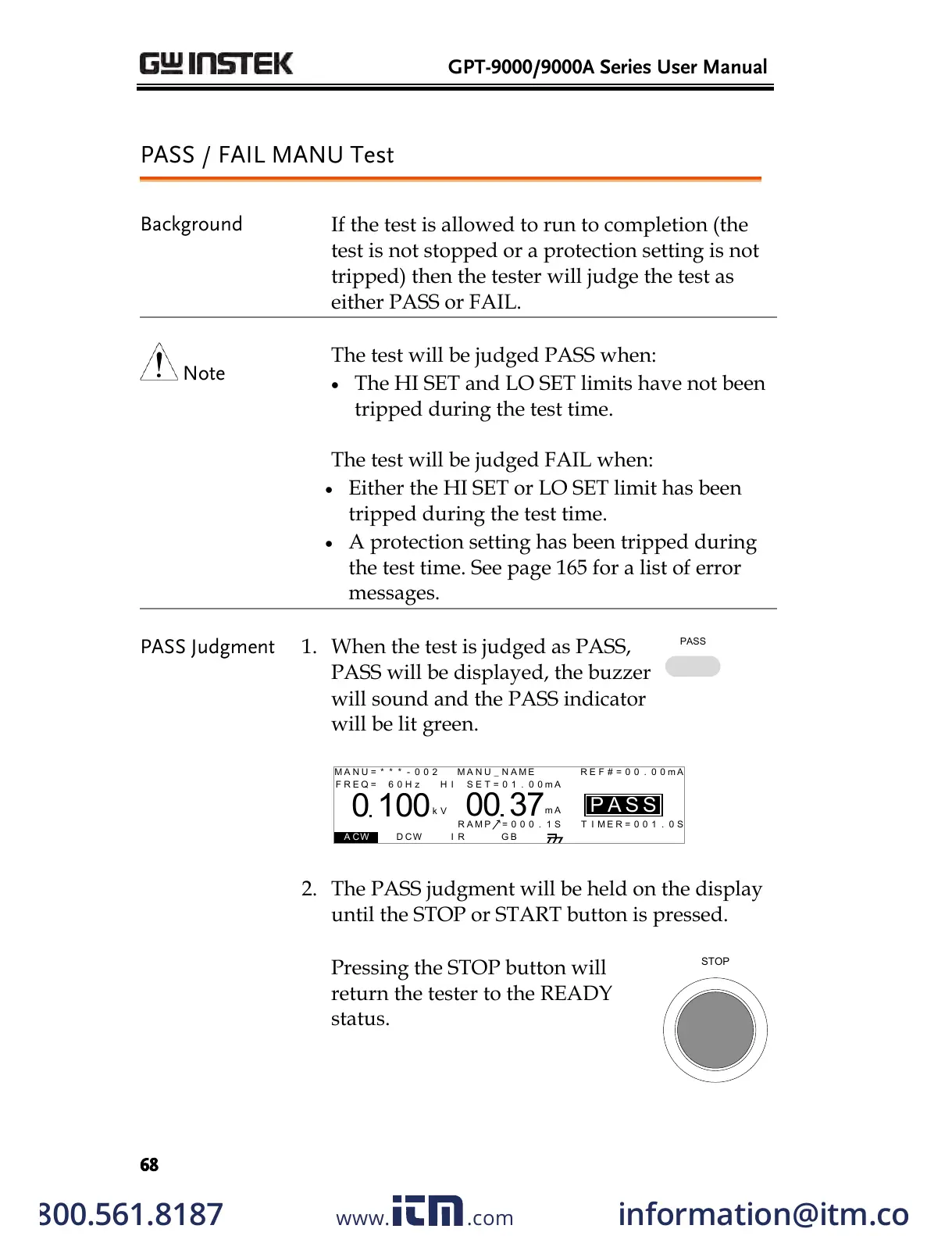

PASS / FAIL MANU Test
Background
If the test is allowed to run to completion (the
test is not stopped or a protection setting is not
tripped) then the tester will judge the test as
either PASS or FAIL.
Note
The test will be judged PASS when:
 The HI SET and LO SET limits have not been
tripped during the test time.
The test will be judged FAIL when:
 Either the HI SET or LO SET limit has been
tripped during the test time.
 A protection setting has been tripped during
the test time. See page 165 for a list of error
messages.
PASS Judgment
1. When the test is judged as PASS,
PASS will be displayed, the buzzer
will sound and the PASS indicator
will be lit green.
PASS
I R G B A CW D CW
E
F R E Q = 0 H z 6
0 100
k V
SAP
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
MM A UN N A_2M A N U = * * * - 0 0
S
m A
00 37
2. The PASS judgment will be held on the display
until the STOP or START button is pressed.
Pressing the STOP button will
return the tester to the READY
status.
STOP
