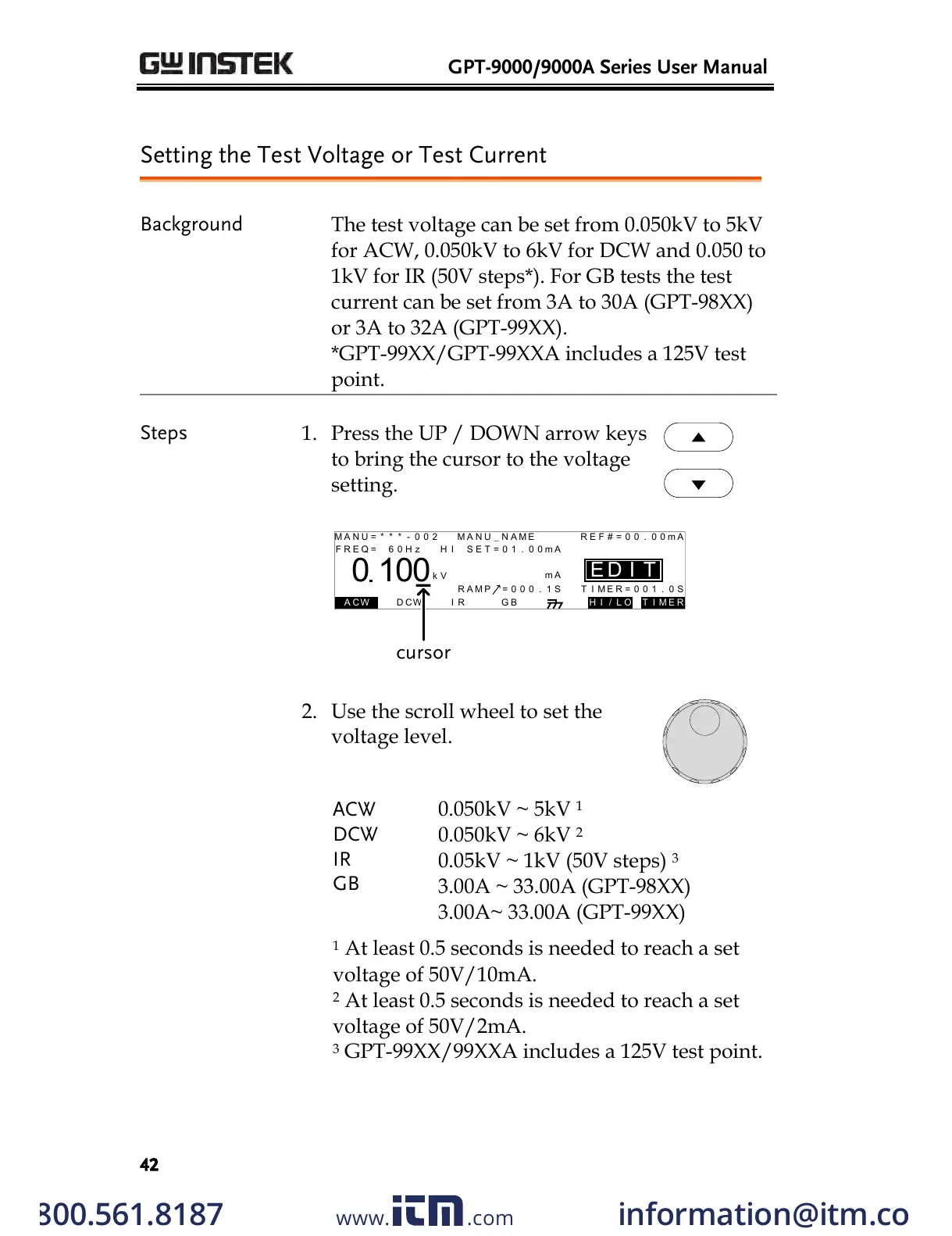

Setting the Test Voltage or Test Current
Background
The test voltage can be set from 0.050kV to 5kV
for ACW, 0.050kV to 6kV for DCW and 0.050 to
1kV for IR (50V steps*). For GB tests the test
current can be set from 3A to 30A (GPT-98XX)
or 3A to 32A (GPT-99XX).
*GPT-99XX/GPT-99XXA includes a 125V test
point.
Steps
1. Press the UP / DOWN arrow keys
to bring the cursor to the voltage
setting.
I R G B A CW D CW I / LH O I M ET R
E
F R E Q = 0 H z 6
0 100
k V
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
T
2M A N U = * * * - 0 0
cursor
m A
2. Use the scroll wheel to set the
voltage level.
ACW
DCW
IR
GB
0.050kV ~ 5kV
1
0.050kV ~ 6kV
2
0.05kV ~ 1kV (50V steps)
3
3.00A ~ 33.00A (GPT-98XX)
3.00A~ 33.00A (GPT-99XX)
1
At least 0.5 seconds is needed to reach a set
voltage of 50V/10mA.
2
At least 0.5 seconds is needed to reach a set
voltage of 50V/2mA.
3
GPT-99XX/99XXA includes a 125V test point.
