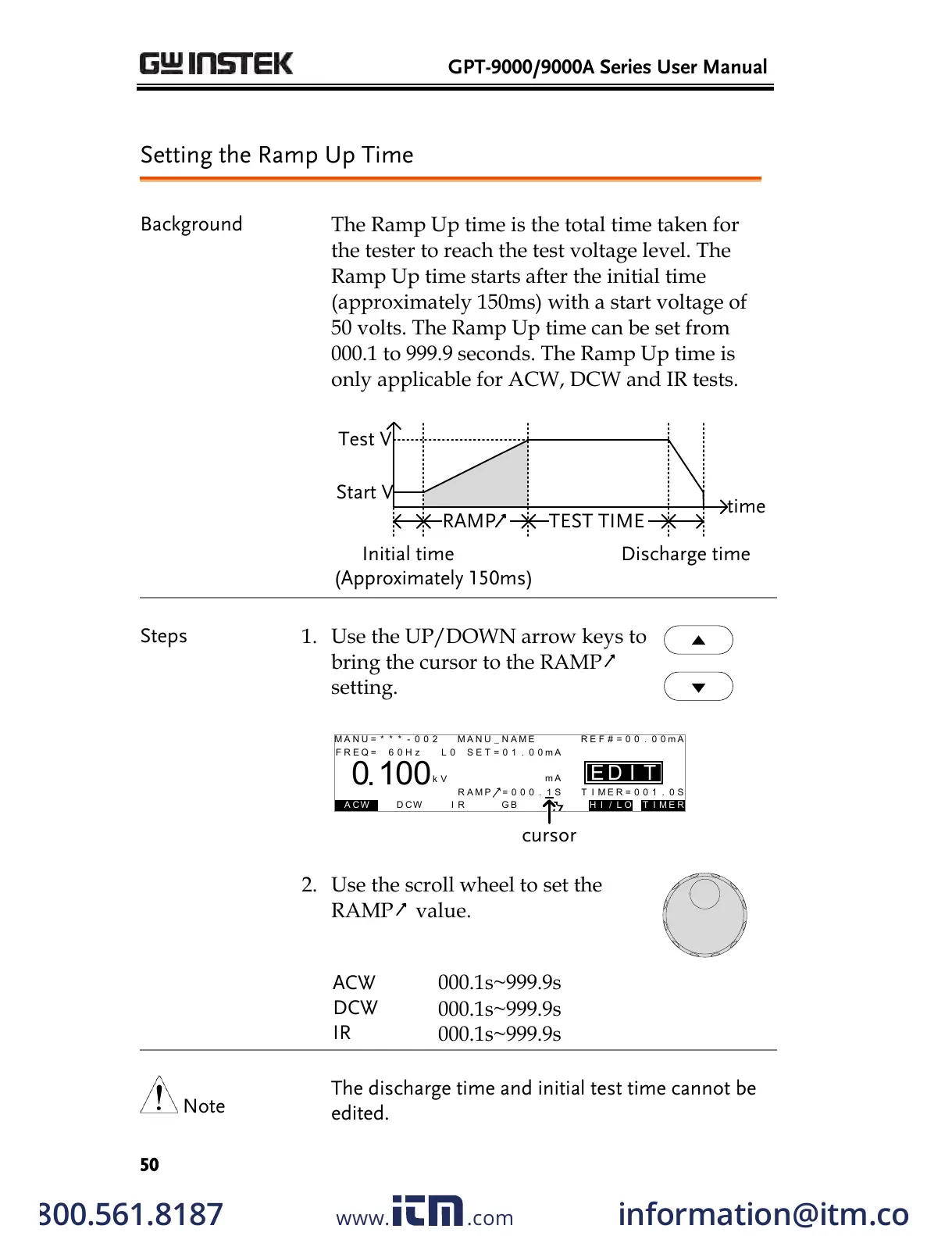

Setting the Ramp Up Time
Background
The Ramp Up time is the total time taken for
the tester to reach the test voltage level. The
Ramp Up time starts after the initial time
(approximately 150ms) with a start voltage of
50 volts. The Ramp Up time can be set from
000.1 to 999.9 seconds. The Ramp Up time is
only applicable for ACW, DCW and IR tests.
Discharge time
Test V
time
Start V
Initial time
TEST TIMERAMP
(Approximately 150ms)
Steps
1. Use the UP/DOWN arrow keys to
bring the cursor to the RAMP
setting.
I R G B
m A
A CW D CW I / LH O I M ET R
E
F R E Q = 0 H z 6
0 100
k V
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m A0L ES = 0T
0 0 . 1 S0A M P =R
T
2M A N U = * * * - 0 0
cursor
2. Use the scroll wheel to set the
RAMP value.
ACW
DCW
IR
000.1s~999.9s
000.1s~999.9s
000.1s~999.9s
Note
The discharge time and initial test time cannot be
edited.
