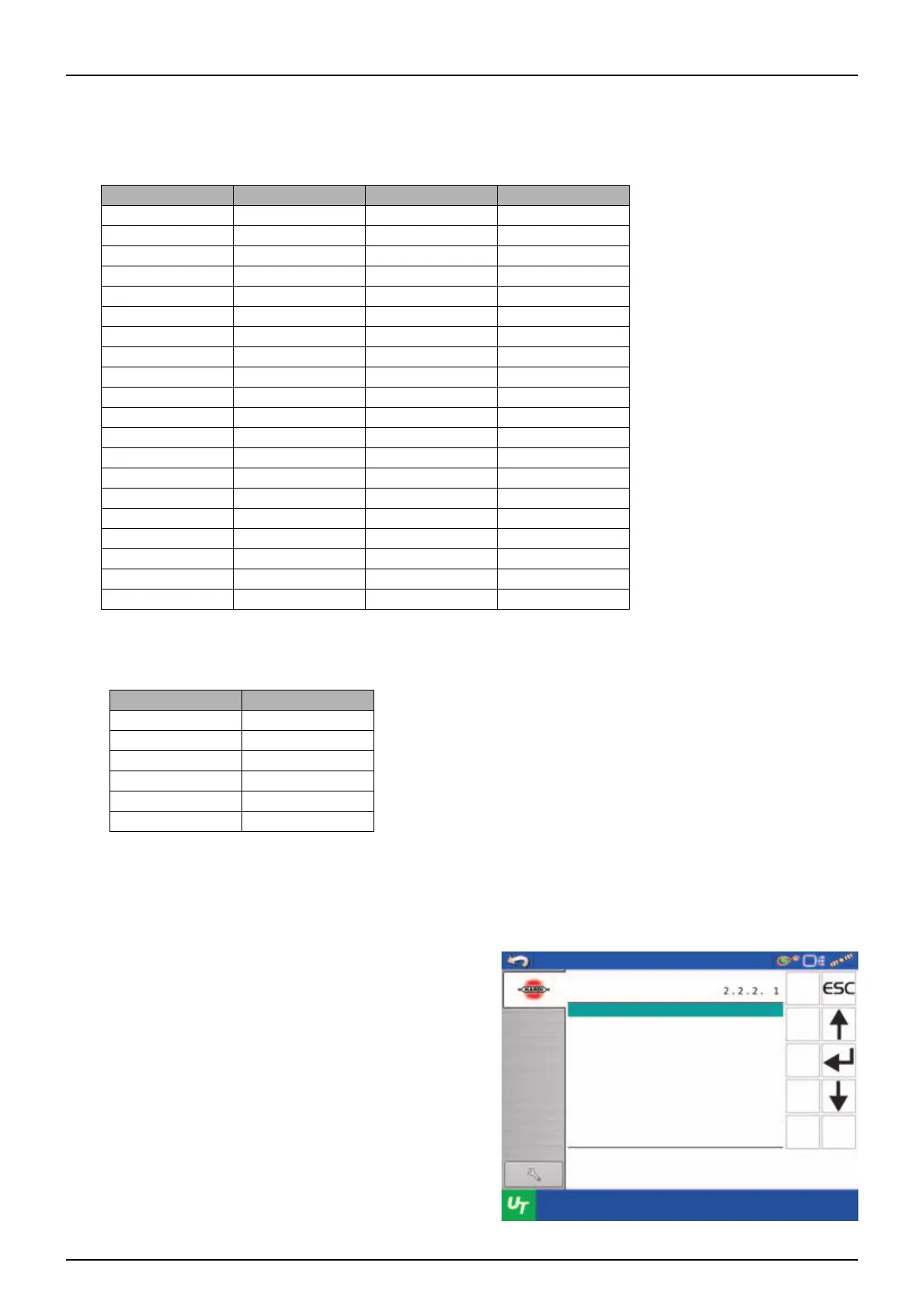

4 - System Setup
79
The following nozzle combinations can be used, but may cause a poor spray job:
μ
ATTENTION! A consequence of selecting one of the below nozzle combinations are risk of dripping nozzles at low
pressure and spray drift at high pressure.
μ
ATTENTION! Do NOT use the below nozzle combinations when in automatic. Doing so may cause AutoSelect not to
work correctly! However, these nozzle combinations can be used with manual mode.
3. If not already fitted, physically fit the nozzles to the boom lines.
μ
ATTENTION! It is of great importance to fit the smallest nozzle to boom line A (the front boom line).
4. In the controller go to menu 2.3.2 Dual line and enter the
submenus to fill in values from the schematic above:
• Menu 2.3.2.1 Lower pressure level
• Menu 2.3.2.2 Upper pressure level
Line A Line B Upper Pressure Level Lower Pressure Level
0075 -Pink 015 - Green 6.1 1.3
01 - Orange 02 - Yellow 6.1 1.3
01 - Orange 025 - Lilac 8.2 1.1
015 - Green 02 - Yellow 5.1 1.4
015 - Green 03 - Blue 6.1 1.3
02 - Yellow 025 - Lilac 5.3 1.4
02 - Yellow 04 - Red 6.1 1.3
02 - Yellow 05 - Brown 8.2 1.1
025 - Lilac 03 - Blue 5.5 1.4
025 - Lilac 05 - Brown 6.1 1.3
025 - Lilac 06 - Grey 7.8 1.1
03 - Blue 04 - Red 5.1 1.4
03 - Blue 06 - Grey 6.1 1.3
04 - Red 05 - Brown 5.3 1.4
04 - Red 08 - White 6.1 1.3
04 - Red 10 - Light Blue 8.2 1.1
05 - Brown 06 - Grey 5.5 1.4
05 - Brown 10 - Light Blue 6.1 1.3
06 - Grey 08 - White 5.1 1.4
06 - Grey 15 - Light Green 8.2 1.1
Line A Line B
0075 -Pink 02 - Yellow
0075 -Pink 025 - Lilac
01 - Orange 03 - Blue
015 - Green 04 - Red
03 - Blue 08 - White
05 - Brown 15 - Light Green
Dual line
Menu
Lower pressure level
Upper pressure level
Key in pressure level to switch
Dual line to smaller nozzles
To Next Page
