Page 9
CDi DriveCore Series Operation Manual
Front Panel Menus & Navigation Overview
The Home Screen

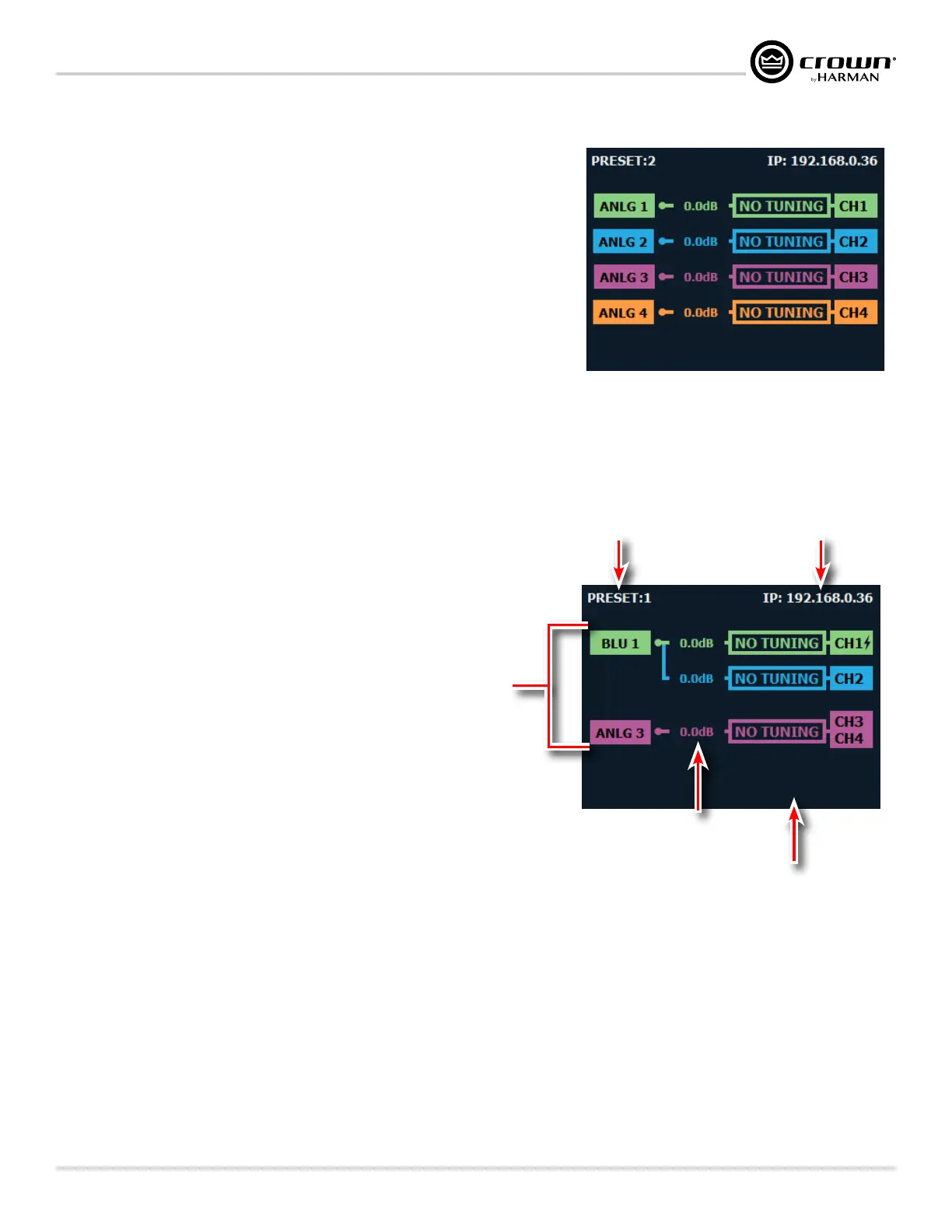

The Home screen (shown in Figure 8) is the first screen displayed in the CDi DriveCore's
front panel display once the amplifier has completed the boot sequence.
From the Home screen, the ENCODER can be turned to adjust system volume or pressed
and held to access the Diagnostics screen, the CHANNEL SELECT buttons can be
pressed (or held) to adjust individual channel volume using the ENCODER, or the MENU
button can be pressed to enter the Main menu to configure and view information about the
amplifier.
The Home screen shows at-a-glance amplifier configuration information, as shown in
Figure 9. Here you can see the currently loaded device preset, device IP address, CDi
DriveCore configuration, channel volume settings, and more.
NOTE: Throughout sections of this manual, some illustrations and text will refer to
channel pair 1-2 only. Note that connections and settings for channels 3-4 (available on
4-channel CDi DriveCore models) are identical. Each channel can be configured
independently in all models.
Figure 8: Home screen
Current Device Preset Device IP Address
Channel Volume Settings
Error Messages Are Displayed Here
Configuration
Figure 9: Home screen layout
