CDi DriveCore Series Operation Manual
Conguring the Amp
PEQ (Parametric EQ)
PEQ settings can be edited from the PEQ screen (see Figure 18). Input and Output PEQs
are available. The Output (post-crossover) PEQs are typically used for speaker tuning
settings, and the Input (pre-crossover) PEQs provide additional EQ filtering for the system if
required.
To edit PEQ settings manually:
1� From the Home screen, press the MENU button.
2� Select the "Configure Amplifier" option from the menu using the ENCODER.
3� Select the "Speaker Tunings/DSP" option from the menu.
4� Select the pre or post-crossover "PEQ" icon for the channel you wish to edit.
5� Use the ENCODER to navigate, make selections, and edit settings.
6� When done, select "Done" at the bottom of the screen.
Available options/parameters:
• Enable (Off, On)
Turns the PEQ on or off.
• Band (Band 1 – Band 8)
Selects the filter band for editing.
• Type
Selects the type of filter for the band. See available filter types listed below.
• Frequency (20Hz – 22kHz)
Sets the center/corner frequency of the band.
• Gain (±20dB)
Sets the amount of gain (boost/cut) applied to the band.
• Slope (3 – 15 dB/Oct)
Sets the slope rate of the band for Shelf-type filters (only visible when a Shelf filter is selected).
• Width (0�10 – 32)
Sets the width of the band for Bell-type filters, or adjusts the resonant peak for 2nd Order Lowpass/Highpass filters (only visible when one of the
aforementioned filter types is selected).
Available lter types:
• Bell
• Low Shelf
• High Shelf
• LP BW1 (Butterworth 6dB/oct lowpass filter)
• HP BW1 (Butterworth 6dB/oct highpass filter)
• LP 2nd Order (6-12dB/oct lowpass filter with variable resonant peak using the Width parameter)
• HP 2nd Order (6-12dB/oct highpass filter with variable resonant peak using the Width parameter)
• Allpass 1 (90º phase shift)
• Allpass 2 (180º phase shift)
See
"Input/Output EQ Panels" on page 43 for information on editing the PEQs in Audio Architect.

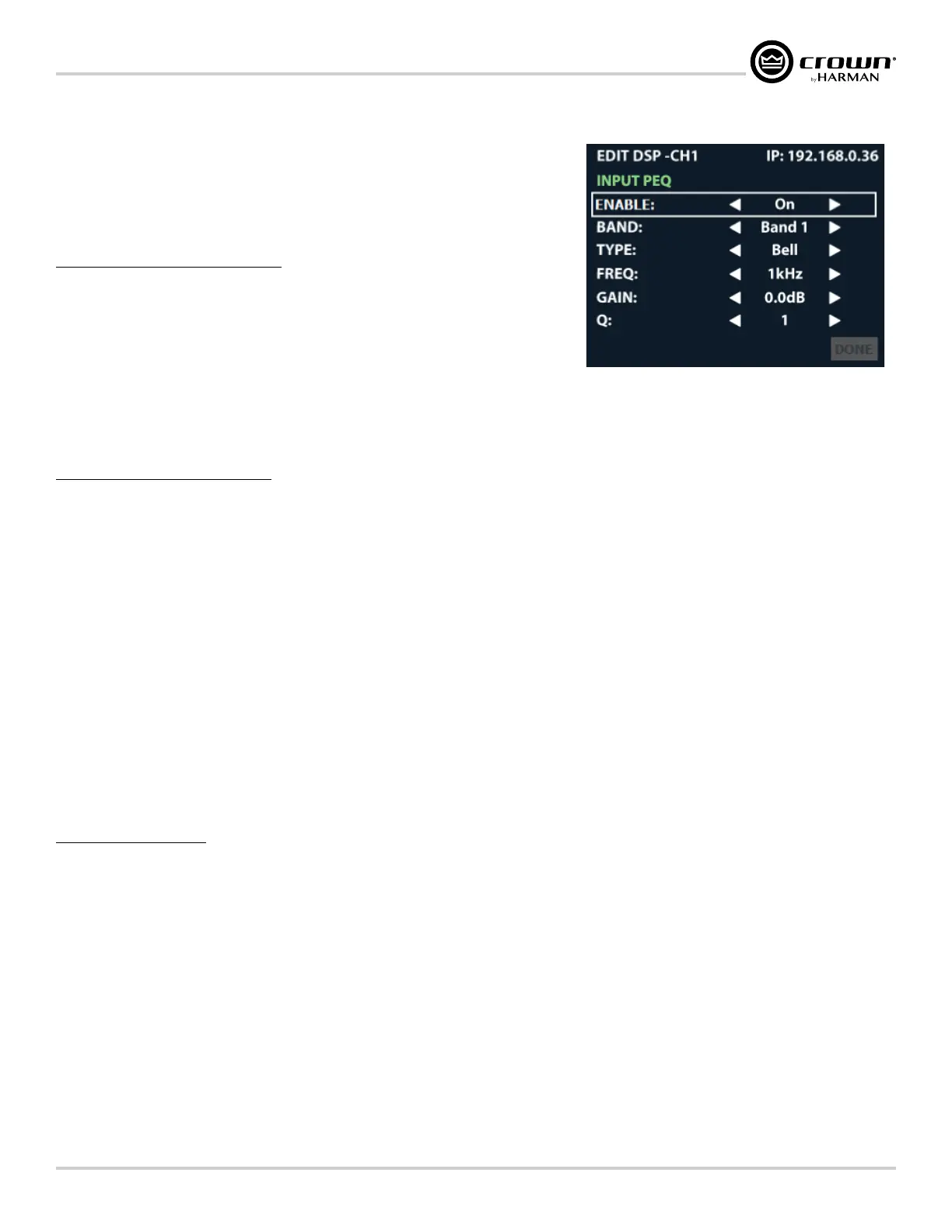

Figure 18: PEQ screen
