CDi DriveCore Series Operation Manual
Conguring the Amp
Conguring the Amp
This section of the manual describes how to configure the CDi DriveCore amplifier for your application using the front panel user interface. This includes
assigning input channels, editing internal routing and DSP settings, and configuring output mode settings. CDi DriveCore Series amplifiers can be
configured using the built-in Guided Setup or manually using the individual menu options in the Configure Amplifier menu. Configuration can also be
performed from a PC using HiQnet Audio Architect. For information on configuring the CDi DriveCore amplifiers using Audio Architect, see "Installing
Audio Architect & Conguring the Network" on page 23
.
About Input & Output Configuration
The CDi DriveCore amplifiers ship from the
factory with each output channel sourced
from its respective analog input (e.g., analog
input 1 goes to output 1, etc.), as shown in
Figure 10.

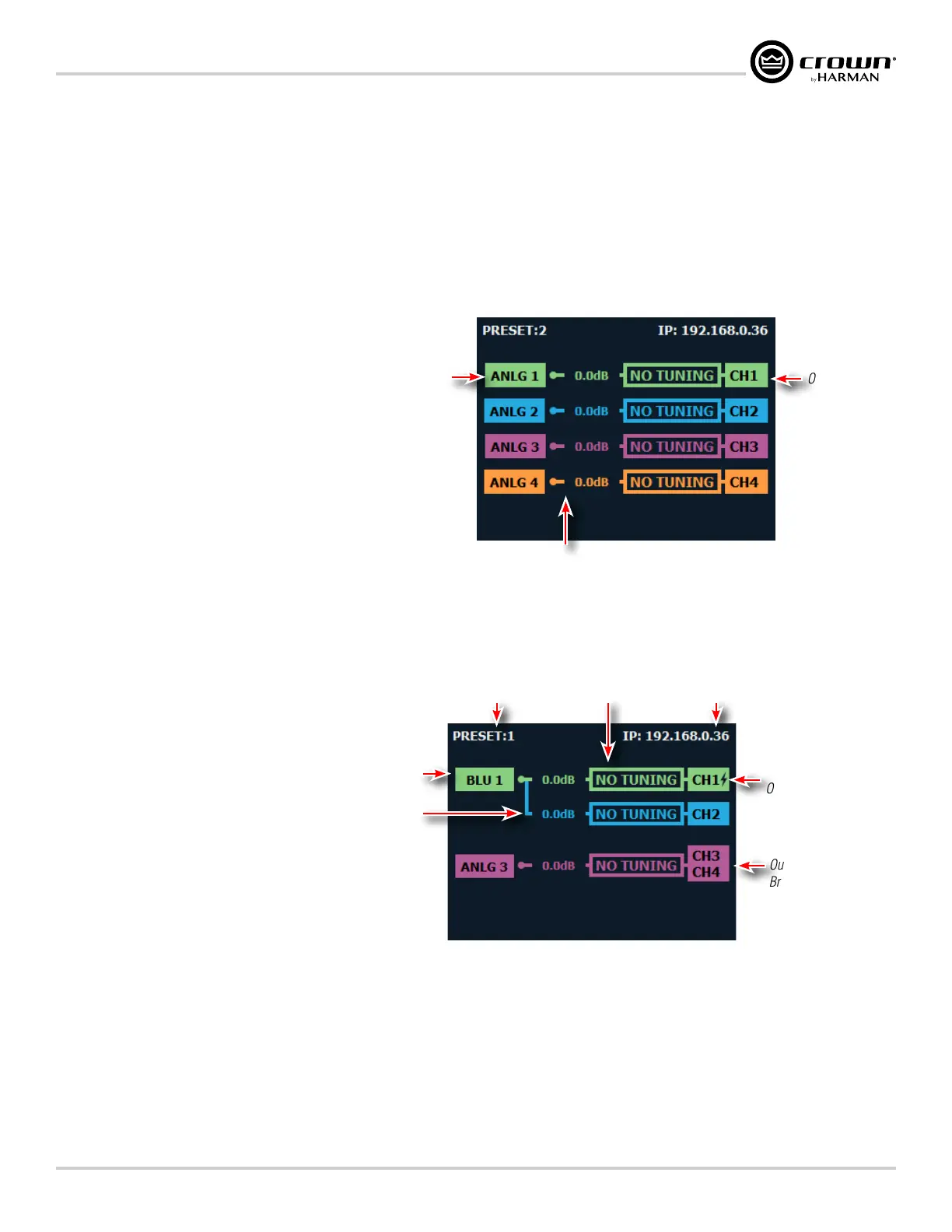

When viewing the Home screen, signal flow
is represented by lines that traverse from the
input source (leftmost box) to the channel
output (rightmost box).
Additional amplifier configuration information
can be seen at-a-glance on the Home screen,
as shown in
Figure 11.
Analog 1 Source Input
Channel Assignment
Signal Routing
Output Channel 1
Figure 10: Default CDi DriveCore configuration
Current Device Preset
Input Channel
Assignment
Signal Wiring
("Y'ed" inputs shown)
Lightning Bolt Indicates
Output Configured for
High Z Operation
Ganged Block Indicates
Output is Configured for
Bridge Mono Operation
IP Address
No Speaker
Tuning/DSP Used
Figure 11: CDi DriveCore configuration example viewed from the front panel Home screen
