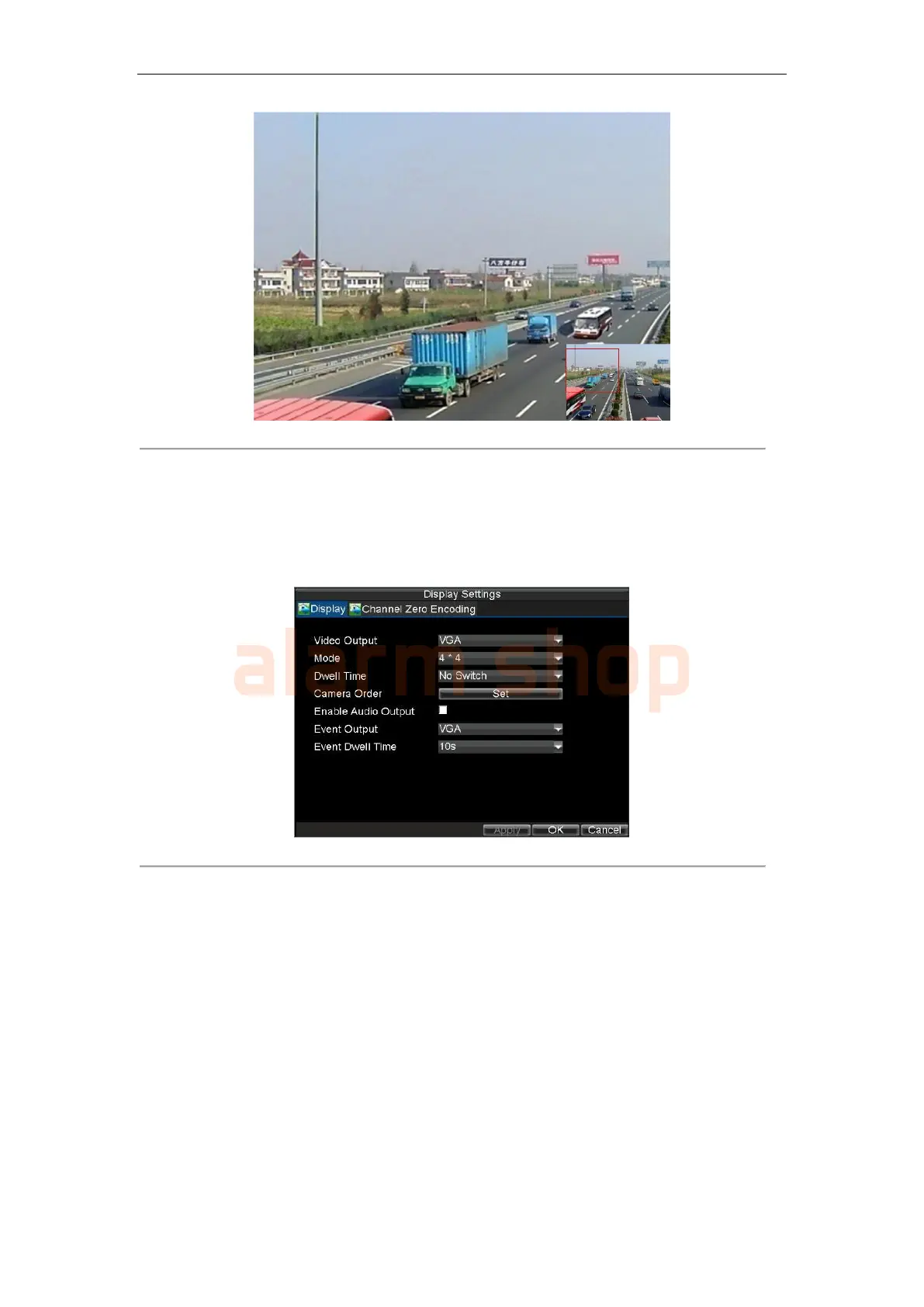

Figure 3. Digital Zoom
Configuring Live View Display
Click Menu >Settings >Display to access the Live View display settings:
Figure 4. Display Settings
Configure the following settings for Live View Display:
• Video Output: Select the video output mode to VGA or Main CVBS.
• Mode: Set the live view display mode to be 1×1, 2×2, 3×3, or 4×4.
• Dwell Time: Set the dwell time for camera switching when Start Auto-switch is selected in Live
View.
• Camera Order: Set the camera order for display in the selected mode (See Setting Camera
Order).
• Enable Audio Output: Enable/disable audio output for the selected video output.
• Event Output: Select the port for event output to VGA or Main CVBS.
• Event Dwell Time: Set the dwell time for event video display.
Notes:
1. You can select the Main Monitor or Aux Monitor from the right-click menu in live view mode.
2. DS-7200-ST will automatically detect whether this is VGA display connected or not.
3. When a VGA display is connected to DVR, the VGA will be used as the main video output, and all menu
operations are accessible by mouse, front panel or IR remote; the VIDEO OUT1 will be used as the spot
video output which only allows user to access the live view of the camera according to the configured CVBS
